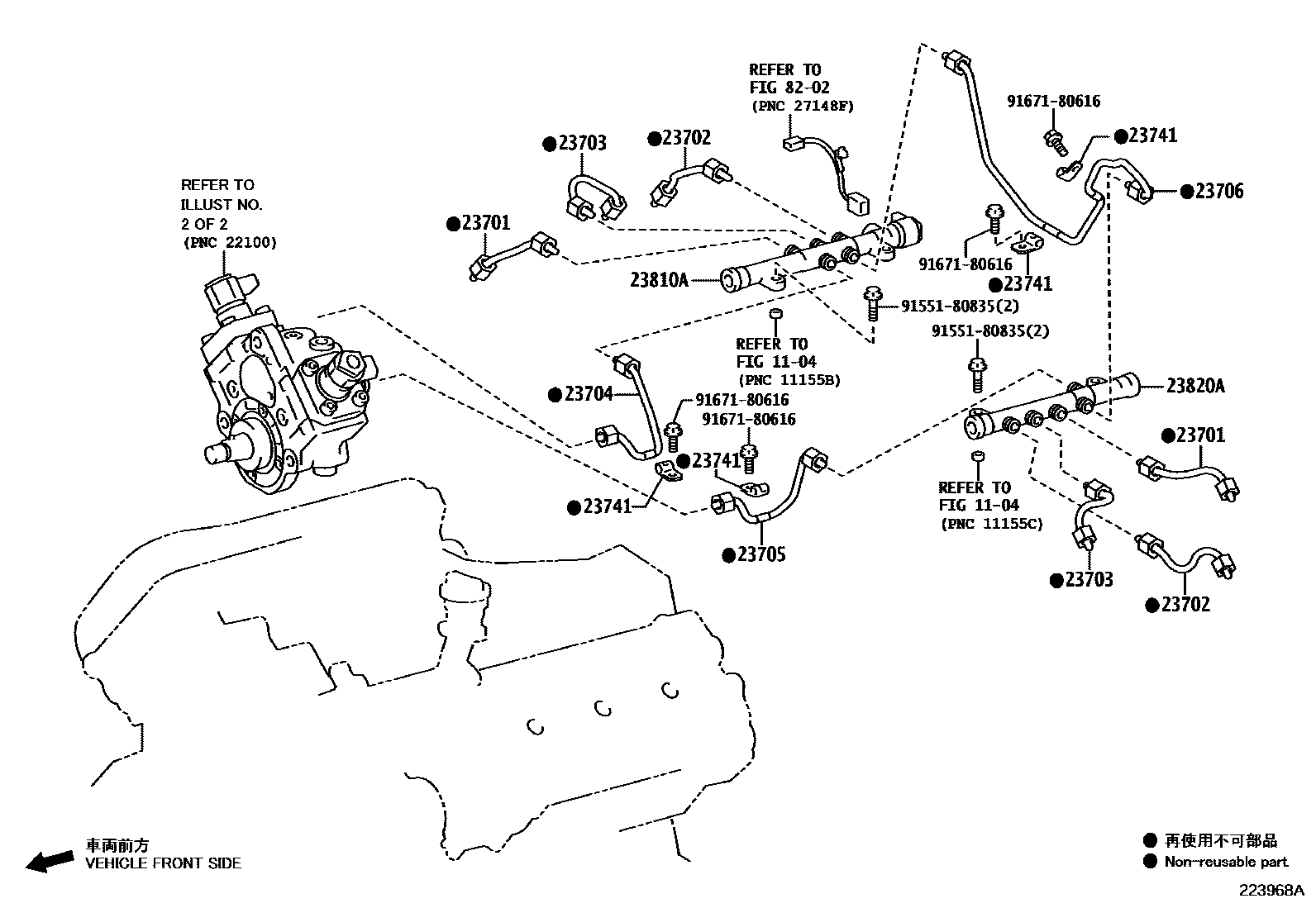

INJECTION PUMP ASSEMBLY
1104CYLINDER HEAD
23701PIPE SUB-ASSY, INJECTION, NO.1
main23701-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
23702PIPE SUB-ASSY, INJECTION, NO.2
main23702-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
23703PIPE SUB-ASSY, INJECTION, NO.3
main23703-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
23704PIPE SUB-ASSY, INJECTION, NO.4
main23704-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
23705PIPE SUB-ASSY, INJECTION, NO.5
main23705-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
23706PIPE SUB-ASSY, INJECTION, NO.6
main23706-52020iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
23741CLAMP, INJECTION PIPE, NO.1
main23741-30010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
23810ARAIL ASSY, COMMON
main23810-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
23820ARAIL ASSY, COMMON
main23820-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
8202WIRING & CLAMP
9155180835
main91551-80835
9167180616
main91671-80616
13 parts on this diagram · 2 diagrams in section
