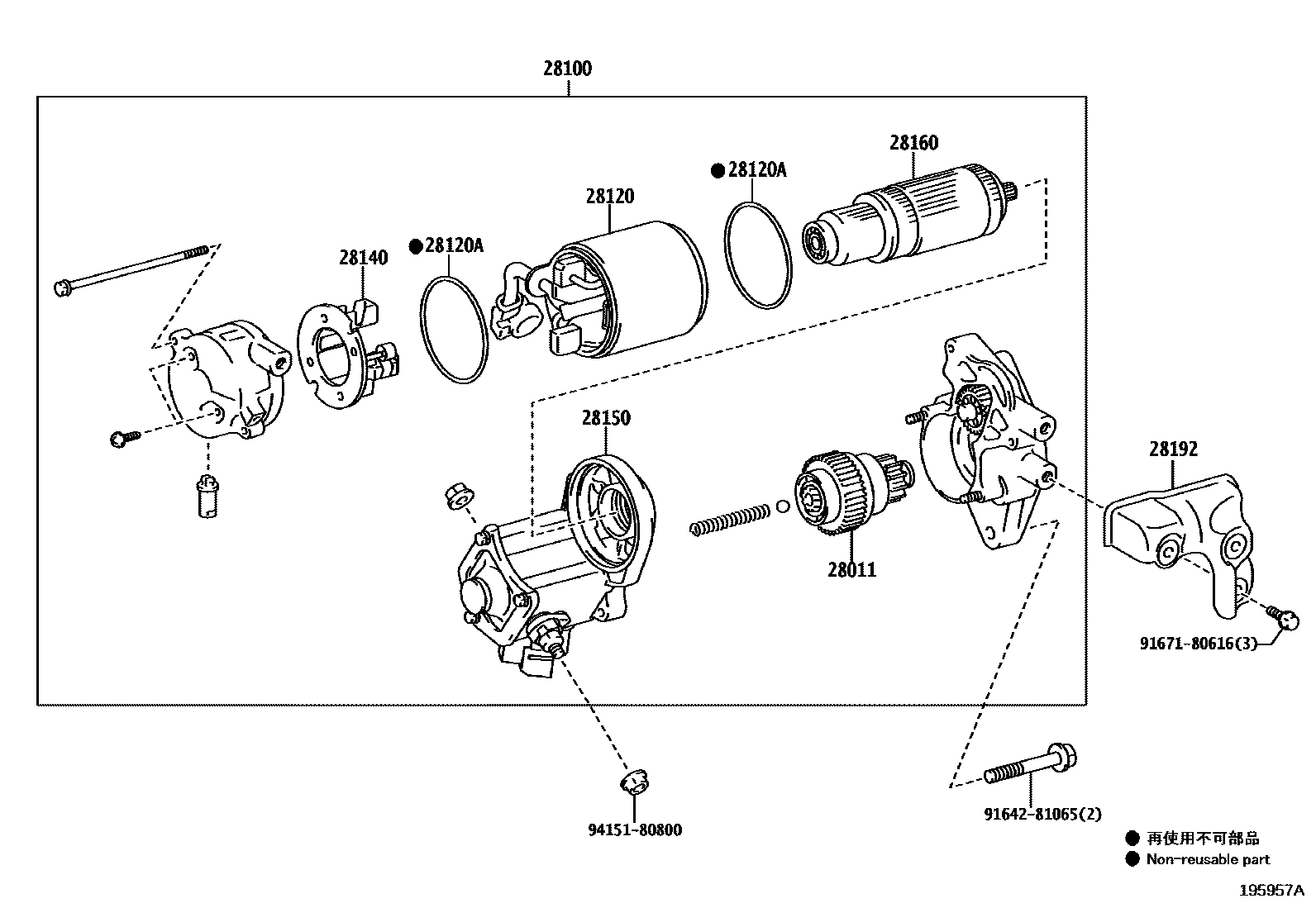

STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
12V 1.4KW
main28100-52011supersedes 28100-52021iF33AFTV..FJA300..(A,S,V,Z)..EUR; F33AFTV..FJA300..ARL,GCC;F33AFTV..FJA300..7S..GEN202411
12V 2.0KW; 12V 2.0KW,WITHOUT(COLD AREA SPEC)
main28100-52021supersedes 28100-52011iF33AFTV..FJA300..EUR;F33AFTV..FJA300..5S..S..GEN; F33AFTV..FJA300..LHD..A..GEN; F33AFTV..FJA300..S..GCC; F33AFTV..FJA300..Z..GCC202411
12V 2.7KW; 12V 2.7KW,AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC; 12V 2.7KW,AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO 5,WITH(ON BOARD DIAGNOSIS); 12V 2.7KW,MONGOLIA SPEC&COLD AREA SPEC
12V 1.7KW
main28100-52031iF33AFTV..FJA300..5S..GCC;F33AFTV..FJA300..(A,V,Z)..GCC; F33AFTV..FJA300..7S..G..GCC202411
12V 1.9KW,SAUDI ARABIA SPEC&TOYOTA STOP & START SYSTEM-WITH&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680; 12V 1.9KW,SAUDI ARABIA SPEC&TOYOTA STOP & START SYSTEM-WITH&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680&FRONT BUMPER-AERO(BLACK)
12V 1.6KW,SAUDI ARABIA SPEC&TOYOTA STOP & START SYSTEM-WITH
28120YOKE ASSY, STARTER
SAUDI ARABIA SPEC&TOYOTA STOP & START SYSTEM-WITH
28120ARING, O(FOR STARTER YOKE)
28140HOLDER ASSY, STARTER BRUSH
SAUDI ARABIA SPEC&TOYOTA STOP & START SYSTEM-WITH
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
SAUDI ARABIA SPEC&TOYOTA STOP & START SYSTEM-WITH&EXHAUST EMISSION CONTROL-EURO 4,WITHOUT(OBD) SAUDI ARABIA SPEC
28192COVER, STARTER
9164281065
main91642-81065
9167180616
main91671-80616
9415180800
main94151-80800
11 parts on this diagram · 6 diagrams in section
