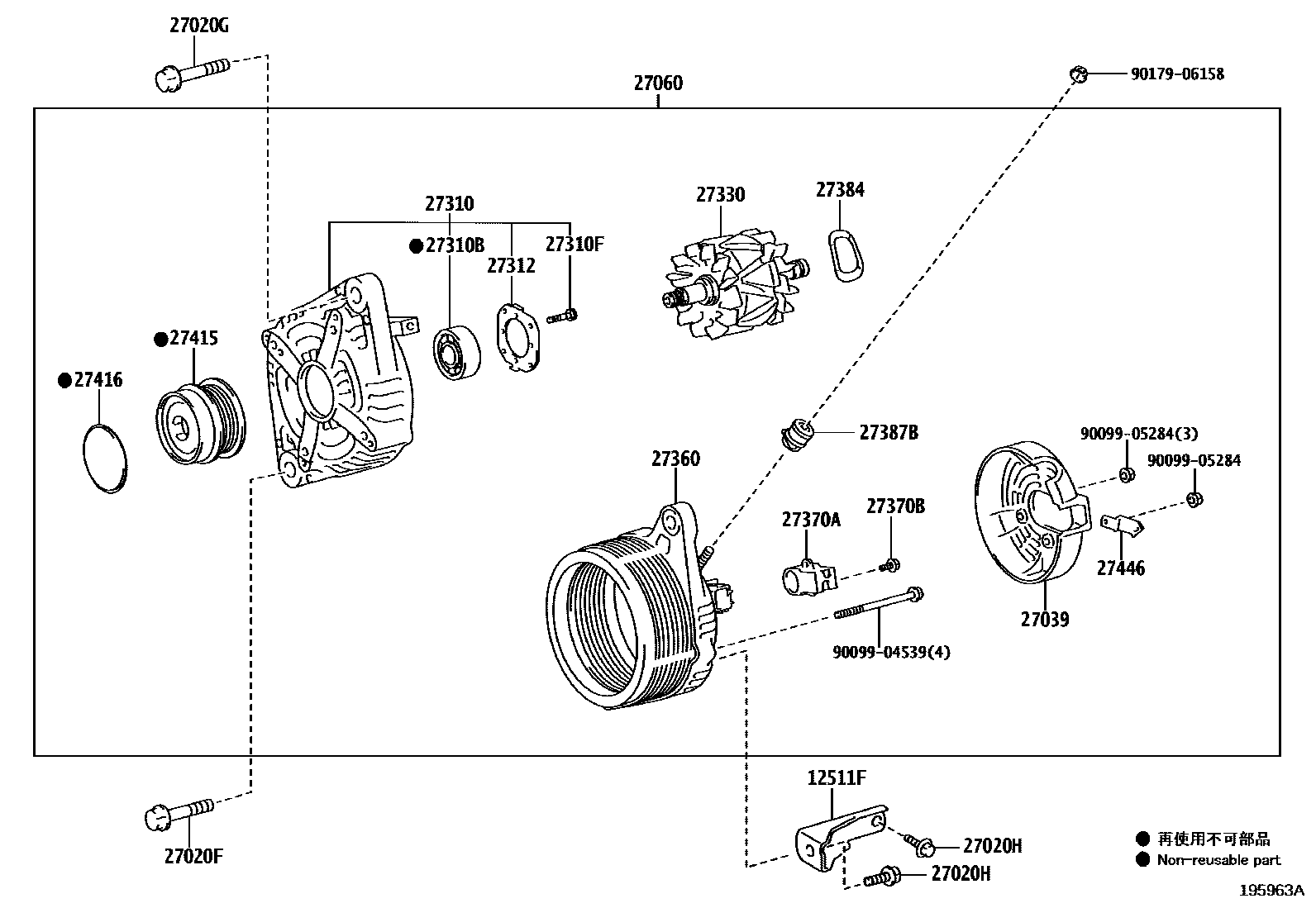

ALTERNATOR

0001 112V 150A 0002 112V 180A 0003 112V 240A 0004 112V 180A 0005 112V 240A

12511FBRACKET, ALTERNATOR, NO.1

main12511-31040i1GRFE..GRJ300202104-202411

27020FBOLT, NO.1(FOR ALTERNATOR)

main91552-81040i1GRFE..GRJ300202104-202411

27020GBOLT, NO.2(FOR ALTERNATOR)

main91552-81070i1GRFE..GRJ300202104-202411

27020HBOLT, NO.3(FOR ALTERNATOR)

main91551-80820i1GRFE..GRJ300202104-202411

27039COVER, ALTERNATOR REAR END

main27039-0W030iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202104-202411

WINDSHIELD DEICER-WITHOUT

main27039-0W030iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202411

WITHOUT(COLD AREA SPEC)

main27039-0W030iV35AFTS..VJA300..GCC,GEN;F33AFTV..FJA300..ARL,GCC;F33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN202104-202411

WINDSHIELD DEICER-WITH(FOR WIPER)

main27039-0W030iF33AFTV..FJA300..5S..Z..GEN;V35AFTS..VJA300..7S..S..EUR202104

main27039-31390i1GRFE..GRJ300202104-202411

main27039-38140iV35AFTS..VJA300..S..GCC202411

COLD AREA SPEC

main27039-38140iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main27039-38140iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202104-202411

27060ALTERNATOR ASSY, W/REGULATOR

main27060-0W030iF33AFTV..FJA300..(A,S,V,Z)..EUR202107-202411

12V 180A,WITHOUT(COLD AREA SPEC)

main27060-0W030iF33AFTV..FJA300..(A,S,V,Z)..EUR202107-202411

12V 180A

main27060-0W040iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202104-202411

12V 180A,WINDSHIELD DEICER-WITHOUT

main27060-0W040iV35AFTS..VJA300..GCC,GEN202104-202411

12V 180A

main27060-0W040iV35AFTS..VJA300..GCC,GEN202104-202411

12V 180A,WINDSHIELD DEICER-WITH(FOR WIPER)

main27060-31420i1GRFE..GRJ300202104-202411

12V 150A

main27060-52040iF33AFTV..FJA300..S..GCC202107-202411

12V 240A

main27060-52040iF33AFTV..FJA300..S..GCC202411

12V 240A,AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main27060-52040iF33AFTV..FJA300..S..GCC202411

12V 240A,COLD AREA SPEC

main27060-70550iV35AFTS..VJA300..Z..GCC202411

12V 240A,AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main27060-70550iV35AFTS..VJA300..S..GCC202104-202411

12V 240A

main27060-70550iV35AFTS..VJA300..S..GCC202411

12V 240A,COLD AREA SPEC

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0W030iF33AFTV..FJA300..(A,S,V,Z)..EUR202411

WITHOUT(COLD AREA SPEC)

main27310-0W030iV35AFTS..VJA300..GCC,GEN;F33AFTV..FJA300..ARL,GCC;F33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN202104-202411

WINDSHIELD DEICER-WITH(FOR WIPER)

main27310-0W030iV35AFTS..VJA300..GCC,GEN;F33AFTV..FJA300..ARL,GCC;F33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN202104-202411

WINDSHIELD DEICER-WITHOUT

main27310-0W030iF33AFTV..FJA300..5S..Z..GEN;V35AFTS..VJA300..7S..S..EUR202104

main27310-31430i1GRFE..GRJ300202104-202411

main27310-70510iF33AFTV..FJA300..Z..GCC202411

COLD AREA SPEC

main27310-70510iV35AFTS..VJA300..S..GCC202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main27310-70510iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202104-202411

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i1GRFE..GRJ300202104-202411

main90099-10226iF33AFTV..FJA300..Z..GCC202411

COLD AREA SPEC

main90099-10226iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main90099-10226iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202104-202411

27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)

main90099-00268i1GRFE..GRJ300202104-202411

27312PLATE, RETAINER

main27312-42010iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main27312-42010iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202411

COLD AREA SPEC

main27312-42010iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202104-202411

main27312-72100i1GRFE..GRJ300202104-202411

27330ROTOR ASSY, ALTERNATOR

main27330-0W030iF33AFTV..FJA300..(A,S,V,Z)..EUR202107-202411

WITHOUT(COLD AREA SPEC)

main27330-0W030iF33AFTV..FJA300..5S..Z..GEN202107

main27330-0W040iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202104-202411

WINDSHIELD DEICER-WITH(FOR WIPER)

main27330-0W040iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202104-202411

WINDSHIELD DEICER-WITHOUT

main27330-0W040iV35AFTS..VJA300..7S..S..EUR202104

main27330-58460i1GRFE..GRJ300202104-202411

main27330-70510iF33AFTV..FJA300..S..GCC202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main27330-70510iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202411

COLD AREA SPEC

main27330-70510iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202104-202411

27360COIL ASSY, ALTERNATOR

main27360-0W030iF33AFTV..FJA300..ARL,GCC;F33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN202411

WITHOUT(COLD AREA SPEC)

sub27410-0W020

main27360-31640i1GRFE..GRJ300202104-202411

main27360-70510iF33AFTV..FJA300..S..GCC202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main27360-70510iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202104-202411

main27360-70510iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202411

COLD AREA SPEC

main27410-0W020iV35AFTS..VJA300..GCC,GEN;F33AFTV..FJA300..ARL,GCC;F33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN202104-202411

WINDSHIELD DEICER-WITH(FOR WIPER)

main27410-0W020iV35AFTS..VJA300..GCC,GEN202104-202411

WINDSHIELD DEICER-WITHOUT

main27410-0W020iF33AFTV..FJA300..5S..Z..GEN;V35AFTS..VJA300..7S..S..EUR202104

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-27060iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main27370-27060iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202411

COLD AREA SPEC

main27370-27060iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202104-202411

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i1GRFE..GRJ300202104-202411

27370BSCREW(FOR ALTERNATOR BRUSH HOLDER)

main90099-00197i1GRFE..GRJ300;F33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main90099-00197i1GRFE..GRJ300;F33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202411

COLD AREA SPEC

main90099-00197i1GRFE..GRJ300;F33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202104-202411

27384WASHER

main27384-38130iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main27384-38130iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202411

COLD AREA SPEC

main27384-38130iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202104-202411

main27384-50030i1GRFE..GRJ300202104-202411

27387INSULATOR, TERMINAL

main27387-38130iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202411

COLD AREA SPEC

main27387-38130iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main27387-38130iF33AFTV..FJA300..EUR;V35AFTS..VJA300..5S..S;V35AFTS..VJA300..(A,V,Z)..EUR202104-202411

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i1GRFE..GRJ300202104-202411

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W131i1GRFE..GRJ300202104-202411

27416CAP, ALTERNATOR PULLEY

main27416-0W050i1GRFE..GRJ300202104-202411

27446CLIP, ALTERNATOR CORD

main27446-31390i1GRFE..GRJ300202104-202411

9009904539

main90099-04539

9009905284

main90099-05284

9017906158

main90179-06158

24 parts on this diagram · 5 diagrams in section
