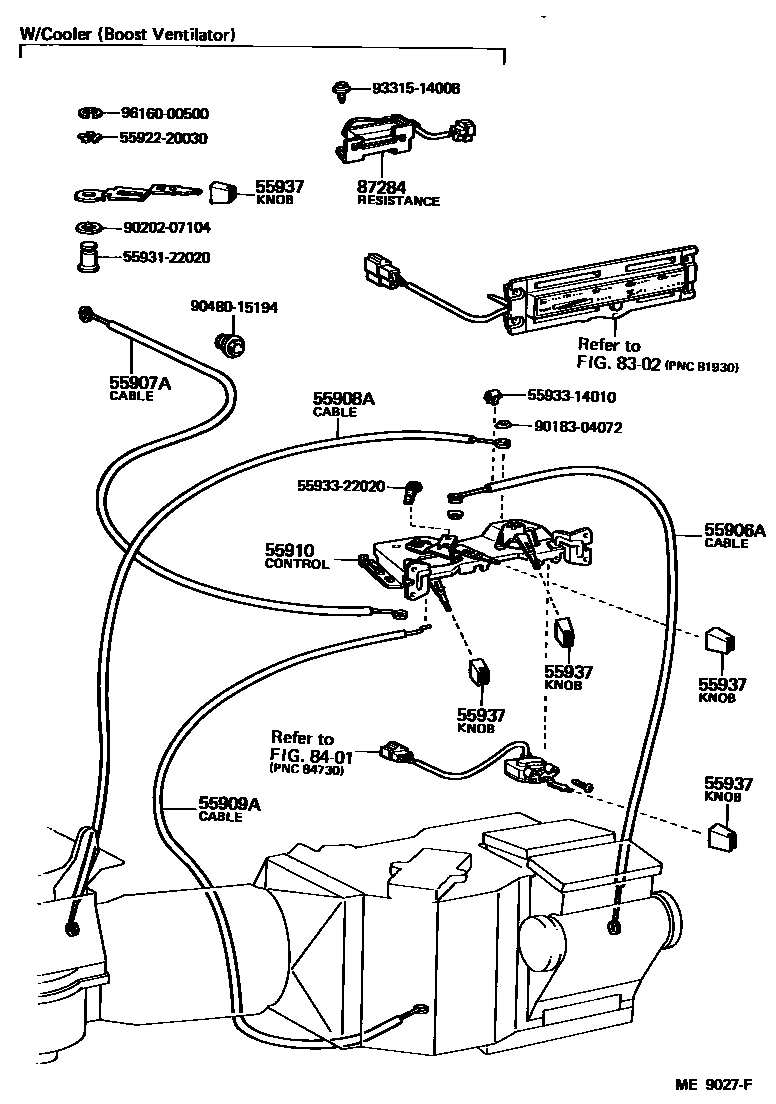

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55905-90A00iBJ60,FJ6#,HJ6#198008-198708

L=350

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main87286-90A00iBJ60,FJ6#,HJ6#..RHD198008-198708

L=610,W/HEATER

main87286-90A01iBJ60,FJ6#,HJ6#..LHD198008-198708

L=490,W/HEATER

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-90A00iBJ60,FJ6#,HJ6#198008-198708

L=880

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55907-90A00iBJ60,FJ6#,HJ6#198008-198708

L=650,W/HEATER

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55901-90A00iBJ60,FJ6#,HJ6#..RHD198008-198708

W/HEATER

main55901-90A01iBJ60,FJ6#,HJ6#..LHD198008-198708

W/HEATER

main55901-90A02iBJ60,FJ6#..RHD..GEN198110-198708

W/BOOST VENTILATOR

main55901-90A03iBJ60..LHD..GEN; FJ62..LHD198702-198708

W/BOOST VENTILATOR

main55901-90A04iHJ60..SOB..GEN198411-198608

W/BOOST VENTILATOR & COOLER

main55901-90A05iBJ60..LHD..GEN; FJ62..LHD198702-198708

W/BOOST VENTILATOR & COOLER

55937KNOB, HEATER CONTROL LEVER

main55905-22050×4iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

main55905-90A01×4iFJ60,HJ6#..EUR198008-198708

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88622-90A00iBJ60,FJ60,HJ60..RHD..GEN198008-198110

BOOST VENTILATOR,W/COOLER

main88622-90A01iBJ60..LHD..GEN; FJ62..LHD198702-198708

BOOST VENTILATOR W/COOLER; BOOST VENTILATOR,W/COOLER

5592220030BRACKET, HEATER CONTROL BASE

main55922-20030

5593122020CLAMP, HEATER CONTROL WIRE

main55931-22020

5593314010GUIDE, LEVER, NO.2

main55933-14010

5593322020GUIDE, LEVER, NO.2

main55933-22020

9018304072

main90183-04072

9020207104

main90202-07104

9048015194

main90480-15194

9331514008

main93315-14008

9616000500

main96160-00500

18 parts on this diagram · 4 diagrams in section
