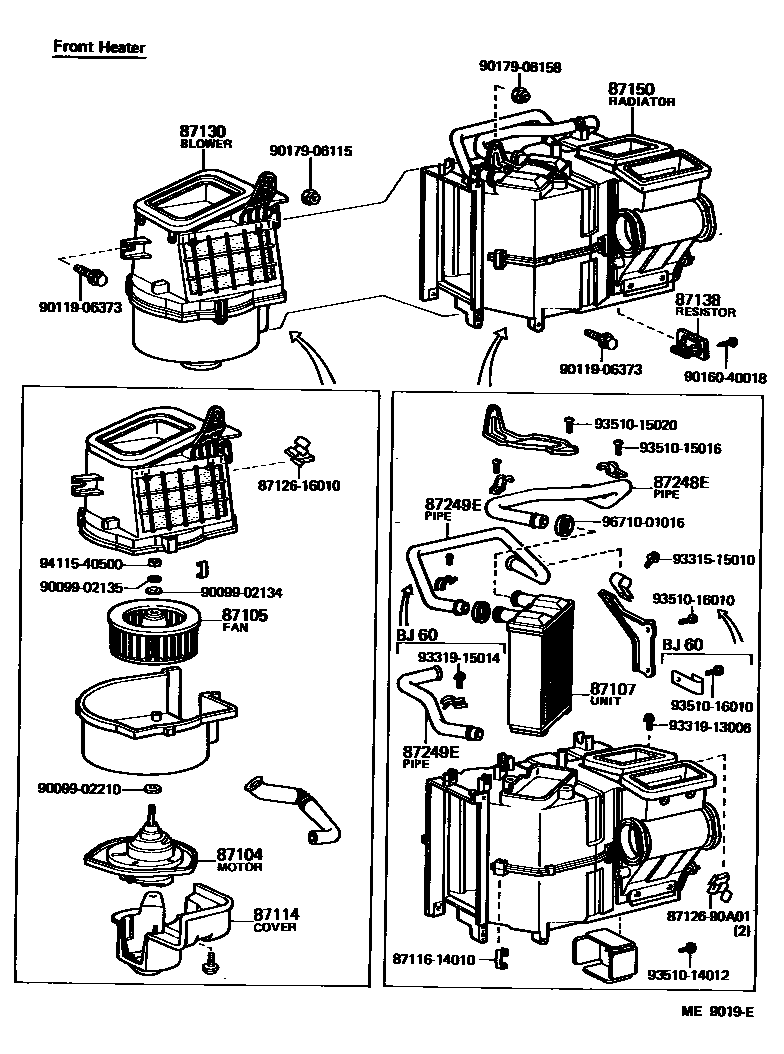

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1BENCH SEAT 0005 1SEPARATE SEAT

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-90A00iBJ60,FJ6#;HJ6#..ARL,GEN198008-198708

12V

main87104-90A02iBJ60;HJ60..EUR198110-198411

24V

main87104-90A06iHJ60..EUR198411-198708

24V

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iBJ60,FJ6#..LHD; HJ60..LHD..GEN198008-198708

12V

main87105-14030iBJ60..RHD198411-198510

24V

main87134-30010iBJ60..LHD; HJ60..LHD..EUR198110-198411

24V

main87134-30020iBJ60..RHD; HJ60..RHD..EUR198110-198411

24V

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-90A00iBJ60,FJ6#,HJ6#198008-198708

87114COVER, HEATER

main87114-90A00iHJ60..RHD..EUR198103-198708

24V,ENGLAND SPEC

main87114-90A01iFJ60..LUB..EUR198103-198411

WEST GERMANY SPEC

main87114-90A02iHJ60..LHD..LUB..EUR198103-198411

WEST GERMANY SPEC

87130BLOWER ASSY, HEATER, FRONT

main87130-90A00iBJ60,FJ6#..RHD; HJ6#..RHD..(ARL,GEN)198008-198708

12V

main87130-90A01iBJ60,FJ6#..LHD; HJ60..LHD..GEN198008-198708

12V

main87130-90A02iBJ60..RHD; HJ60..RHD..EUR198110-198411

24V

main87130-90A03iBJ60..LHD; HJ60..LHD..EUR198110-198411

24V

main87130-90A04iHJ60..RHD..EUR198103-198708

24V,ENGLAND SPEC

main87130-90A05iFJ60..LUB..EUR198103-198411

12V,WEST GERMANY SPEC

main87130-90A06iHJ60..LHD..LUB..EUR198103-198411

24V,WEST GERMANY SPEC

main87130-90A07iHJ60..RHD..EUR198411-198708

24V

main87130-90A08iBJ60..LHD..GEN198411-198510

24V

main87130-90A09iHJ60..4FC..HRF..EUR;HJ60..LHD..5F..LUB..EUR198411-198510

24V,WEST GERMANY SPEC

87138RESISTOR, HEATER BLOWER

main87138-22030iBJ60,FJ6#;HJ6#..ARL,GEN198008-198708

12V

main87138-90A00iHJ6#..EUR198110-198708

24V

87150RADIATOR ASSY, HEATER

main87150-90A00iFJ60,HJ60..RHD198008-198411

main87150-90A01iFJ60,HJ60..LHD198008-198411

main87150-90A02iBJ60..RHD198008-198411

main87150-90A03iBJ60..LHD198008-198411

main87150-90A08iFJ62,HJ6#..RHD198411-198708

main87150-90A09iFJ62,HJ6#..LHD198411-198708

main87150-90A10iBJ60..RHD198411-198708

main87150-90A11iBJ60..LHD198411-198708

87248EPIPE, HEATER WATER INLET, E

main87248-90A00iBJ60,FJ6#,HJ6#..RHD198008-198708

main87248-90A01iBJ60,FJ6#,HJ6#..LHD198008-198708

87249EPIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)

main87248-90A02iFJ6#,HJ6#..RHD198008-198708

main87248-90A03iFJ6#,HJ6#..LHD198008-198708

main87248-90A04iBJ60..RHD198008-198708

main87248-90A05iBJ60..LHD198008-198708

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8712616010CLAMP, HEATER CONTROL

main87126-16010

8712690A01CLAMP, HEATER CONTROL

main87126-90A01

9009902134

main90099-02134

9009902135

main90099-02135

9009902210

main90099-02210

9011906373

main90119-06373

9016040018

main90160-40018

9017906115

main90179-06115

9017906158

main90179-06158

9331515010

main93315-15010

9331913006

main93319-13006

9331915014

main93319-15014

9351014012

main93510-14012

9351015016

main93510-15016

9351015020

main93510-15020

9351016010

main93510-16010

9411540500

main94115-40500

9671001016

main96710-01016

28 parts on this diagram · 4 diagrams in section
