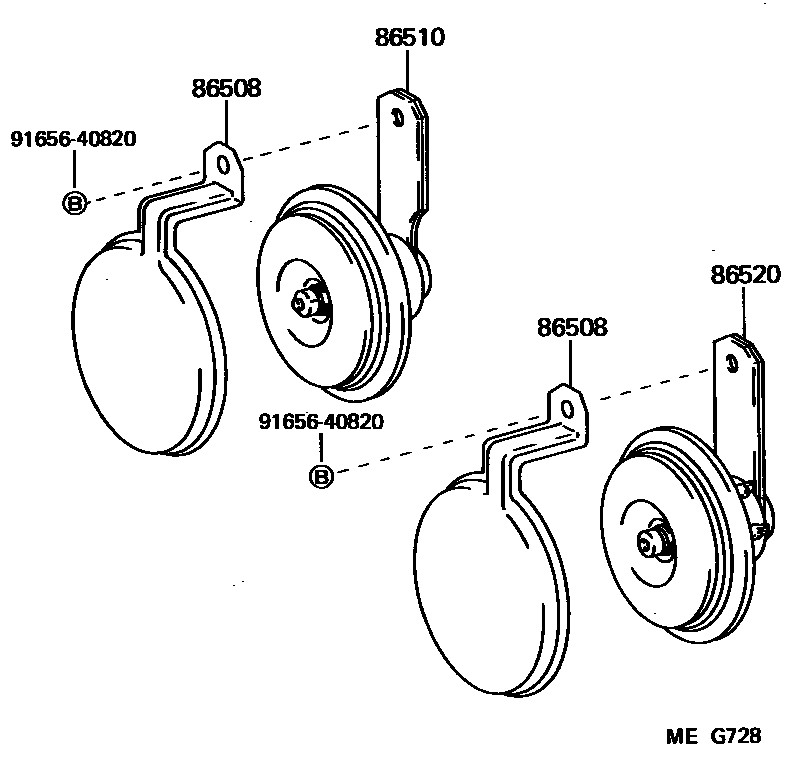

HORN

86508BRACKET SUB-ASSY, HORN

main86591-90K00×2iHJ60..LHD..SRF..LUB..EUR198510-198612

SWITZERLAND SPEC

86510HORN ASSY, HIGH PITCHED

main86510-22090iBJ60,HJ60..GEN,ME; FJ62..GEN198509-198510

12V,W/RADIO AM/SW

main86510-22091iBJ60,FJ62,HJ60..GEN198510-198708

12V,W/AM/SW,EXCL/CHINA SPEC

main86510-36111iFJ60..LHD..GEN198008-198401

12V,CHINA SPEC

main86510-36112iFJ62..LHD..4F..LUB;FJ62..LHD..SOB..GEN198411-198510

12V,CHINA SPEC & W/RADIO AM/SW;12V,CHINA SPEC

main86510-36122iBJ60..LHD..4F198403-198510

24V,CHINA SPEC & W/RADIO AM/SW;24V,CHINA SPEC

main86510-60090iFJ60..EUR198008-198210

12V

main86510-60100iHJ60..EUR198008-198210

24V

main86510-60110iBJ60,HJ60..GEN198008-198110

24V

main86510-60150iFJ62,HJ60..RHD..GEN198411-198510

12V,*SA,*SA & W/RADIO AM/SW

main86510-90A00iBJ60,HJ60..ARL,GEN,ME; FJ62..ARL,GEN198509-198510

12V

main86510-90A05iHJ60..EUR198210-198510

24V

main86510-90A07iBJ60,FJ62,HJ6#..ARL,GEN198510-198708

12V

main86510-90B00iBJ60..GEN198210-198510

24V,W/RADIO AM/SW

main86510-90K06iHJ6#..EUR198510-198708

24V

main86510-90K07iFJ62,HJ60..RHD..GEN198510-198708

12V,*SA,*SA & W/RADIO AM/SW

86520HORN ASSY, LOW PITCHED

main86520-12620iFJ62,HJ60..RHD..GEN198510-198708

12V,*SA,*SA & W/RADIO AM/SW

main86520-16100iFJ60..EUR198008-198210

12V

main86520-22090iBJ60,HJ60..GEN,ME; FJ62..GEN198509-198510

12V,W/RADIO AM/SW

main86520-22091iBJ60,FJ62,HJ60..GEN198510-198708

12V,W/AM/SW,EXCL/CHINA SPEC

main86520-36111iFJ60..LHD..GEN198008-198401

12V,CHINA SPEC

main86520-36112iFJ60..LHD..GEN198403-198411

12V,CHINA SPEC & W/RADIO AM/SW

main86520-36122iBJ60..LHD..4F198403-198510

24V,CHINA SPEC & W/RADIO AM/SW;24V,CHINA SPEC

main86520-60090iHJ60..EUR198008-198210

24V

main86520-60091iHJ60..EUR198210-198510

24V

main86520-60100iBJ60,HJ60..GEN198008-198110

24V

main86520-60150iFJ60..RHD..GEN;HJ60..RHD..LUB..GEN198404-198411

12V,*SA,*SA & W/RADIO AM/SW

main86520-90A00iBJ60,HJ60..ARL,GEN,ME; FJ62..ARL,GEN198509-198510

12V

main86520-90A06iBJ60,FJ62,HJ6#..ARL,GEN198510-198708

12V

main86520-90B00iBJ60..GEN198210-198510

24V,W/RADIO AM/SW

main86520-90K06iHJ6#..EUR; HJ60..LHD..SRF..LUB..EUR198510-198708

24V; 24V,SWITZERLAND SPEC

9165640820

main91656-40820

4 parts on this diagram · 1 diagram in section
