Toyota LAND CRUISER — ANTENNA

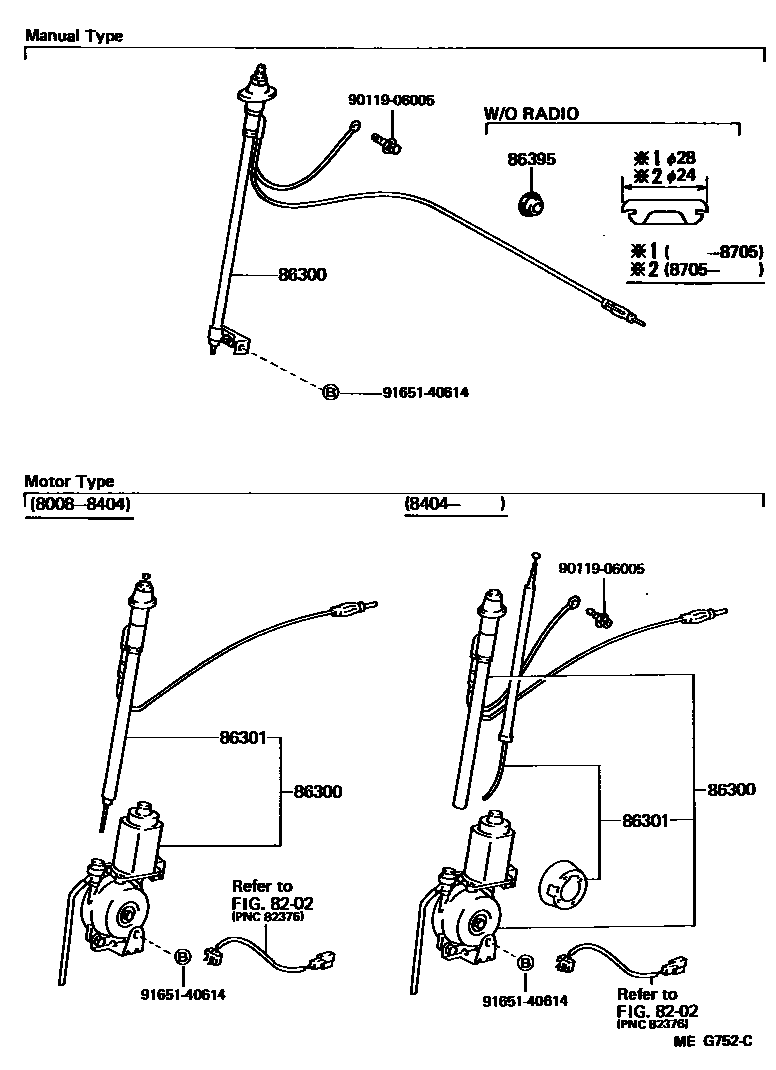

Parts diagram
8202WIRING & CLAMP
→ Go to FIG 82-02
86300ANTENNA ASSY, W/HOLDER
86300-90A06
86300-90A07
86300-90A08
86300-90A09
86300-90A11
86300-90A12
86300-90A13
86300-90A14
86300-90A15
86300-90A17
86301POLE SUB-ASSY, ANTENNA
86353-14330
86301-90A08
86301-90A09
86353-90A13
86395GROMMET, ANTENNA
86395-90A00
86395-90K00
9011906005
90119-06005
9165140614
91651-40614

6 parts on this diagram · 1 diagram in section

ANTENNA for Toyota LAND CRUISER

This section contains 6 genuine Toyota parts for the ANTENNA system of the Toyota LAND CRUISER. Key components include: WIRING & CLAMP, ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, ANTENNA, GROMMET, ANTENNA.
