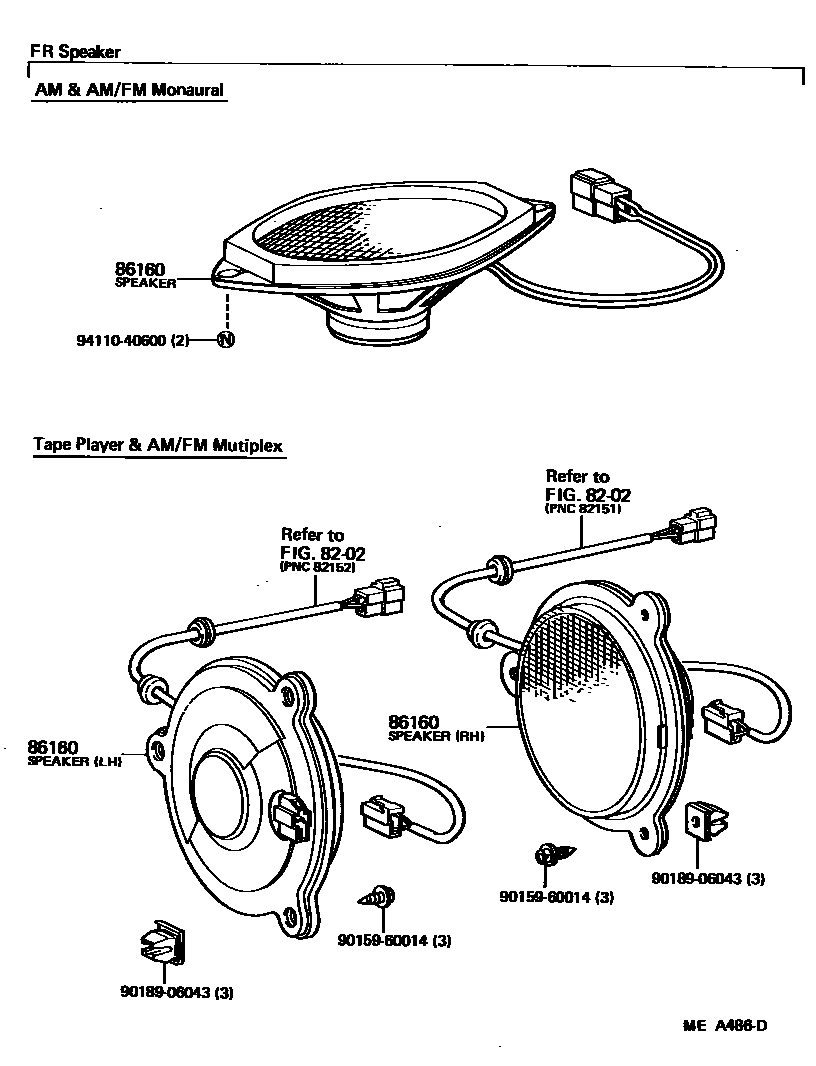

SPEAKER

0001 1 0002 1

8202WIRING & CLAMP

→ Go to FIG 82-02

86160SPEAKER ASSY, FRONT NO.1

main86160-22060iBJ60,FJ6#,HJ60..ARL,GEN,ME198008-198510

RH,W/TAPE PLAYER OR *19

main86160-22070iBJ60,FJ6#,HJ60..ARL,GEN,ME198008-198510

LH,W/TAPE PLAYER OR *19

main86160-90A00iBJ60,FJ6#,HJ60198008-198510

main86160-90A01iBJ60,FJ62,HJ6#..ARL,GEN,ME; HJ6#..EUR198510-198708

RH; RH,W/TAPE PLAYER OR *19

main86160-90A02iBJ60,FJ62,HJ6#..ARL,GEN,ME; HJ6#..EUR198510-198708

LH; LH,W/TAPE PLAYER OR *19

9015960014

main90159-60014

9018906043

main90189-06043

9411040600

main94110-40600

5 parts on this diagram · 2 diagrams in section
