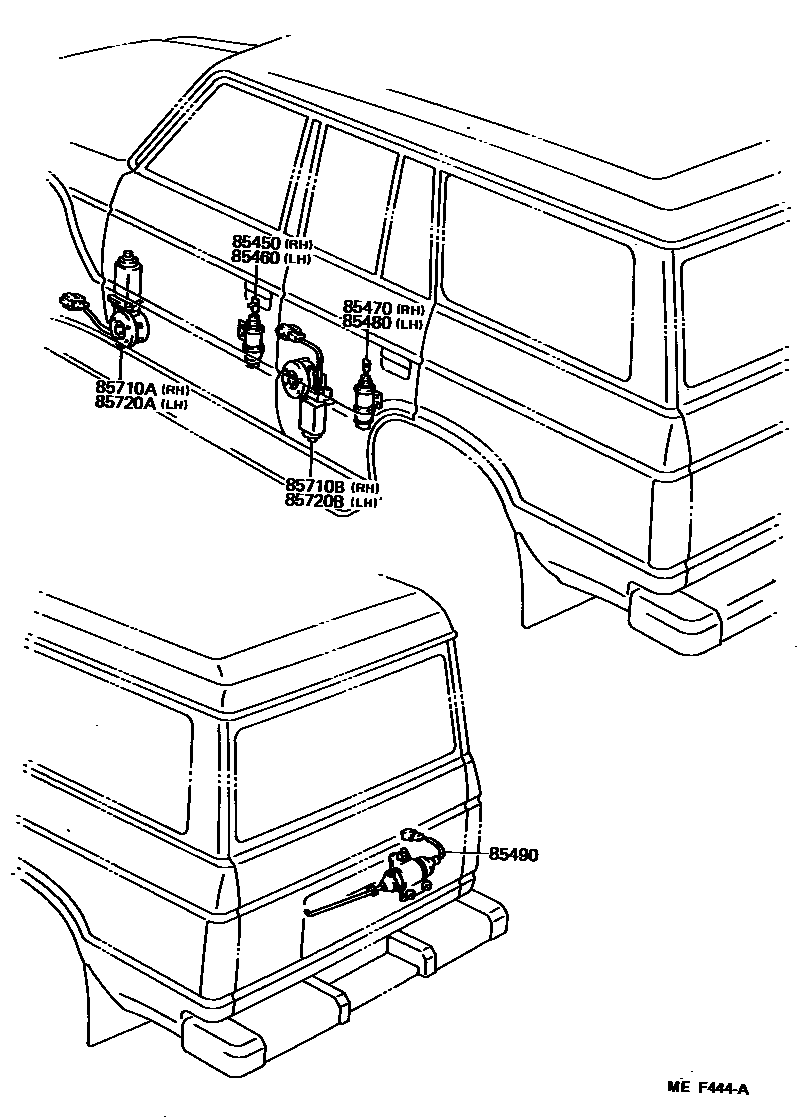

DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-90A02iFJ62,HJ60..LUB..(ARL,GEN,ME); FJ62..SOB..ME198411-198510

main85450-90A03iHJ60..LUB..EUR198411-198510

main85450-90A04iBJ60..GEN; FJ62,HJ6#..ARL,GEN,ME198510-198708

12V

main85450-90A05iHJ6#..WGG..EUR198510-198708

24V

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85460-90A00iFJ60,HJ60..LHD..LUB..GEN198309-198411

main85460-90A01iHJ60..LUB..EUR198411-198510

main85460-90A02iBJ60..GEN; FJ62,HJ6#..ARL,GEN,ME198510-198708

12V

main85460-90A03iHJ6#..WGG..EUR198510-198708

24V

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85470-90A00iFJ60,HJ60..LHD..LUB..GEN198309-198411

main85470-90A01iHJ60..LUB..EUR198411-198510

main85470-90A02iBJ60..GEN; HJ61..LUB;FJ62..ARL,ME;FJ62,HJ60..LUB..GEN;HJ60..LHD..WGG..EUR;HJ60..RHD..(ARL,EUR)198510-198708

12V

main85470-90A03iHJ6#..WGG..EUR198510-198708

24V

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85480-90A00iFJ62,HJ60..LUB..(ARL,GEN,ME); FJ62..SOB..ME198411-198510

main85480-90A01iHJ60..LUB..EUR198411-198510

main85480-90A02iBJ60..GEN; FJ62,HJ6#..ARL,GEN,ME198510-198708

12V

main85480-90A03iHJ6#..WGG..EUR198510-198708

24V

85490SOLENOID ASSY, DOOR CONTROL BACK

main85450-90A00iFJ62,HJ60..LUB..(ARL,GEN,ME)198411-198510

main85450-90A01iHJ60..LUB..EUR198411-198510

main85450-90A06iFJ62,HJ6#..LUB..(ARL,GEN,ME)198510-198708

12V

main85450-90A07iHJ6#..LUB..EUR198510-198708

24V

main85450-90A08iFJ62,HJ60..SOB..(ARL,GEN,ME)198510-198708

12V

main85450-90A09iHJ60..HRF..SOB198510-198708

24V

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-90A00iFJ62,HJ6#..WGG..(ARL,GEN,ME)198411-198708

main85710-90A02iHJ6#..WGG..EUR198411-198708

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-90A01iFJ62,HJ6#..WGG..(ARL,GEN,ME)198411-198708

main85710-90A03iHJ6#..WGG..EUR198411-198708

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-90A00iFJ62,HJ6#..WGG..(ARL,GEN,ME)198411-198708

main85720-90A02iHJ6#..WGG..EUR198411-198708

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85720-90A01iFJ62..WGV..ME198510-198708

main85720-90A03iHJ6#..WGG..EUR198411-198708

9 parts on this diagram · 1 diagram in section
