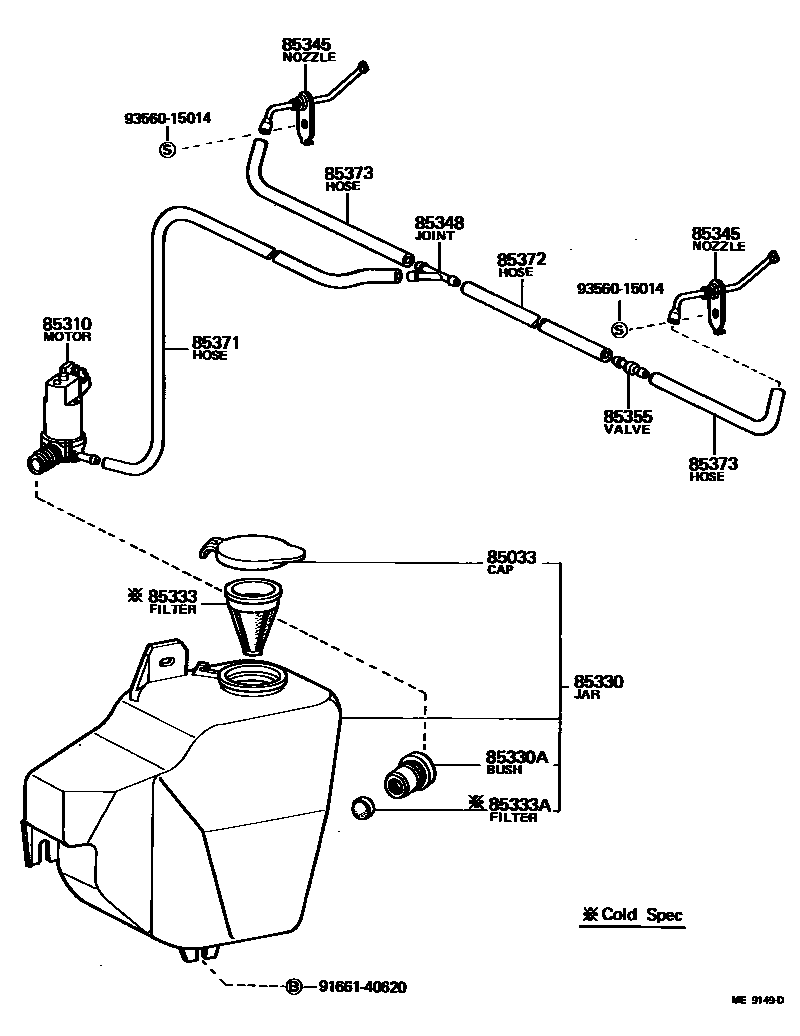

WINDSHIELD WASHER

0001 1 0002 1

85033CAP ASSY, WINDSHIELD WASHER

main85332-90A00iBJ60,FJ6#,HJ6#198008-198708

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20100iBJ60,FJ60;HJ60..ARL,GEN198008-198210

12V

main85310-20120iFJ60..EUR,GEN198008-198210

12V,COLD SPEC

main85310-22080iBJ60,FJ6#;HJ6#..ARL,GEN198210-198708

12V

main85310-25010iBJ60,HJ60..EUR,GEN198008-198110

24V

main85310-90A01iBJ60,HJ60..EUR,GEN198008-198110

24V,COLD SPEC

main85310-90B00iHJ6#..EUR198210-198708

24V

85330JAR ASSY, WINDSHIELD WASHER

main85330-90A01iBJ60,FJ6#,HJ6#198008-198708

main85330-90A03iBJ60,FJ60,HJ60..EUR,GEN198008-198210

COLD SPEC

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iBJ60,FJ6#,HJ6#198008-198708

main90099-32103iBJ60,FJ60,HJ60..EUR,GEN198008-198210

COLD SPEC

85333FILTER, WINDSHIELD WASHER JAR

main85333-60010iBJ60,FJ60,HJ60..EUR,GEN198008-198210

COLD SPEC

85333AFILTER, WINDSHIELD WASHER JAR, NO.2

main85333-20020iBJ60,FJ60,HJ60..EUR,GEN198008-198210

COLD SPEC

85345NOZZLE, WINDSHIELD WASHER

main85341-90A00×2iBJ60,FJ60,HJ60198008-198210

main85341-90A02×2iBJ60,FJ60,HJ60..EUR,GEN198008-198210

COLD SPEC

main85341-90A03iBJ60,FJ62,HJ60..MTM198411-198708

LH

main85341-90A04iFJ62..MTM..GEN; HJ60..5F..EUR; HJ61;FJ62,HJ60..4FC198411-198708

LH; LH,COLD SPEC

main85341-90A06iBJ60,FJ62,HJ60..MTM198411-198708

RH

main85341-90A07iFJ62..MTM..GEN; HJ60..5F..EUR; HJ61;FJ62,HJ60..4FC198411-198708

RH; RH,COLD SPEC

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iBJ60,FJ6#,HJ6#198201-198708

main85348-89101iBJ60,FJ60,HJ60..EUR,GEN198008-198210

COLD SPEC

main85355-14010iBJ60,FJ60,HJ60198008-198201

85355VALVE, WINDSHIELD WASHER HOSE

main85031-30010iBJ60,FJ6#,HJ6#198008-198708

main85031-90A01iBJ60,FJ60,HJ60..EUR,GEN198008-198210

COLD SPEC

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iFJ62..MTM..GEN; HJ60..5F..EUR; HJ61;FJ62,HJ60..4FC198411-198708

L=1000(*H,L=530); L=1000(*H,L=530),COLD SPEC

main90445-09006iBJ60,FJ60,HJ60..EUR,GEN198008-198210

L=720,COLD SPEC

main90446-06013iBJ60,FJ60,HJ60198008-198411

L=1450(*H,L=710)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299iFJ62..MTM..GEN; HJ60..5F..EUR; HJ61;FJ62,HJ60..4FC198411-198708

L=1000(*H,L=640); L=1000(*H,L=640),COLD SPEC

main90099-33332iBJ60,FJ60,HJ60..EUR,GEN198008-198210

*H,L=450,COLD SPEC

main90446-06013iBJ60,FJ60,HJ60198008-198411

L=1000(*H,L=450)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299×2iFJ60..EUR,GEN; HJ60..EUR198210-198411

L=600(*H,L=110),COLD SPEC

main90099-33332×2iBJ60,FJ60,HJ60..EUR,GEN198008-198210

*H,L=130,COLD SPEC

main90446-06013×2iBJ60,FJ60,HJ60198008-198411

L=1450(*H,L=130)

9166140620

main91661-40620

9356015014

main93560-15014

14 parts on this diagram · 2 diagrams in section
