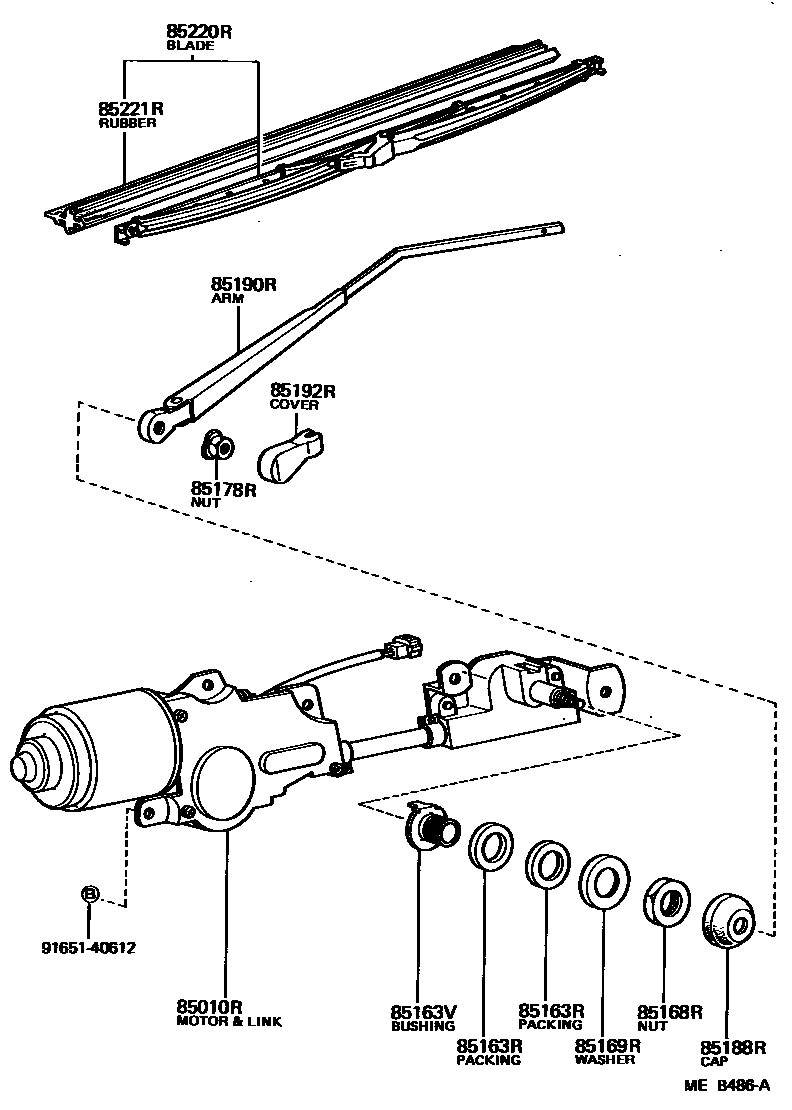

REAR WIPER

85010RMOTOR & LINK ASSY, RR WIPER

main85010-90A00iFJ60..LUB..EUR198008-198411

12V

main85010-90A01iHJ60..LUB..(EUR,GEN)198008-198110

24V

85163RPACKING, REAR WIPER PIVOT, NO.1

main85174-12320×2iFJ6#,HJ6#..LUB198008-198708

85163VBUSH, REAR WIPER LINK PIVOT

main85176-90A00iFJ6#,HJ6#..LUB198008-198708

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05141iFJ6#,HJ6#..LUB198008-198708

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90099-01458iFJ6#,HJ6#..LUB198008-198708

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iFJ6#,HJ6#..LUB198008-198708

85188RCAP, REAR WIPER PIVOT, NO.1

main85178-12320iFJ6#,HJ6#..LUB198008-198708

85190RARM ASSY, REAR WIPER

main85190-90A00iFJ60,HJ60..LUB198008-198411

main85190-90A06iFJ62,HJ6#..LUB198411-198708

85192RCOVER, REAR WIPER ARM

main85192-90300iFJ60,HJ60..LUB198008-198301

main85195-95700iFJ6#,HJ6#..LUB198301-198708

85220RBLADE ASSY, REAR WIPER

main85220-90A02iFJ6#,HJ6#..LUB..(ARL,GEN,ME)198008-198708

main85220-90A04iFJ60,HJ6#..LUB..EUR198008-198708

85221RBLADE, REAR WIPER

main85221-90A02iFJ6#,HJ6#..LUB..(ARL,GEN,ME)198008-198708

main85221-90A03iFJ60,HJ6#..LUB..EUR198008-198708

9165140612

main91651-40612

12 parts on this diagram · 1 diagram in section
