INDICATOR

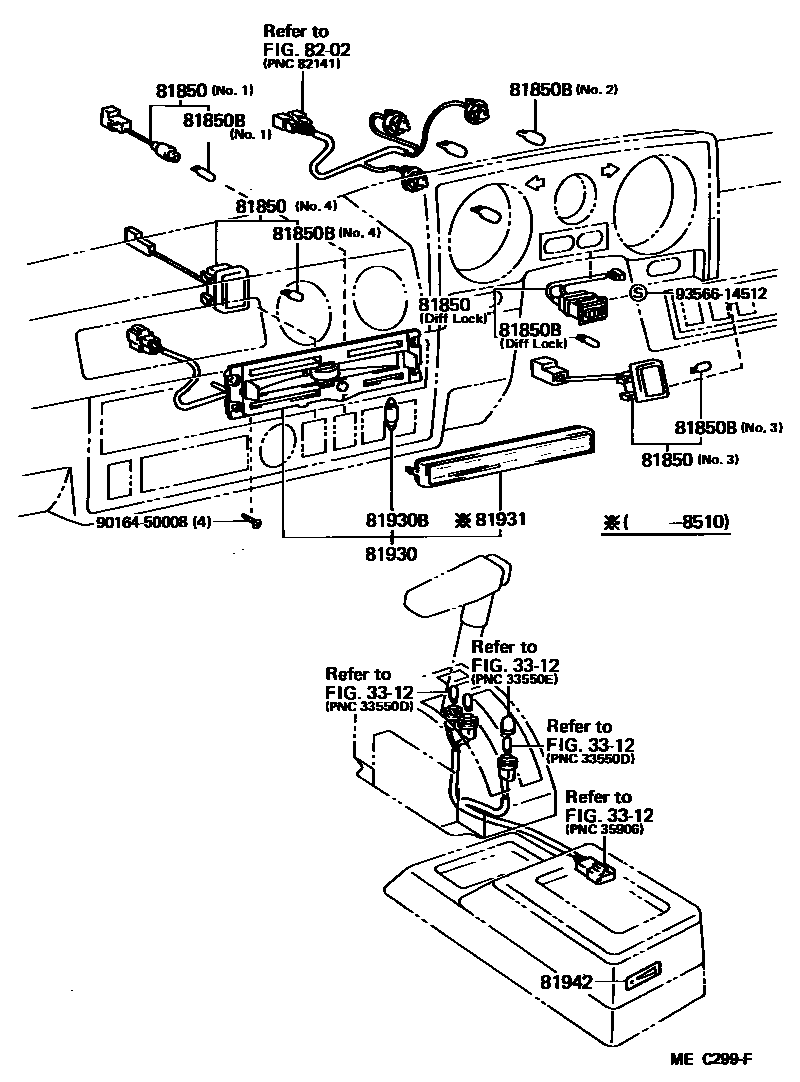

Parts diagram

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

81850LAMP ASSY, INDICATOR

main81850-90A00i198110-198708

12V,NO.1

main81850-90A01i198110-198510

24V,NO.1

main81850-90A02i198510-198708

12V,NO.3,*FSW

main81850-90A03i198411-198510

24V,NO.3,*FSW

main81850-90A04i198510-198708

12V,NO.4,*ACW

main81850-90A05i198411-198510

24V,NO.4,*ACW

main81850-90A06i198510-198708

DIFF LOCK

main81850-90A08i198608-198708

DIFF LOCK

main81850-90A09i198608-198708

DIFF LOCK

81850BBULB, INDICATOR LAMP

main81856-90A00i198110-198708

12V 1.4W,NO.1

main81856-90A01i198110-198708

24V 1.4W,NO.1

main90981-11018i198411-198510

12V 1.2W W/O SOCKET,12V 1.4W,NO.3,*FSW; 12V 1.2W W/O SOCKET,12V 1.4W,NO.4,*ACW

main90981-11022i198411-198510

24V 1.4W,24V 1.4W,NO.3,*FSW; 24V 1.4W,24V 1.4W,NO.4,*ACW

main99132-12034×6i198210-198708

12V 3.4W,12V 3.4W,NO.2

main99134-12030×6i198110-198510

24V 3W,24V 3W,NO.2

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-90A00i198008-198510

main81930-90A01i198008-198510

main81930-90A03i198110-198510

W/BOOST VENTILATOR

main81930-90A04i198008-198110

W/BOOST VENTILATOR

main81930-90A05i198510-198708

main81930-90A06i198510-198708

main81930-90A07i198510-198708

W/BOOST VENTILATOR

main81930-90A08i198510-198702

W/BOOST VENTILATOR

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11010i198008-198708

12V 2W,12V

81931LENS, HEATER CONTROL INDICATOR

main81931-90A00i198008-198510

main81931-90A01i198008-198510

main81931-90A03i198210-198510

W/BOOST VENTILATOR

main81931-90A04i198110-198510

W/BOOST VENTILATOR

81942SHEET, HEATER CONTROL NAME

main86995-90A02i198510-198708

8202WIRING & CLAMP

→ Go to FIG 82-02

9016450008

main90164-50008

9356614512

main93566-14512

10 parts on this diagram · 1 diagram in section
