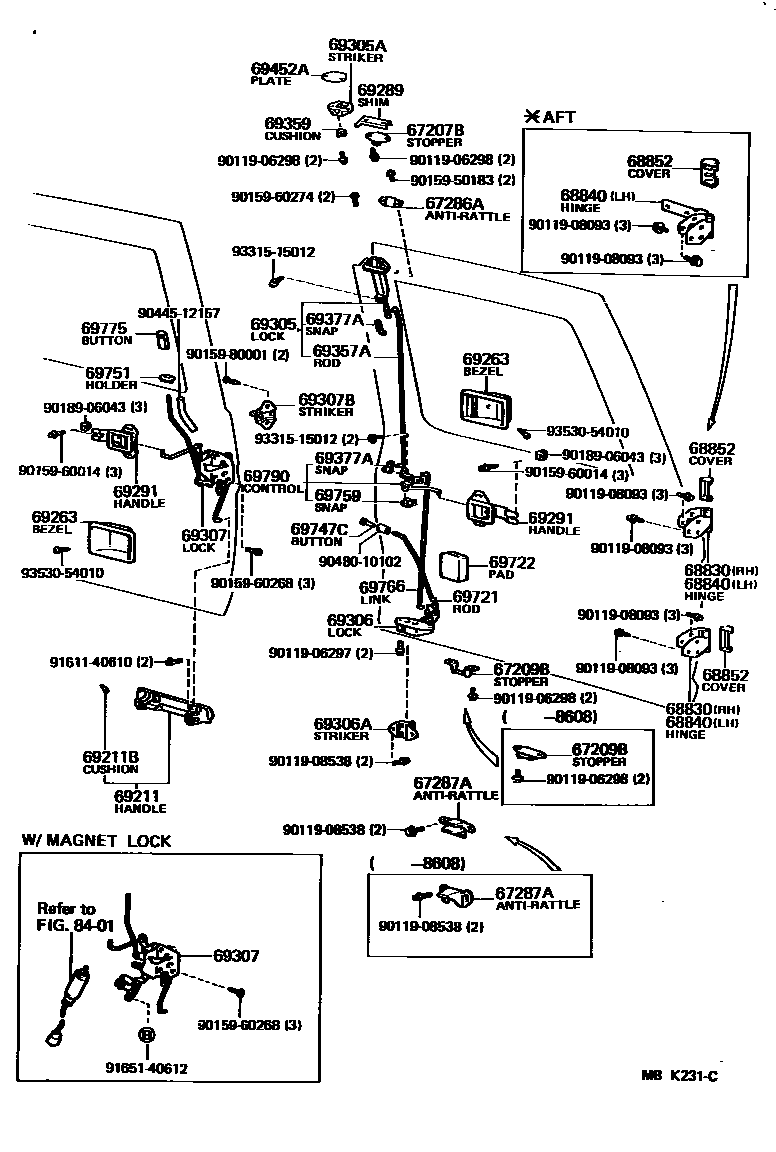

BACK DOOR LOCK & HINGE

0001 1 0003 1

67207BSTOPPER SUB-ASSY, BACK DOOR, UPPER

main67206-90K00iBJ60,FJ62,HJ6#..SOB198608-198708

main67207-90A01iBJ60,FJ60,HJ60..SOB198008-198305

67209BSTOPPER SUB-ASSY, BACK DOOR, LOWER

main67208-90A01iBJ60,FJ62,HJ6#..SOB198608-198708

main67209-90A01iBJ60,FJ60,HJ60..SOB198008-198305

67286ANTI-RATTLE, BACK DOOR, RH

main67285-90A00iFJ60,HJ60..LUB198008-198305

67286AANTI-RATTLE, BACK DOOR, UPPER

main67285-90A01iBJ60,FJ60,HJ60..SOB198008-198305

67287ANTI-RATTLE, BACK DOOR, LH

main67286-90A00iFJ60,HJ60..LUB198008-198305

67287AANTI-RATTLE, BACK DOOR, LOWER

main67281-90A00iBJ60,FJ60,HJ60..SOB198008-198305

68830HINGE ASSY, BACK DOOR, RH

main68801-90A00iBJ60,FJ6#,HJ6#..SOB198305-198708

UPR

main68803-90A00iBJ60,FJ6#,HJ6#..SOB198305-198708

LWR

68840HINGE ASSY, BACK DOOR, LH

main68802-90A00iBJ60,FJ60,HJ60..SOB198008-198305

UPR

main68802-90A01iBJ60,FJ62,HJ60..SOB..(GEN,ME)198608-198708

UPR,W/*AFT

main68804-90A00iBJ60,FJ60,HJ60..SOB198008-198305

LWR

main68804-90A01iBJ60,FJ62,HJ60..SOB..(GEN,ME)198608-198708

LWR,W/*AFT

68852COVER, BACK DOOR HINGE

main68851-90A00×2iBJ60,FJ60,HJ60..SOB198008-198305

RH

main68851-90A02iBJ60,FJ62,HJ60..SOB..(GEN,ME)198608-198708

LH UPR,W/*AFT

main68852-90A00×2iBJ60,FJ60,HJ60..SOB198008-198305

LH

main68852-90A02iBJ60,FJ62,HJ60..SOB..(GEN,ME)198608-198708

LH LWR,W/*AFT

69211HANDLE, BACK DOOR OUTSIDE, RH

main69210-14030iBJ60,FJ6#,HJ6#..SOB198305-198708

69211BCUSHION(FOR BACK DOOR OUTSIDE HANDLE)

main90541-03021iBJ60,FJ60,HJ60..SOB198008-198305

69263BEZEL, BACK DOOR INSIDE HANDLE

main69277-16040-03×2iFJ62,HJ60..LHD..SOB198510-198708

GRAY,GRAY,TRIM1#

main69277-16040-06×2iBJ60,FJ60,HJ60..SOB198305-198411

DARK BROWN,BROWN,TRIM4#

main69277-16040-36×2iBJ60,FJ62,HJ6#..SOB198411-198708

SEPIA BROWN,SEPIA BROWN,TRIM4#

69289SHIM, BACK DOOR STOPPER

main69289-90A00×2iBJ60,FJ62,HJ6#198510-198708

69291HANDLE ASSY, BACK DOOR INSIDE

main69206-20020×2iBJ60,FJ60,HJ60..SOB198008-198305

69305LOCK SUB-ASSY, BACK DOOR, UPPER

main69350-90A00iBJ60,FJ6#,HJ6#..SOB198305-198708

69305ASTRIKER ASSY, BACK DOOR, UPPER

main69451-90A01iBJ60,FJ60,HJ60..SOB198008-198305

main69470-90A01iBJ60,FJ62,HJ6#..SOB198506-198708

69306LOCK SUB-ASSY, BACK DOOR, LOWER

main69380-90A00iBJ60,FJ6#,HJ6#..SOB198305-198610

main69380-90A01iBJ60,FJ62,HJ6#..SOB198610-198708

69306ASTRIKER ASSY, BACK DOOR, LOWER

main69430-90A00iBJ60,FJ60,HJ60..SOB198008-198305

69307LOCK SUB-ASSY, BACK DOOR, CENTER

main69350-90A01iBJ60,FJ6#,HJ60..SOB198305-198510

main69350-90A04iBJ60..GEN; HJ60..HRF..SOB198510-198708

MAGNET LOCK,24V

main69350-90A05iFJ62..WGV;BJ60,HJ6#..SOB;FJ62..WGG..SRF..SOB198510-198708

69307BSTRIKER ASSY, BACK DOOR, CENTER

main69410-12040iBJ60,FJ60,HJ60..SOB198008-198305

main69410-12070iBJ60,FJ62,HJ6#..SOB198612-198708

69357AROD, BACK DOOR OPENING, UPPER

main69357-90A00iBJ60,FJ60,HJ60..SOB198008-198305

69359CUSHION, BACK DOOR LOCK

main69359-90A00iBJ60,FJ60,HJ60..SOB198008-198305

69377ASNAP, BACK DOOR UPPER LOCK ROD

main69377-90A00×3iBJ60,FJ60,HJ60..SOB198008-198305

69452APLATE, BACK DOOR UPPER LOCK STRIKER

main69452-90A00iBJ60,FJ60,HJ60..SOB198008-198305

69721ROD, BACK DOOR LOWER LOCK CONTROL, NO.1

main69721-90A00iBJ60,FJ60,HJ60..SOB198008-198305

69722PAD, BACK DOOR LOCK CONTROL

main69722-90A00iBJ60,FJ60,HJ60..SOB198008-198305

69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)

main69747-20020iBJ60,FJ60,HJ60..SRF..SOB198008-198411

main69747-20020-01iBJ60,FJ62,HJ6#..SOB198411-198708

BLACK,BLACK

69751HOLDER, DOOR LOCK CONTROL KNOB

main69079-90K00-03iFJ62..LHD..SOB198411-198708

SHADOW GRAY,SHADOW GRAY,TRIM1#

main69079-90K00-06iBJ60,FJ62,HJ6#..SOB198411-198708

SEPIA BROWN,SEPIA BROWN,TRIM4#

main69751-20030iBJ60,FJ60,HJ60198008-198201

main69751-20031-03iFJ60,HJ60..WGV; FJ60..LHD..WGV198210-198411

SHADOW GRAY,GRAY,TRIM1#

main69751-20031-06iBJ60,FJ60,HJ60198201-198411

DARK BROWN,BROWN,TRIM4#

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-12030iBJ60,FJ60,HJ60..SOB198008-198305

69766LINK, BACK DOOR LOCK CONTROL, NO.2

main69766-90A00iBJ60,FJ60,HJ60..SOB198008-198305

69775BUTTON, DOOR LOCKING(FOR BACK DOOR)

main69706-90A00-03iFJ62,HJ6#..LUB198503-198708

SHADOW GRAY,SHADOW GRAY,TRIM1#

main69706-90A00-06iFJ62,HJ6#..LUB198503-198708

SEPIA BROWN,SEPIA BROWN,TRIM4#

main69741-20020-03iFJ60..LHD..SOB198305-198411

SHADOW GRAY,GRAY,TRIM1#

main69741-20020-16iBJ60,FJ60,HJ60..SOB198305-198411

DARK BROWN,BROWN,TRIM4#

main69741-90A00-03iFJ6#,HJ60..LUB198305-198503

SHADOW GRAY,GRAY,TRIM1#

main69741-90A00-06iFJ60,HJ60..LUB198011-198305

DARK BROWN,BROWN,TRIM4#

main69741-90A00-16iFJ62,HJ60..LUB198411-198503

SEPIA BROWN,SEPIA BROWN,TRIM4#

main69741-90K00-03iFJ62..LHD..SOB198411-198708

SHADOW GRAY,SHADOW GRAY,TRIM1#

main69741-90K00-06iBJ60,FJ62,HJ6#..SOB198411-198708

SEPIA BROWN,SEPIA BROWN,TRIM4#

69790CONTROL ASSY, BACK DOOR LOCK

main69790-90A00iBJ60,FJ60,HJ60..SOB198008-198305

main69790-90A01iBJ60,FJ6#,HJ60..SOB198408-198501

main69790-90A02iBJ60,FJ62,HJ6#..SOB198501-198708

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906297

main90119-06297

9011906298

main90119-06298

9011908093

main90119-08093

9011908538

main90119-08538

9015950183

main90159-50183

9015960014

main90159-60014

9015960268

main90159-60268

9015960274

main90159-60274

9015980001

main90159-80001

9018906043

main90189-06043

9044512157

main90445-12157

9048010102

main90480-10102

9161140610

main91611-40610

9165140612

main91651-40612

9331515012

main93315-15012

9353054010

main93530-54010

49 parts on this diagram · 2 diagrams in section
