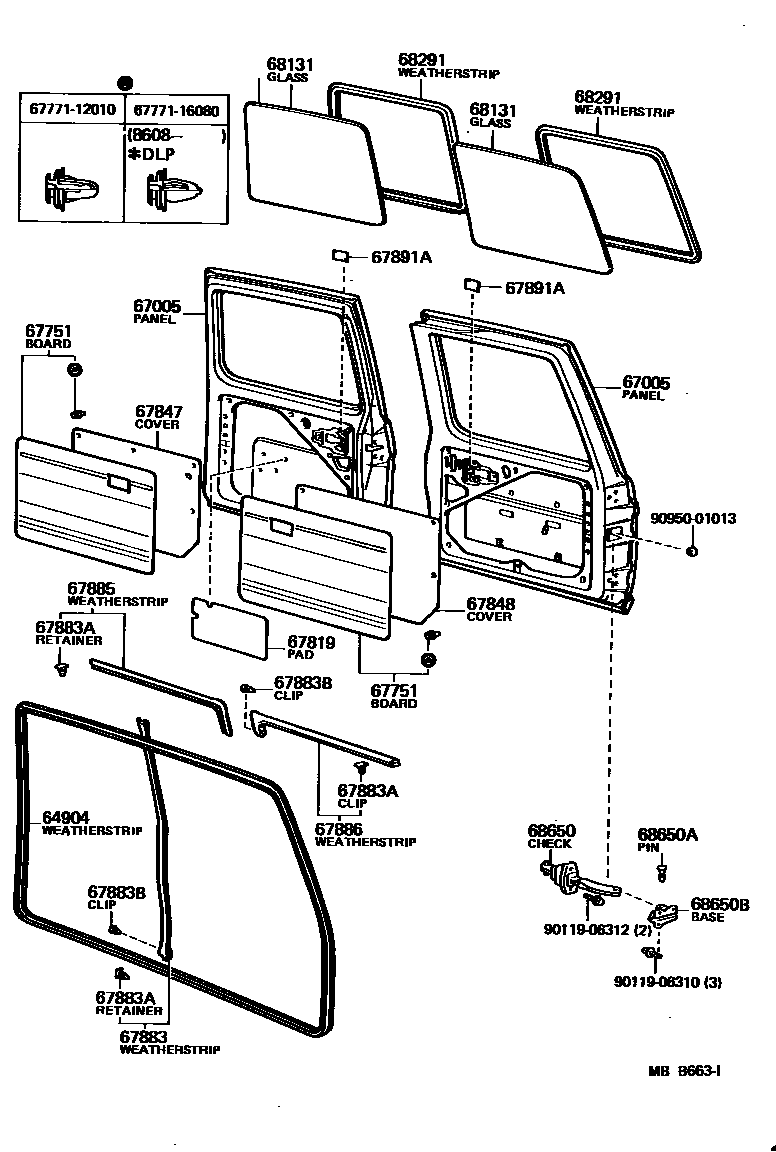

BACK DOOR PANEL & GLASS

0001 1 0003 1

64904WEATHERSTRIP SUB-ASSY, BACK DOOR

main67881-90A00iFJ60,HJ60..LUB198008-198401

main67881-90A02iBJ60,FJ60,HJ60..SOB198008-198401

main67881-90A06iFJ6#,HJ6#..LUB198401-198708

main67881-90A08iBJ60,FJ6#,HJ6#..SOB198401-198708

67005PANEL SUB-ASSY, BACK DOOR

main67005-90A00iBJ60,FJ6#,HJ60..SOB198008-198510

RH

main67005-90A01iFJ60..LUB;HJ60..LUB..(ARL,GEN)198008-198210

W/RR WIPER

main67005-90A02iFJ60..LUB;HJ60..LHD..LUB..EUR;HJ60..LUB..(ARL,GEN)198008-198210

W/O RR WIPER

main67005-90A03iHJ60..LUB..EUR198008-198210

24V,W/RR WIPER

main67005-90A04iFJ60..LUB;HJ60..LUB..(ARL,GEN)198210-198212

W/RR WIPER

main67005-90A05iFJ60..LUB;HJ60..LHD..LUB..EUR;HJ60..LUB..(ARL,GEN)198210-198212

W/O RR WIPER

main67005-90A06iHJ60..LUB..EUR198210-198212

24V,W/RR WIPER

main67005-90A07iHJ60..LHD..LUB..EUR198210-198503

W/O RR WIPER

main67005-90A08iFJ60,HJ60..LHD..LUB..GEN198210-198503

W/RR WIPER

main67005-90A09iHJ60..LUB..EUR198411-198503

W/RR WIPER

main67005-90A09iHJ60..LUB..EUR198212-198411

24V,W/RR WIPER

main67005-90A10iBJ60,FJ62,HJ60..SOB198411-198510

RH,W/*DEF

main67005-90A14iHJ60..LHD..LUB..EUR198503-198509

W/O RR WIPER

main67005-90A15iFJ62,HJ6#..LUB..(ARL,GEN,ME)198503-198708

W/RR WIPER

main67005-90A16iHJ60..LUB..EUR198503-198509

W/RR WIPER

main67005-90A18iBJ60,FJ62,HJ6#..WGV198510-198511

RH,W/RR WIPER

main67005-90A18iFJ62,HJ60..WGG..SOB198510-198511

RH,W/*DEF

main67005-90A20iFJ62,HJ60..RHD..LUB..GEN198510-198708

W/*DEF

main67005-90A22iHJ60..LHD..LUB..EUR198509-198708

W/O RR WIPER

main67005-90A23iHJ6#..LUB..EUR198509-198708

W/RR WIPER

main67005-90A25iBJ60,FJ62,HJ6#..WGV198511-198708

RH,W/*DEF

main67005-90A25iBJ60,FJ62,HJ6#..WGV198511-198708

RH,W/RR WIPER

main67005-90A26iFJ62,HJ60..WGG..SOB198510-198708

RH

main67005-90A27iFJ62,HJ60..RHD..LUB..GEN198510-198708

W/*DEF,BL ACK DOOR OPENER

main67006-90A00iBJ60,FJ60,HJ60..SOB..(EUR,GEN)198008-198411

LH

main67006-90A02iFJ60,HJ60..SOB..ARL198008-198411

LH

main67006-90A06iBJ60,FJ62,HJ60..SOB..(EUR,GEN,ME)198411-198510

LH

main67006-90A08iFJ62,HJ60..SOB..ARL198411-198510

LH

main67006-90A08iFJ62,HJ60..SOB..ARL198510-198708

LH,W/O LICENSE PLATE CLAMP

main67006-90A09iFJ62,HJ60..WGG..SOB198510-198511

LH,W/RR WIPER

main67006-90A09iBJ60,FJ62,HJ6#..WGV198411-198511

LH,W/*DEF

main67006-90A11iFJ62,HJ60..SOB..ARL198411-198510

LH,W/*DEF

main67006-90A11iFJ62,HJ60..SOB..ARL198510-198708

LH,W/O LICENSE CLAMP,W/*DEF

main67006-90A13iBJ60,FJ62,HJ6#..SOB198510-198708

LH

main67006-90A14iFJ62,HJ60..WGG..SOB198511-198708

LH,W/RR WIPER

main67006-90A14iFJ62,HJ60..WGG..SOB198511-198708

LH,W/*DEF

main67006-90A21iBJ60,FJ62,HJ60..SOB..(GEN,ME)198608-198708

LH,W/*AFT

main67006-90A23iBJ60,FJ62,HJ60..SOB..(GEN,ME)198608-198708

LH,W/*AFT,*DEF

67751BOARD, BACK DOOR TRIM

main64780-90A00-03iBJ60..ME198411-198708

RH,SHADOW GRAY,SHADOW GRAY,TRIM1#

main64780-90A00-06iBJ60,FJ60,HJ60..SOB198008-198411

RH,D-BROWN,DARK BROWN,TRIM4#

main64780-90A00-16iBJ60,FJ62,HJ6#..WGV198411-198708

RH,SEPIA BROWN,SEPIA BROWN,TRIM4#

main64780-90A03-03iHJ60..HRF..SOB198510-198708

RH,SHADOW GRAY,SHADOW GRAY,TRIM1#

main64780-90A03-06iHJ60..HRF..SOB198510-198708

RH,SEPIA BROWN,SEPIA BROWN,TRIM4#

main64780-90A04-03iFJ62..WGG..SOB198510-198608

DLX PACKAGE,RH,SHADOW GRAY,SHADOW GRAY,TRIM1#

main64780-90A04-06iFJ62..WGG..SOB198510-198608

DLX PACKAGE,RH,SEPIA BROWN,SEPIA BROWN,TRIM4#

main64780-90A05-03iFJ62..WGG..SOB198608-198708

*DLP,RH,SHADOW GRAY,SHADOW GRAY,TRIM1#

main64780-90A05-06iFJ62..WGG..SOB198608-198708

*DLP,RH,SEPIA BROWN,SEPIA BROWN,TRIM4#

main64790-90A00-03iFJ62..LHD..WGV198411-198708

LH,SHADOW GRAY,SHADOW GRAY,TRIM1#

main64790-90A00-06iBJ60,FJ60,HJ60..SOB198008-198411

LH,D-BROWN,DARK BROWN,TRIM4#

main64790-90A00-16iBJ60,FJ62,HJ6#..WGV198411-198708

LH,SEPIA BROWN,SEPIA BROWN,TRIM4#

main64790-90A01-03iHJ60..HRF..SOB198510-198708

LH,SHADOW GRAY,SHADOW GRAY,TRIM1#

main64790-90A01-06iFJ62..WGG..SRF..SOB198510-198708

LH,SEPIA BROWN,SEPIA BROWN,TRIM4#

main64790-90A02-03iFJ62..WGG..SOB198510-198608

DLX PACKAGE,RH,SHADOW GRAY,SHADOW GRAY,TRIM1#

main64790-90A02-06iFJ62..WGG..SOB198510-198608

DLX PACKAGE,RH,SEPIA BROWN,SEPIA BROWN,TRIM4#

main64790-90A03-03iFJ62..WGG..SOB198608-198708

*DLP,LH,SHADOW GRAY,SHADOW GRAY,TRIM1#

main64790-90A03-03iBJ60..ME198702-198708

LH,SHADOW GRAY,SHADOW GRAY,TRIM1#

main64790-90A03-06iFJ62..WGG..SOB198608-198708

*DLP,LH,SEPIA BROWN,SEPIA BROWN,TRIM4#

67819PAD, BACK DOOR OUTSIDE PANEL

main67819-90A00iBJ60,FJ6#,HJ6#..SOB198008-198708

67847COVER, BACK DOOR SERVICE HOLE, RH

main67847-90A00iBJ60,FJ6#,HJ6#..SOB198008-198708

67848COVER, BACK DOOR SERVICE HOLE, LH

main67848-90A00iBJ60,FJ60,HJ60..SOB198008-198708

67883WEATHERSTRIP, BACK DOOR, CENTER

main67884-90A00iBJ60,FJ60,HJ60..SOB198008-198708

67883ARETAINER, BACK DOOR WEATHERSTRIP

main67868-30040iBJ60,FJ6#,HJ6#..SOB198008-198708

67883BCLIP, BACK DOOR WEATHERSTRIP

main67868-30030-01iBJ60,FJ60,HJ60..SOB198008-198305

BLACK

main67868-30030-01iBJ60,FJ6#,HJ6#..SOB198305-198708

BLACK,BLACK

67885WEATHERSTRIP, BACK DOOR, RH

main67881-90A04iBJ60,FJ6#,HJ6#..SOB198008-198708

67886WEATHERSTRIP, BACK DOOR, LH

main67882-90A00iBJ60,FJ6#,HJ6#..SOB198008-198708

67891ASEAL, BACK DOOR

main67891-90A01iBJ60,FJ62,HJ6#..SOB198608-198708

68131GLASS, BACK DOOR

main68131-90A00iFJ60..WGV..LUB198008-198608

*EHT,T=4.0,*TEM,T=4.0

main68131-90A00iFJ62..RHD..5F..GEN198510-198708

*EHT,T=4.0,*EHT,T=4.0

main68131-90A01iFJ60,HJ60..LUB..ARL198008-198608

*EHT,T=4.0,*EHT,T=4.0

main68131-90A01iFJ62..RHD..5F..GEN198510-198708

*EHT,T=4.0,*EHT,T=4.0,W/*VW

main68131-90A02iHJ60..LUB..GEN;HJ60..LHD..LUB..EUR;FJ60..LUB..(EUR,GEN)198008-198608

*TT,T=4.0

main68131-90A03iFJ60,HJ60..LUB..(EUR,GEN)198008-198608

*EHTT,T=4.0

main68131-90A07iBJ60,FJ6#,HJ60..SOB198008-198608

RH,*TEM,T=4.0

main68131-90A08iBJ60,FJ6#,HJ6#..SOB..(EUR,GEN,ME)198008-198608

RH,*TT,T=4.0

main68131-90A09iHJ6#..LUB..EUR198008-198608

*TT,T=3.5,24V,*EHTT,T=4.0

main68131-90A12iBJ60,FJ62,HJ60..SOB198411-198608

RH,*EHT,T=4.0

main68131-90A13iBJ60..LHD..GEN198411-198708

*EHTT,T=3.5,RH,*EHTT,T=4.0

main68131-90A15iFJ62,HJ60..LUB..(GEN,ME)198510-198608

BRONZE,*TEM,T=4.0

main68131-90A16iFJ62,HJ60..LUB..(GEN,ME)198510-198608

BRONZE,*EHT,T=4.0

main68131-90A17iFJ62..WGG..SOB198510-198608

RH,BRONZE,*TEM,T=4.0

main68131-90A18iFJ62..WGG..SOB198510-198608

RH,BRONZE,*EHT,T=4.0

main68131-90A19iHJ6#..LHD..LUB..EUR198608-198708

*TT,T=3.5,*TT,T=3.5

main68131-90A20iFJ62,HJ61..HRF..ARL198608-198708

*EHTT,T=3.5,*EHTT,T=3.5

main68131-90A21iFJ62,HJ6#..SRF..LUB..ARL198608-198708

*TEM,T=3.5,*TEM,T=3.5

main68131-90A22iFJ62,HJ6#..SRF..LUB..ARL198608-198708

*EHT,T=3.5,*EHT,T=3.5

main68131-90A23iBJ60..GEN198608-198708

*TEM,T=3.5,RH,*TEM,T=3.5

main68131-90A24iHJ6#..SRF..SOB..EUR198608-198708

*TT,T=3.5,RH,*TT,T=3.5

main68131-90A25iHJ6#..LUB..EUR198608-198702

*EHTT,T=3.5,*EHTT,T=3.5

main68131-90A27iFJ62,HJ60..WGV..(ARL,GEN,ME)198608-198708

*EHT,T=3.5,RH,*EHT,T=3.5

main68131-90A28iBJ60,FJ62,HJ6#..SOB..(EUR,GEN,ME)198608-198708

*EHTT,T=3.5,RH,*EHTT,T=3.5

main68131-90A29iFJ62,HJ60..LUB..(GEN,ME)198608-198708

*TEM,T=3.5,BRONZE,BRONZE,*TEM,T=3.5

main68131-90A30iFJ62,HJ60..LUB..(GEN,ME)198608-198708

*EHT,T=3.5,BRONZE,BRONZE,*EHT,T=3.5

main68131-90A31iFJ62..WGG..SOB198608-198708

*TEM,T=3.5,BRONZE,RH,BRONZE,*TEM,T=3.5

main68131-90A32iFJ62..WGG..SOB198608-198708

*EHT,T=3.5,BRONZE,RH,BRONZE,*EHT,T=3.5

main68131-90A34iHJ6#..LUB..EUR198702-198708

*EHTT,T=3.5,*EHTT,T=3.5

main68132-90A00iBJ60,FJ62,HJ60..WGV..(ARL,GEN,ME)198008-198608

LH,*TEM,T=4.0

main68132-90A01iBJ60,FJ60,HJ60..SOB..(EUR,GEN)198008-198608

LH,*TT,T=4.0

main68132-90A04iBJ60,FJ62,HJ60..SOB..(EUR,GEN,ME)198411-198708

LH,*EHTT,T=4.0

main68132-90A05iBJ60,FJ62,HJ60..SOB198411-198608

LH,*EHT,T=4.0

main68132-90A07iFJ62..WGG..SOB198510-198608

LH,BRONZE,*TEM,T=4.0

main68132-90A08iFJ62..WGG..SOB198510-198608

LH,BRONZE,*EHT,T=4.0

main68132-90A09iFJ62,HJ60..WGV..(ARL,GEN,ME)198608-198708

*TEM,T=3.5,LH,*TEM,T=3.5

main68132-90A10iHJ6#..SRF..SOB..EUR198608-198708

*TT,T=3.5,LH,*TT,T=3.5

main68132-90A11iFJ62,HJ60..WGV..(ARL,GEN,ME)198608-198708

*EHT,T=3.5,LH,*EHT,T=3.5

main68132-90A12iBJ60,FJ62,HJ6#..SOB..(EUR,GEN,ME)198608-198708

*EHTT,T=3.5,LH,*EHTT,T=3.5

main68132-90A13iFJ62..WGG..SOB198608-198708

*TEM,T=3.5,BRONZE,LH,BRONZE,*TEM,T=3.5

main68132-90A14iFJ62..WGG..SOB198608-198708

*EHT,T=3.5,BRONZE,LH,BRONZE,*EHT,T=3.5

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-90A01iFJ6#,HJ6#..LUB198305-198708

main68291-90A01iFJ60,HJ60..LUB198008-198305

W/MOULDING

main68291-90A02iBJ60,FJ6#,HJ6#..SOB198008-198708

RH

main68292-90A00iBJ60,FJ6#,HJ6#..SOB198008-198708

LH

68650CHECK ASSY, BACK DOOR

main68650-90A01iBJ60,FJ60,HJ60..SOB198008-198708

RH

main68650-90A01iFJ60,HJ60..SOB..ARL198011-198411

main68650-90A01iFJ62,HJ60..SOB..ARL198411-198510

W/RR *LPL,W/O *DEF

main68650-90A01iFJ62,HJ60..SOB..ARL198510-198708

W/O LICENSE PLATE CLAMP,*DEF

main68650-90A02iBJ60,FJ62,HJ6#..SOB198411-198708

RH,W/*DEF,*EL

main68650-90A02iFJ62,HJ60..SOB..ARL198510-198708

LH,W/O LICENSEPLATECLAMP,W/*EL

main68660-90A01iBJ60,FJ60,HJ60..SOB..(EUR,GEN)198008-198708

LH

main68660-90A01iFJ62,HJ60..SOB..ARL198411-198510

LH,W/*DEF

main68660-90A02iBJ60,FJ62,HJ60..SOB..(GEN,ME)198608-198708

LH,W/*AFT,

main68660-90A03iBJ60,FJ62,HJ60..SOB..(GEN,ME)198608-198708

LH,W/*AFT,*DEF

68650APIN(FOR BACK DOOR CHECK)

main68617-12010iBJ60,FJ6#,HJ60..SOB198410-198507

main68617-22010iBJ60,FJ60,HJ60..SOB198008-198410

main68617-90A00iBJ60,FJ62,HJ6#..SOB198507-198708

68650BBASE, BASE DOOR CHECK

main68611-90A00iBJ60,FJ60,HJ60..SOB198008-198708

RH

main68612-90A00iBJ60,FJ60,HJ60..SOB198008-198708

LH

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

9011906310

main90119-06310

9011906312

main90119-06312

9095001013

main90950-01013

22 parts on this diagram · 2 diagrams in section
