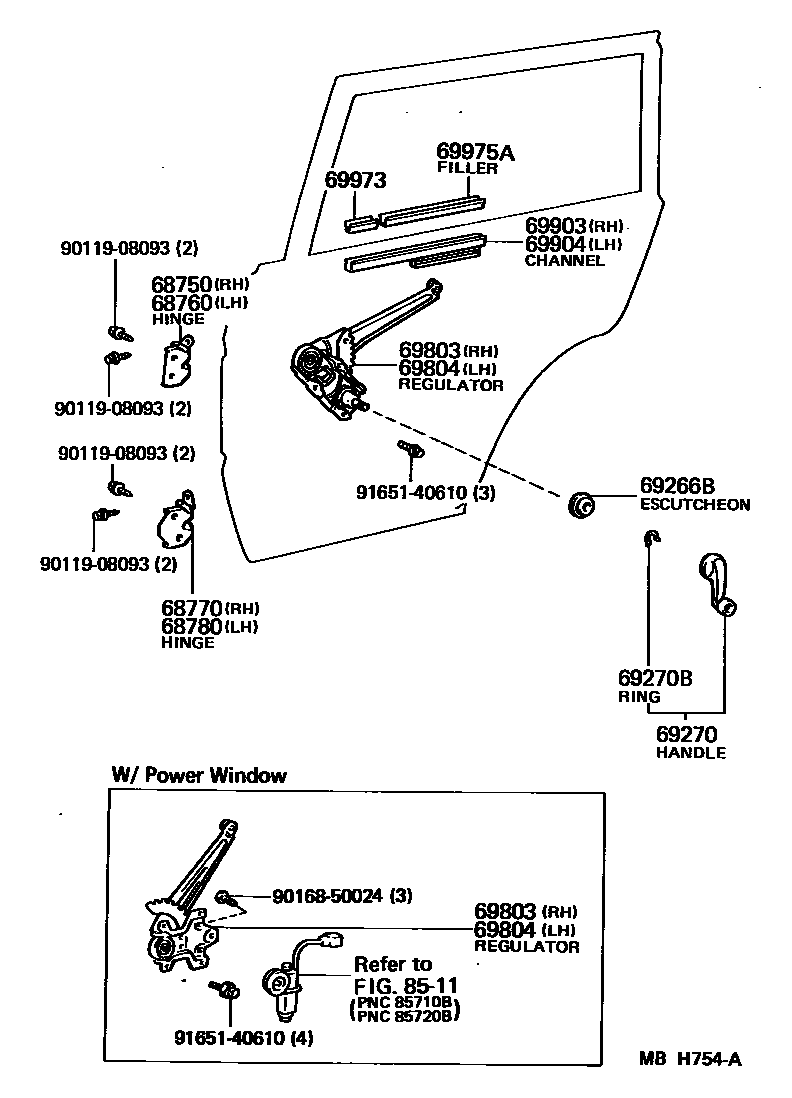

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68710-30080iBJ60,FJ6#,HJ6#198008-198708

68760HINGE ASSY, REAR DOOR, UPPER LH

main68720-30020iBJ60,FJ6#,HJ6#198008-198708

68770HINGE ASSY, REAR DOOR, LOWER RH

main68730-14020iBJ60,FJ6#,HJ6#198008-198708

68780HINGE ASSY, REAR DOOR, LOWER LH

main68740-14020iBJ60,FJ6#,HJ6#198008-198708

69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)

main69266-22010-08×2iBJ60,FJ6#,HJ6#198008-198610

NATURAL,NATURAL WHITE

main69272-30010-08×2iHJ60..RHD..EUR198103-198708

ENGLAND SPEC,NATURAL,NATURAL WHITE

main69285-22010-08×2iBJ60,FJ62,HJ6#198610-198708

NATURAL,NATURAL WHITE

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-12010-03×2iFJ6#,HJ6#..WGG..(ARL,GEN,ME); FJ6#..LHD..WGV198210-198708

SHADOW GRAY,GRAY,TRIM1#

main69260-12010-26×2iBJ60,FJ60,HJ60..ARL,GEN198008-198411

DARK BROWN,BROWN,TRIM4#

main69260-12010-46×2iBJ60,FJ62,HJ6#..ARL,GEN,ME198411-198708

SEPIA BROWN,BROWN,TRIM4#

main69260-12030-01×2iHJ60..RHD..EUR198103-198210

ENGLAND SPEC,BLACK,BLACK,TRIM1#

main69260-12030-03×2iHJ60..RHD..EUR198210-198708

ENGLAND SPEC,SHADOW GRAY,GRAY,TRIM1#

main69260-12030-04×2iHJ60..RHD..EUR198103-198210

ENGLAND SPEC,BLUE,BLUE

main69260-12030-06×2iHJ60..RHD..EUR198103-198411

ENGLAND SPEC,DARK BROWN,BROWN,TRIM4#

main69260-12030-16×2iHJ60..RHD..EUR198411-198708

ENGLAND SPEC,SEPIA BROWN,SEPIA BROWN,TRIM4#

main69260-20050-03×2iFJ60,HJ6#..WGG..EUR198210-198708

SHADOW GRAY,GRAY,TRIM1#

main69260-20050-06×2iFJ60,HJ60..EUR198008-198411

DARK BROWN,BROWN,TRIM4#

main69260-20050-26×2iHJ6#..EUR198411-198708

SEPIA BROWN,SEPIA BROWN,TRIM4#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iBJ60,FJ6#,HJ6#198008-198708

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-90A00iFJ62,HJ6#..WGG; FJ62..WGV..ME198411-198708

W/POWER WINDOW

main69830-90A00iBJ60,FJ60,HJ60198008-198409

main69830-90A01iBJ60,FJ6#,HJ6#198409-198708

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-90A00iFJ62,HJ6#..WGG; FJ62..WGV..ME198411-198708

W/POWER WINDOW

main69840-90A00iBJ60,FJ60,HJ60198008-198409

main69840-90A01iBJ60,FJ6#,HJ6#198409-198708

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-90A00iBJ60,FJ60,HJ60198008-198410

main69905-90A02iBJ60,FJ6#,HJ60198410-198510

main69905-90A03iBJ60,FJ62,HJ6#198510-198708

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-90A00iBJ60,FJ60,HJ60198008-198410

main69906-90A02iBJ60,FJ6#,HJ60198410-198510

main69906-90A03iBJ60,FJ62,HJ6#198510-198708

69973FILLER, REAR DOOR GLASS CHANNEL, NO.2

main69973-90A00×2iBJ60,FJ62,HJ6#; FJ62,HJ6#198610-198708

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-90A00×2iBJ60,FJ60,HJ60198008-198410

main69975-90A01×2iBJ60,FJ6#,HJ6#198410-198708

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9011908093

main90119-08093

9016850024

main90168-50024

9165140610

main91651-40610

17 parts on this diagram · 1 diagram in section
