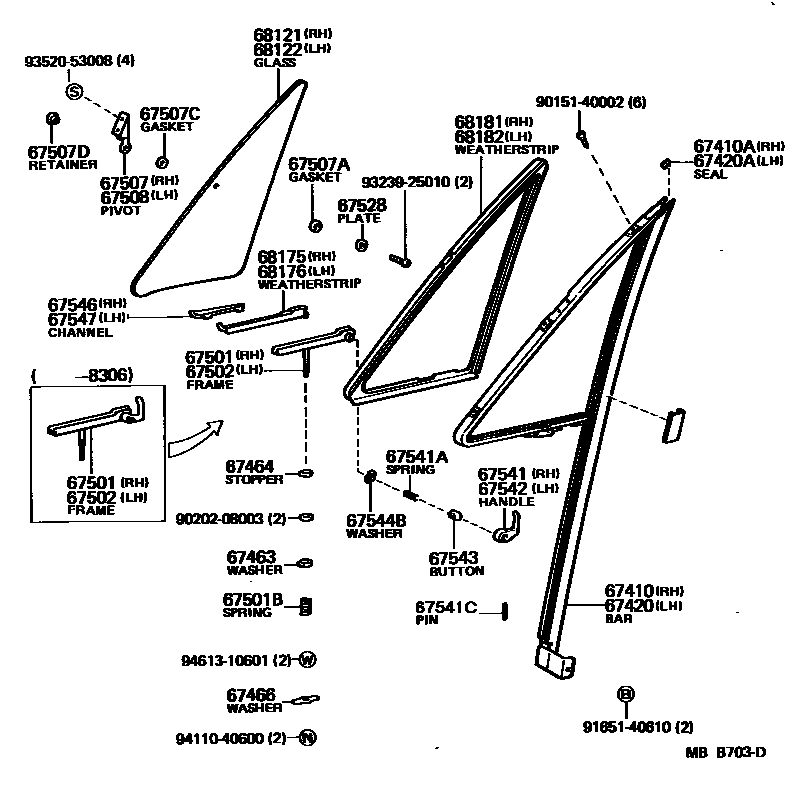

FRONT DOOR VENTILATOR WINDOW

67410BAR ASSY, FRONT DOOR WINDOW DIVISION, RH

main67503-90A00iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67410ASEAL, FRONT DOOR DIVISION BAR, RH NO.1

main67533-90A00iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67420BAR ASSY, FRONT DOOR WINDOW DIVISION, LH

main67504-90A00iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67420ASEAL, FRONT DOOR DIVISION BAR, LH NO.1

main67534-90A00iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67463WASHER, FRONT DOOR VENTILATING WIHDOW LOWER PIVOT

main67463-20011×2iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67464STOPPER, FRONT DOOR VENTILATING WINDOW OPENING

main67577-90A00×2iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67466WASHER, LOCK(FOR VENT WINDOW GLASS FRAME)

main67466-89101×2iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67501FRAME SUB-ASSY, VENT WINDOW GLASS, RH

main67505-90A00iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67501BSPRING, COMPRESSION(FOR VENT WINDOW GLASS FRAME)

main90501-40205×2iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67502FRAME SUB-ASSY, VENT WINDOW GLASS, LH

main67506-90A00iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67507PIVOT SUB-ASSY, VENT WINDOW, UPPER RH

main67507-90A00iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67507AGASKET, VENT WINDOW PIVOT, UPPER NO.1

main90430-07001×2iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67507CGASKET, VENT WINDOW PIVOT, UPPER NO.2

main90430-04003×2iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67507DRETAINER, VENT WINDOW PIVOT, UPPER

main62735-89101×2iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67508PIVOT SUB-ASSY, VENT WINDOW, UPPER LH

main67508-90A00iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67528PLATE, VENT WINDOW UPPER PIVOT

main67528-89101×2iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67541HANDLE, VENTILATING WINDOW LOCK, RH

main67551-89104×2iBJ60,FJ6#,HJ60..ARL,GEN,ME198306-198510

67541ASPRING, COMPRESSION(FOR VENTILATING WINDOW LOCK HANDLE)

main90501-05014×2iBJ60,FJ6#,HJ6#..ARL,GEN,ME198306-198708

67541CPIN, VENTILATING WINDOW LOCK HANDLE

main90245-02001×2iBJ60,FJ6#,HJ60..ARL,GEN,ME198306-198510

67542HANDLE, VENTILATING WINDOW LOCK, LH

main67552-89104×2iBJ60,FJ6#,HJ60..ARL,GEN,ME198306-198510

67543BUTTON, VENTILATING WINDOW LOCK HANDLE PUSH

main67543-12010×2iBJ60,FJ6#,HJ6#..ARL,GEN,ME198306-198708

67544BWASHER, PLATE

main90206-11029×2iBJ60,FJ6#,HJ6#..ARL,GEN,ME198306-198708

67546CHANNEL, VENT WINDOW DRIP, RH

main67553-90A00iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

67547CHANNEL, VENT WINDOW DRIP, LH

main67554-90A00iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

68121GLASS, VENT WINDOW, RH

main68121-90A00iBJ60,FJ6#,HJ60..WGV..(GEN,ME); FJ6#,HJ6#..SRF..ARL198008-198708

*TEM,T=4.0,*TEM,T=4.0

main68121-90A01iBJ60,FJ6#,HJ60..GEN,ME198008-198708

*TT,T=4.0,*TT,T=4.0

main68121-90A02iFJ62,HJ60..WGG..(GEN,ME)198510-198708

*TEM,T=4.0,BRONZE,*TEM,BRONZE,T=4.0

68122GLASS, VENT WINDOW, LH

main68122-90A00iBJ60,FJ6#,HJ60..WGV..(GEN,ME); FJ6#,HJ6#..SRF..ARL198008-198708

*TEM,T=4.0,*TEM,T=4.0

main68122-90A01iBJ60,FJ6#,HJ60..GEN,ME198008-198708

*TT,T=4.0,*TT,T=4.0

main68122-90A02iFJ62,HJ60..WGG..(GEN,ME)198510-198708

*TEM,T=4.0,BRONZE,*TEM,BRONZE,T=4.0

68175WEATHERSTRIP, VENT WINDOW FRAME, RH

main68175-90A00iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

68176WEATHERSTRIP, VENT WINDOW FRAME, LH

main68176-90A00iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

68181WEATHERSTRIP, VENT WINDOW, NO.1 RH

main68181-90A00iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

68182WEATHERSTRIP, VENT WINDOW, NO.1 LH

main68182-90A00iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

9015140002

main90151-40002

9020208003

main90202-08003

9165140610

main91651-40610

9323925010

main93239-25010

9352053008

main93520-53008

9411040600

main94110-40600

9461310601

main94613-10601

37 parts on this diagram · 1 diagram in section
