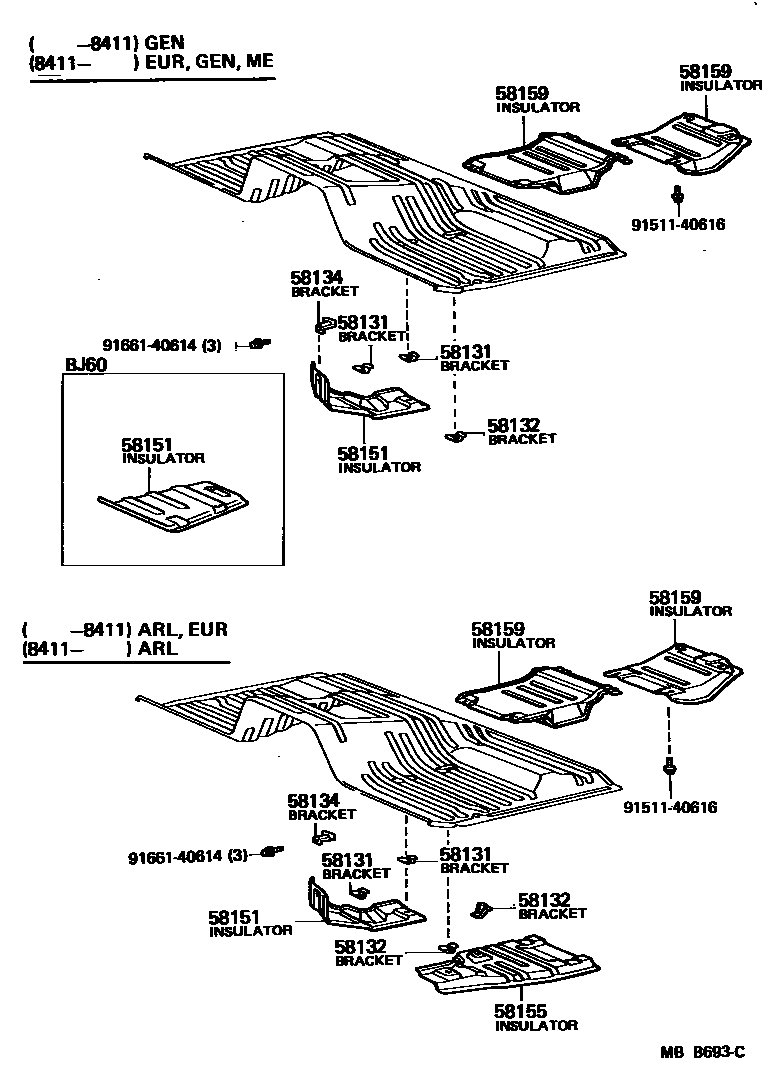

FLOOR INSULATOR

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-90A00×2iBJ60198008-198608

main58231-90A00iFJ6#,HJ6#198008-198708

main58344-90A01iBJ60198608-198708

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58131-90A00iFJ60..ARL,EUR198210-198411

FR

main58132-90A00iFJ60..ARL,EUR198210-198411

RR

58134BRACKET, CENTER FLOOR HEAT INSULATOR, NO.1

main58131-90A00iBJ60,FJ60,HJ60198008-198411

RH

main58232-90A00iBJ60,FJ6#,HJ6#198008-198606

LH

main58345-90A00iBJ60,FJ62,HJ6#198411-198708

RH

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58153-90A00iBJ60198008-198708

main58155-90A00iFJ6#,HJ6#198008-198708

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58151-90A00iFJ60,HJ60..ARL,EUR198008-198210

main58151-90A01iFJ60..ARL,EUR; HJ60..ARL198210-198411

main58151-90A02iFJ62,HJ60..4FC..ARL198411-198510

main58151-90A03iFJ62,HJ6#..5F..ARL198510-198708

main58151-90A04iFJ62,HJ6#..4FC..ARL198510-198708

58159INSULATOR, MAIN MAFFLAR HEAT

main58041-90A00iBJ60,FJ6#,HJ60198008-198510

FR

main58041-90A01iBJ60,FJ62,HJ6#198510-198708

FR

main58043-90A00iBJ60,FJ6#,HJ6#198008-198708

RR

9151140616

main91511-40616

9166140614

main91661-40614

8 parts on this diagram · 1 diagram in section
