INSTRUMENT PANEL & GLOVE COMPARTMENT

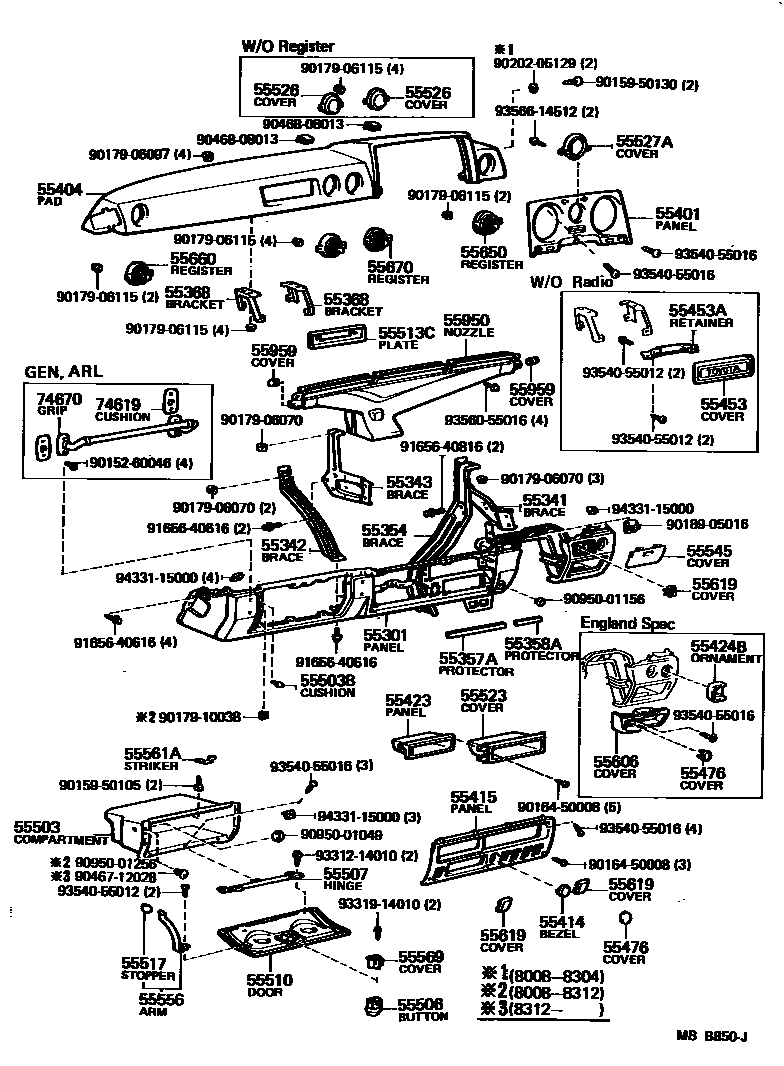

Parts diagram
55301PANEL SUB-ASSY, INSTRUMENT
main55301-90A02i198008-198210
W/THROTTLE BUTTON
main55301-90A05i198008-198210
W/O THROTTLE BUTTON
main55301-90A10i198008-198210
W/O THROTTLE BUTTON
main55301-90A11i198008-198210
W/THROTTLE BUTTON
main55301-90A14i198008-198210
12V BATTERY
main55301-90A16i198110-198210
24V BATTERY,W/EDIC
main55301-90A19-03i198210-198411
24V BATTERY,GRAY,GRAY,TRIM1#
main55301-90A19-05i198008-198411
24V BATTERY,BEIGE,BEIGE,TRIM4#
main55301-90A21-03i198210-198411
24V BATTERY,W/EDIC,GRAY,GRAY,TRIM1#
main55301-90A21-05i198008-198110
24V BATTERY,W/EDIC,BEIGE,BEIGE,TRIM4#
main55301-90A28i198103-198210
24V BATTERY,ENGLAND SPEC
main55301-90A29-03i198210-198411
W/THROTTLE BUTTON,GRAY,GRAY,TRIM1#
main55301-90A29-05i198210-198411
W/THROTTLE BUTTON,BEIGE,BEIGE,TRIM4#
main55301-90A30-03i198210-198411
W/THROTTLE BUTTON,GRAY,GRAY,TRIM1#
main55301-90A30-05i198210-198411
W/THROTTLE BUTTON,BEIGE,BEIGE,TRIM4#
main55301-90A32-03i198210-198411
W/O THROTTLE BUTTON,GRAY,GRAY,TRIM1#
main55301-90A32-05i198210-198411
W/O THROTTLE BUTTON,BEIGE,BEIGE,TRIM4#
main55301-90A34-03i198210-198411
W/O THROTTLE BUTTON,GRAY,GRAY,TRIM1#
main55301-90A34-05i198210-198411
W/O THROTTLE BUTTON,BEIGE,BEIGE,TRIM4#
main55301-90A36-03i198210-198411
W/THROTTLE BUTTON,GRAY,GRAY,TRIM1#
main55301-90A36-05i198210-198411
W/THROTTLE BUTTON,BEIGE,BEIGE,TRIM4#
main55301-90A37-03i198210-198411
24V BATTERY,GRAY,GRAY,TRIM1#
main55301-90A37-05i198210-198411
24V BATTERY,BEIGE,BEIGE,TRIM4#
main55301-90A38-03i198210-198411
24V BATTERY,W/EDIC,GRAY,GRAY,TRIM1#
main55301-90A38-05i198210-198411
24V BATTERY,W/EDIC,BEIGE,BEIGE,TRIM4#
main55301-90A39-03i198210-198411
24V BATTERY,ENGLAND SPEC,GRAY,GRAY,TRIM1#
main55301-90A39-05i198210-198411
24V BATTERY,ENGLAND SPEC,BEIGE,BEIGE,TRIM4#
main55301-90A40-03i198210-198411
W/O THROTTLE BUTTON,GRAY,GRAY,TRIM1#
main55301-90A40-05i198210-198411
W/O THROTTLE BUTTON,BEIGE,BEIGE,TRIM4#
main55301-90A42-03i198411-198510
GRAY,GRAY,TRIM1#
main55301-90A42-05i198411-198510
BEIGE,BEIGE,TRIM4#
main55301-90A43-03i198411-198510
W/ASSIST GRIP,GRAY,GRAY,TRIM1#
main55301-90A43-05i198411-198510
W/ASSIST GRIP,BEIGE,BEIGE,TRIM4#
main55301-90A44-03i198411-198510
GRAY,GRAY,TRIM1#
main55301-90A44-05i198411-198510
BEIGE,BEIGE,TRIM4#
main55301-90A45-03i198411-198510
W/ASSIST GRIP,GRAY,GRAY,TRIM1#
main55301-90A45-05i198411-198510
W/ASSIST GRIP,BEIGE,BEIGE,TRIM4#
main55301-90A46-03i198411-198510
ENGLAND SPEC,GRAY,GRAY,TRIM1#
main55301-90A46-05i198411-198510
ENGLAND SPEC,BEIGE,BEIGE,TRIM4#
main55301-90A49-03i198411-198510
GRAY,GRAY,TRIM1#
main55301-90A49-05i198411-198510
BEIGE,BEIGE,TRIM4#
main55301-90A50-03i198411-198510
W/ASSIST GRIP,GRAY,GRAY,TRIM1#
main55301-90A50-05i198411-198510
W/ASSIST GRIP,BEIGE,BEIGE,TRIM4#
main55301-90A52-03i198411-198510
GRAY,GRAY,TRIM1#
main55301-90A52-05i198411-198510
BEIGE,BEIGE,TRIM4#
main55301-90A53-03i198411-198510
W/ASSIST GRIP,GRAY,GRAY,TRIM1#
main55301-90A53-05i198411-198510
W/ASSIST GRIP,BEIGE,BEIGE,TRIM4#
main55301-90A56-03i198510-198708
GRAY,GRAY,TRIM1#
main55301-90A56-05i198510-198708
BEIGE,BEIGE,TRIM4#
main55301-90A57-03i198510-198708
W/ASSIST GRIP,GRAY,GRAY,TRIM1#
main55301-90A57-05i198510-198708
W/ASSIST GRIP,BEIGE,BEIGE,TRIM4#
main55301-90A58-05i198510-198708
BEIGE,BEIGE,TRIM4#
main55301-90A59-05i198510-198708
W/ASSIST GRIP,BEIGE,BEIGE,TRIM4#
main55301-90A60-03i198510-198708
GRAY,GRAY,TRIM1#
main55301-90A60-05i198510-198708
BEIGE,BEIGE,TRIM4#
main55301-90A61-03i198510-198708
ENGLAND SPEC,GRAY,GRAY,TRIM1#
main55301-90A61-05i198510-198708
ENGLAND SPEC,BEIGE,BEIGE,TRIM4#
main55301-90A64-03i198510-198708
GRAY,GRAY,TRIM1#
main55301-90A64-05i198510-198708
BEIGE,BEIGE,TRIM4#
main55301-90A65-03i198510-198708
W/ASSIST GRIP,GRAY,GRAY,TRIM1#
main55301-90A65-05i198510-198708
W/ASSIST GRIP,BEIGE,BEIGE,TRIM4#
main55301-90A66-03i198510-198708
GRAY,GRAY,TRIM1#
main55301-90A66-05i198510-198708
BEIGE,BEIGE,TRIM4#
main55301-90A67-03i198510-198708
GRAY,GRAY,TRIM1#
main55301-90A67-05i198510-198708
BEIGE,BEIGE,TRIM4#
main55301-90A68-03i198510-198708
W/ASSIST GRIP,GRAY,GRAY,TRIM1#
main55301-90A68-05i198510-198708
W/ASSIST GRIP,BEIGE,BEIGE,TRIM4#
55341BRACE, INSTRUMENT PANEL, NO.1
main55341-90A00i198008-198708
12V BATTERY
main55341-90A01i198110-198708
24V BATTERY
main55341-90A02i198008-198510
12V BATTERY
main55341-90A03i198110-198708
24V BATTERY
55342BRACE, INSTRUMENT PANEL, NO.2
main55342-90A00i198008-198708
main55342-90A01i198008-198708
55343BRACE, INSTRUMENT PANEL, NO.3
main55344-90A00i198008-198708
main55344-90A01i198008-198708
55354BRACE, INSTRUMENT PANEL TO FLOOR
main55351-90A00i198008-198708
12V BATTERY
main55351-90A01i198008-198708
12V BATTERY
main55351-90A02i198110-198510
24V BATTERY
main55351-90A03i198110-198708
24V BATTERY
55357APROTECTOR, EDGE, NO.1
main55357-90A00i198008-198708
55358APROTECTOR, EDGE, NO.2
main55358-90A01i198103-198708
ENGLAND SPEC
55368BRACKET, RADIO TUNER MOUNTING
main55366-90A00i198702-198708
RH
main55366-90A01i198510-198708
RH,W/STEREO
main55368-90A00i198702-198708
LH
main55368-90A01i198210-198510
LH,W/STEREO
main55368-90A02i198510-198702
LH,W/STEREO
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
main55410-90A03i198008-198210
main55410-90A08i198008-198210
*22
main55410-90A09i198008-198210
W/*TIS
main55410-90A12-03i198411-198510
W/*TIS,D-GRAY,DARK GRAY METALLIC
main55410-90A13i198008-198210
*22
main55410-90A14i198008-198210
main55410-90A15i198008-198210
W/*TIS
main55410-90A16i198008-198210
main55410-90A17i198008-198210
W/TILT STEERING
main55410-90A18i198008-198210
W/SEDIMENTER
main55410-90A19i198008-198210
W/TILT STEERING & SEDIMENTER
main55410-90A20i198008-198210
W/*TIS
main55410-90A21i198008-198210
main55410-90A22i198008-198210
W/TILT STEERING
main55410-90A23i198008-198210
W/SEDIMENTER
main55410-90A24i198008-198210
W/TILT STEERING & SEDIMENTER
main55410-90A25i198210-198411
W/*TIS
main55410-90A26i198210-198411
main55410-90A27i198210-198411
W/HAZARD INDICATOR
main55410-90A31i198008-198210
W/HAZARD INDICATOR
main55410-90A32i198008-198210
W/HAZARD INDICATOR
main55410-90A33i198008-198210
*23
main55410-90A34i198008-198210
*24
main55410-90A35-03i198411-198510
*48,D-GRAY,DARK GRAY METALLIC
main55410-90A36i198008-198210
main55410-90A37i198008-198210
W/*TIS
main55410-90A38i198008-198210
main55410-90A42i198210-198411
W/*TIS
main55410-90A43i198210-198411
main55410-90A44i198210-198411
W/TILT STEERING
main55410-90A45i198210-198411
W/SEDIMENTER
main55410-90A46i198210-198411
W/*TIS & SEDIMENTER
main55410-90A47-03i198411-198510
*48,W/*TIS,D-GRAY,DARK GRAY METALLIC; W/*TIS,D-GRAY,DARK GRAY METALLIC
main55410-90A48i198210-198411
main55410-90A48-03i198411-198510
*48,D-GRAY,DARK GRAY METALLIC
main55410-90A49i198210-198411
W/TILT STEERING
main55410-90A49-03i198411-198510
*48,W/TILT STEERING,D-GRAY,DARK GRAY METALLIC; W/*TIS,D-GRAY,DARK GRAY METALLIC
main55410-90A50i198210-198411
W/SEDIMENTER
main55410-90A51i198305-198411
W/TILT STEERING & SEDIMENTER
main55410-90A52i198210-198411
main55410-90A53-03i198210-198411
W/HAZARD INDICATOR,D-GRAY,DARK GRAY METALLIC
main55410-90A54i198210-198411
W/*TIS
main55410-90A55i198210-198411
main55410-90A56-03i198401-198411
*SAA & OMAN SPEC,D-GRAY,DARK GRAY METALLIC
main55410-90A57-03i198411-198510
D-GRAY,DARK GRAY METALLIC
main55410-90A58-03i198411-198510
W/*TIS,D-GRAY,DARK GRAY METALLIC
main55410-90A61-03i198411-198510
DARK GRAY METALLIC
main55410-90A66-03i198411-198510
D-GRAY,DARK GRAY METALLIC
main55410-90A67-03i198411-198510
W/*TIS,DARK GRAY METALLIC
main55410-90A68-03i198411-198510
*48,W/*ACW,D-GRAY,DARK GRAY METALLIC; W/*ACW,D-GRAY,DARK GRAY METALLIC
main55410-90A69-03i198411-198510
*48,W/*ACW,*TIS,D-GRAY,DARK GRAY METALLIC; W/*ACW & *TIS,D-GRAY,DARK GRAY METALLIC
main55410-90A70-03i198411-198510
*48,W/*ACW,D-GRAY,DARK GRAY METALLIC; W/*ACW,D-GRAY,DARK GRAY METALLIC
main55410-90A71-03i198411-198510
*48,W/*ACW & *TIS,D-GRAY,DARK GRAY METALLIC; W/*ACW & *TIS,D-GRAY,DARK GRAY METALLIC
main55410-90A72-03i198411-198510
D-GRAY,DARK GRAY METALLIC
main55410-90A73-03i198411-198510
W/*TIS,D-GRAY,DARK GRAY METALLIC
main55410-90A74-03i198411-198510
D-GRAY,DARK GRAY METALLIC
main55410-90A75-03i198411-198510
W/*TIS,D-GRAY,DARK GRAY METALLIC
main55410-90A76-03i198411-198510
W/SEDIMENTER,D-GRAY,DARK GRAY METALLIC
main55410-90A77-03i198411-198510
W/*TIS & SEDIMENTER,D-GRAY,DARK GRAY METALLIC
main55410-90A78-03i198510-198708
D-GRAY,DARK GRAY METALLIC
main55410-90A79-03i198510-198708
W/*TIS,D-GRAY,DARK GRAY METALLIC
main55410-90A80-03i198510-198608
W/DIFF LOCK,D-GRAY,DARK GRAY METALLIC
main55410-90A81-03i198608-198708
W/*TIS,DIFF LOCK,D-GRAY,DARK GRAY METALLIC
main55410-90A85-03i198510-198608
W/*ACW,D-GRAY,DARK GRAY METALLIC
main55410-90A86-03i198510-198708
W/*TIS & *ACW,D-GRAY,DARK GRAY METALLIC
main55410-90A87-03i198608-198708
W/*ACW,DIFF LOCK,D-GRAY,DARK GRAY METALLIC
main55410-90A88-03i198608-198708
W/*ACW,DIFF LOCK,*TIS,D-GRAY,DARK GRAY METALLIC; W/*TIS,*ACW,DIFF LOCK,D-GRAY,DARK GRAY METALLIC
main55410-90A89-03i198510-198608
D-GRAY,DARK GRAY METALLIC
main55410-90A90-03i198510-198708
D-GRAY,DARK GRAY METALLIC; W/*TIS,D-GRAY,DARK GRAY METALLIC
main55410-90A91-03i198608-198708
W/DIFF LOCK,D-GRAY,DARK GRAY METALLIC
main55410-90A92-03i198608-198708
W/*TIS,DIFF LOCK,D-GRAY,DARK GRAY METALLIC
main55410-90A93-03i198510-198608
W/*ACW,D-GRAY,DARK GRAY METALLIC
main55410-90A94-03i198510-198708
W/*TIS & *ACW,D-GRAY,DARK GRAY METALLIC
main55410-90A95-03i198608-198708
W/*ACW,DIFF LOCK,D-GRAY,DARK GRAY METALLIC
main55410-90A96-03i198608-198708
W/*ACW,DIFF LOCK,*TIS,D-GRAY,DARK GRAY METALLIC
main55410-90A97-03i198510-198708
D-GRAY,DARK GRAY METALLIC
main55410-90A98-03i198510-198708
W/*TIS,D-GRAY,DARK GRAY METALLIC
main55410-90A99-03i198510-198708
W/*ACW,D-GRAY,DARK GRAY METALLIC
main55410-90G00-03i198510-198708
W/*ACW & *TIS,D-GRAY,DARK GRAY METALLIC
main55410-90G02-03i198510-198708
W/*TIS,D-GRAY,DARK GRAY METALLIC
main55410-90G05-03i198708-198708
GRAY,DARK GRAY METALLIC
main55410-90G07-03i198510-198708
D-GRAY,DARK GRAY METALLIC
main55410-90G08-03i198510-198708
W/*TIS,D-GRAY,DARK GRAY METALLIC
main55410-90G09-03i198510-198708
W/*ACW,D-GRAY,DARK GRAY METALLIC
main55410-90G10-03i198510-198708
W/*ACW & *TIS,D-GRAY,DARK GRAY METALLIC
main55410-90G11-03i198510-198708
D-GRAY,DARK GRAY METALLIC
main55410-90G14-03i198608-198708
W/DIFF LOCK,D-GRAY,DARK GRAY METALLIC
main55410-90G15-03i198608-198708
W/*TIS,DIFF LOCK,D-GRAY,DARK GRAY METALLIC
main55410-90G16-03i198608-198708
W/*ACW,DIFF LOCK,D-GRAY,DARK GRAY METALLIC
main55410-90G17-03i198608-198708
W/*ACW,DIFF LOCK,*TIS,D-GRAY,DARK GRAY METALLIC
main55410-90G18-03i198608-198708
W/DIFF LOCK,D-GRAY,DARK GRAY METALLIC
main55410-90G19-03i198608-198708
W/*TIS,DIFF LOCK,D-GRAY,DARK GRAY METALLIC
main55410-90G20-03i198608-198708
W/*ACW,DIFF LOCK,D-GRAY,DARK GRAY METALLIC
main55410-90G21-03i198608-198708
W/*ACW,DIFF LOCK,*TIS,D-GRAY,DARK GRAY METALLIC
main55410-90G22-03i198608-198708
W/DIFF LOCK,D-GRAY,DARK GRAY METALLIC
main55410-90G23-03i198608-198708
W/DIFF LOCK,D-GRAY,DARK GRAY METALLIC
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
main55401-90A00-03i198210-198708
SHADOW GRAY,GRAY,TRIM1#
main55401-90A00-06i198008-198411
DARK BROWN,BROWN,TRIM4#
main55401-90A00-16i198411-198708
SEPIA BROWN,SEPIA BROWN,TRIM4#
main55401-90A01-03i198210-198708
W/SIDE DEFROSTER,SHADOW GRAY,GRAY,TRIM1#
main55401-90A01-06i198201-198411
W/SIDE DEFROSTER,DARK BROWN,BROWN,TRIM4#
main55401-90A01-16i198411-198708
W/SIDE DEFROSTER,SEPIA BROWN,SEPIA BROWN,TRIM4#
main55401-90A02-03i198702-198708
SHADOW GRAY,GRAY,TRIM1#
main55401-90A02-06i198008-198411
DARK BROWN,BROWN,TRIM4#
main55401-90A02-16i198411-198708
SEPIA BROWN,SEPIA BROWN,TRIM4#
main55401-90A03-03i198210-198411
W/SIDE DEFROSTER,SHADOW GRAY,GRAY,TRIM1#
main55401-90A03-06i198008-198201
W/SIDE DEFROSTER,DARK BROWN,BROWN,TRIM4#
main55401-90A03-16i198411-198708
W/SIDE DEFROSTER,SEPIA BROWN,SEPIA BROWN,TRIM4#
55414BEZEL, CIGAR LIGHTER HOLE
main55477-90A00i198008-198411
main55477-90A01i198411-198510
24V
55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER
main55412-90A00i198008-198110
main55412-90A01-03i198210-198411
GRAY,GRAY,TRIM1#
main55412-90A01-05i198008-198411
BEIGE,BEIGE,TRIM4#
main55412-90A02-03i198210-198411
W/DIGITAL CLOCK,GRAY,GRAY,TRIM1#
main55412-90A02-05i198008-198411
W/DIGITAL CLOCK,BEIGE,BEIGE,TRIM4#
main55412-90A02-13i198411-198708
GRAY,GRAY,TRIM1#
main55420-90A01i198103-198110
ENGLAND SPEC
main55420-90A02-03i198210-198411
GRAY,GRAY,TRIM1#
main55420-90A02-05i198110-198708
BEIGE,BEIGE,TRIM4#
main55420-90A02-13i198411-198708
GRAY,GRAY,TRIM1#
main55420-90A03-03i198210-198411
ENGLAND SPEC,GRAY,GRAY,TRIM1#
main55420-90A03-05i198110-198708
ENGLAND SPEC,BEIGE,BEIGE,TRIM4#
main55420-90A03-13i198411-198708
ENGLAND SPEC,GRAY,GRAY,TRIM1#
55423PANEL, STEREO PLAYER FINISH
main55521-90A00i198008-198708
main55521-90A01i198510-198708
W/CLOCK
55424BORNAMENT, THROTTLE CONTROL
main55693-90A00-03i198210-198708
ENGLAND SPEC,GRAY,GRAY,TRIM1#
main55693-90A00-05i198103-198708
ENGLAND SPEC,BEIGE,BEIGE,TRIM4#
main55694-90A00-03i198210-198411
W/*THB,WEST GERMANY SPEC,GRAY,GRAY,TRIM1#
main55694-90A00-05i198008-198411
W/*THB,WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
main55694-90A00-13i198411-198708
W/*THB,WEST GERMANY SPEC,GRAY,GRAY,TRIM1#
main55694-90A00-15i198411-198708
W/*THB,WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
55453COVER, RADIO TUNER OPENING
main55522-90A00i198702-198708
55453ARETAINER, RADIO TUNER OPENING, NO.1
main55417-90A00i198702-198708
55476COVER, CIGARETTE LIGHTER HOLE
main55477-10010-01i198008-198708
BLACK,BLACK
55503COMPARTMENT SUB-ASSY, GLOVE
main55581-90A00i198008-198708
main55581-90A02i198008-198708
55503BCUSHION(FOR GLOVE COMPARTMENT)
main90541-03015×2i198008-198708
55506BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK
main55560-12020i198008-198608
55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
main55505-90A00i198008-198708
55510DOOR ASSY, GLOVE COMPARTMENT
main55501-90A00-03i198210-198411
GRAY,GRAY,TRIM1#
main55501-90A00-05i198008-198708
BEIGE,BEIGE,TRIM4#
main55501-90A00-13i198702-198708
GRAY,GRAY,TRIM1#
55513CPLATE, RADIO TUNER FINISH
main55513-90A00i198008-198708
main55513-90A01i198210-198510
W/STEREO
main55513-90A02i198510-198708
W/STEREO
55517STOPPER, GLOVE COMPARTMENT DOOR ARM
main55517-14010i198008-198708
55523COVER, HEATER CONTROL OPENING
main55523-90A00i198608-198702
55526COVER, INSTRUMENT PANEL REGISTER OPENING
main55526-90A00×2i198608-198708
55527ACOVER, METER OPENING
main55527-90A00i198008-198708
55545COVER, FUSE BOX OPENING
main55545-90A00-03i198210-198411
GRAY,GRAY,TRIM1#
main55545-90A00-05i198008-198708
BEIGE,BEIGE,TRIM4#
main55545-90A00-13i198411-198708
GRAY,GRAY,TRIM1#
55556ARM, GLOVE COMPARTMENT DOOR CHECK
main55556-90A00i198008-198708
main55556-90A01i198008-198708
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
main55561-90A00i198008-198708
55569COVER, GLOVE COMPARTMENT DOOR LOCK
main55569-90A00-03i198210-198411
GRAY,GRAY,TRIM1#
main55569-90A00-05i198008-198708
BEIGE,BEIGE,TRIM4#
main55569-90A00-13i198411-198708
GRAY,GRAY,TRIM1#
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
main55641-90A00-03i198210-198708
ENGLAND SPEC,GRAY,GRAY,TRIM1#
main55641-90A00-05i198103-198708
ENGLAND SPEC,BEIGE,BEIGE,TRIM4#
55619COVER, SWITCH HOLE
main55524-90A00×6i198411-198708
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-90A00i198008-198608
main55650-90A01i198608-198708
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
main55650-90A00i198008-198608
main55650-90A01i198608-198708
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
main55670-90A00×2i198008-198608
main55670-90A01×2i198608-198708
55950NOZZLE ASSY, DEFROSTER
main55950-90A00i198008-198708
main55950-90A01i198008-198708
55959COVER, DEFROSTER NOZZLE OPENING, NO.1
main55959-14010×2i198008-198702
74619CUSHION, INSTRUMENT ASSIST GRIP
main74619-90A00×2i198008-198708
74670GRIP ASSY, INSTRUMENT ASSIST
main74670-90A00-03i198210-198411
GRAY,GRAY,TRIM1#
main74670-90A00-13i198702-198708
GRAY,GRAY/BLACK
main74670-90A00-15i198411-198708
BEIGE,BEIGE/BROWN,TRIM4#
9015260046
main90152-60046
9015950105
main90159-50105
9015950130
main90159-50130
9016450008
main90164-50008
9017906070
main90179-06070
9017906097
main90179-06097
9017906115
main90179-06115
9017910038
main90179-10038
9018905016
main90189-05016
9020205129
main90202-05129
9046712028
main90467-12028
9046808013
main90468-08013
9095001049
main90950-01049
9095001156
main90950-01156
9095001256
main90950-01256
9165640616
main91656-40616
9165640816
main91656-40816
9331214010
main93312-14010
9331914010
main93319-14010
9354055012
main93540-55012
9354055016
main93540-55016
9356055016
main93560-55016
9356614512
main93566-14512
9433115000
main94331-15000

64 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
