TRANSFER ASSEMBLY & GASKET KIT

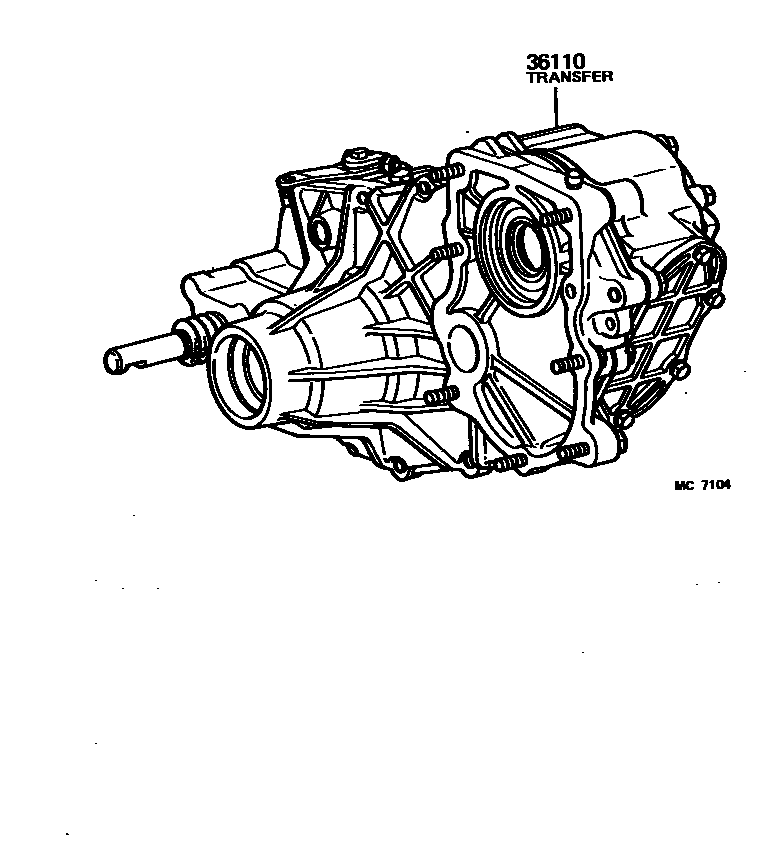

Parts diagram

36110TRANSFER ASSY

main36100-60951i198008-198201

main36100-60953i198111-198201

VENEZUELA SPEC

main36100-6A080i198411-198501

*MCT,SMG DRIVE N=6

main36100-6A090i198411-198501

*MCT,SMG DRIVE N=7

main36100-6A100i198411-198501

*MCT,SMG DRIVE N=6

main36100-6A110i198411-198501

*MCT,SMG DRIVE N=7

main36100-6A220i198501-198510

*MCT,SMG DRIVE N=6

main36100-6A230i198501-198510

*MCT,SMG DRIVE N=7

main36100-6A240i198501-198510

*MCT,SMG DRIVE N=6

main36100-6A250i198501-198510

*MCT,SMG DRIVE N=7

main36100-6A750i198510-198708

*MCT,SMG DRIVE N=6

main36100-6A760i198510-198708

*MCT,SMG DRIVE N=7

main36100-6A770i198510-198708

*MCT,N=6,VENEZUELA SPEC

main36100-6A780i198510-198708

*MCT,SMG DRIVE N=6,W/WINCH

main36100-6A790i198510-198708

*MCT,SMG DRIVE N=7,W/WINCH

main36100-6A800i198510-198708

*MCT,N=6,VENEZUELASPEC,W/WINCH

main36100-6A830i198510-198708

*MCT,SMG DRIVE N=6

main36100-6A840i198510-198708

*MCT,SMG DRIVE N=7

main36100-6A850i198510-198708

*MCT,SMG DRIVE N=6,W/WINCH

main36100-6A860i198510-198708

*MCT,SMG DRIVE N=7,W/WINCH

main36100-6B010i198510-198708

*MCT,SMG DRIVE N=6

main36100-6B020i198510-198708

*MCT,SMG DRIVE N=6,W/WINCH

main36100-6B030i198510-198708

*MCT,SMG DRIVE N=7,W/WINCH

main36100-6B040i198510-198708

*MCT,SMG DRIVE N=7

main36110-60130i198201-198210

SMG DRIVE N=6

main36110-60131i198210-198302

DIFF R=3.700; DIFF R=4.111;DIFF R=3.700,7.00-15 TIRE

main36110-60132i198302-198411

DIFF R=3.700; DIFF R=4.111;DIFF R=3.700,7.00-15 TIRE

main36110-60140i198201-198210

VENEZUELA SPEC

main36110-60170i198201-198210

SPEEDOMETER DRIVE GEAR N=7

main36110-60171i198210-198302

DIFF R=3.700,9.00-15 TIRE;DIFF R=3.700,16INCHES; DIFF R=4.111

main36110-60172i198302-198411

DIFF R=3.700,9.00-15 TIRE;DIFF R=3.700,16INCHES; DIFF R=4.111

main36110-60260i198210-198302

VENEZUELA SPEC

main36110-60261i198302-198411

VENEZUELA SPEC

main36110-60270i198210-198302

DIFF R=4.111

main36110-60271i198302-198411

DIFF R=4.111

main36110-60290i198210-198302

DIFF R=3.700

main36110-60291i198302-198411

DIFF R=3.700

main36110-60580i198411-198501

*ELC,SMG DRIVE N=6

main36110-60590i198411-198501

*ELC,SMG DRIVE N=7

main36110-60600i198411-198501

*ELC,W/NEUTRAL INDICATOR SW.

main36110-60630i198411-198501

*ELC,SMG DRIVE N=6

main36110-60640i198411-198501

*ELC,SMG DRIVE N=7

main36110-60660i198411-198501

main36110-60670i198411-198501

VENEZUELA SPEC

main36110-60840i198501-198510

*ELC,SMG DRIVE N=6

main36110-60850i198501-198510

*ELC,SMG DRIVE N=7

main36110-60860i198501-198510

*ELC,W/NEUTRAL INDICATOR SW.

main36110-60890i198501-198510

*ELC,SMG DRIVE N=6

main36110-6A010i198501-198510

*ELC,SMG DRIVE N=7

main36110-6A040i198501-198510

main36110-6A050i198501-198510

VENEZUELA SPEC

main36110-6A510i198510-198708

*ELC,SMG DRIVE N=6

main36110-6A520i198510-198708

*ELC,SMG DRIVE N=7

main36110-6A530i198510-198708

*ELC,N=6,VENEZUELA SPEC

main36110-6A540i198510-198708

*ELC,SMG DRIVE N=6,W/WINCH

main36110-6A550i198510-198708

*ELC,SMG DRIVE N=7,W/WINCH

main36110-6A560i198510-198708

*ELC,N=6,VENEZUELASPEC,W/WINCH

main36110-6A640i198510-198708

*ELC,SMG DRIVE N=6

main36110-6A650i198510-198708

*ELC,SMG DRIVE N=7

main36110-6A660i198510-198708

*ELC,SMG DRIVE N=6,W/WINCH

main36110-6A670i198510-198708

*ELC,SMG DRIVE N=7,W/WINCH

main36110-6A720i198510-198708

*ELC,SMG DRIVE N=6

main36110-6A730i198510-198708

*ELC,SMG DRIVE N=6,W/WINCH

main36110-6A740i198510-198708

*ELC,WHEEL=H78 OR HR78-15X6JJ

main36110-6A850i198510-198708

*ELC,SMG DRIVE N=6,W/WINCH

main36110-6A860i198510-198708

*ELC,SMG DRIVE N=6

main36110-6A870i198510-198708

*ELC,SMG DRIVE N=7

main36110-6A890i198510-198708

*ELC,SMG DRIVE N=6

1 parts on this diagram · 1 diagram in section
