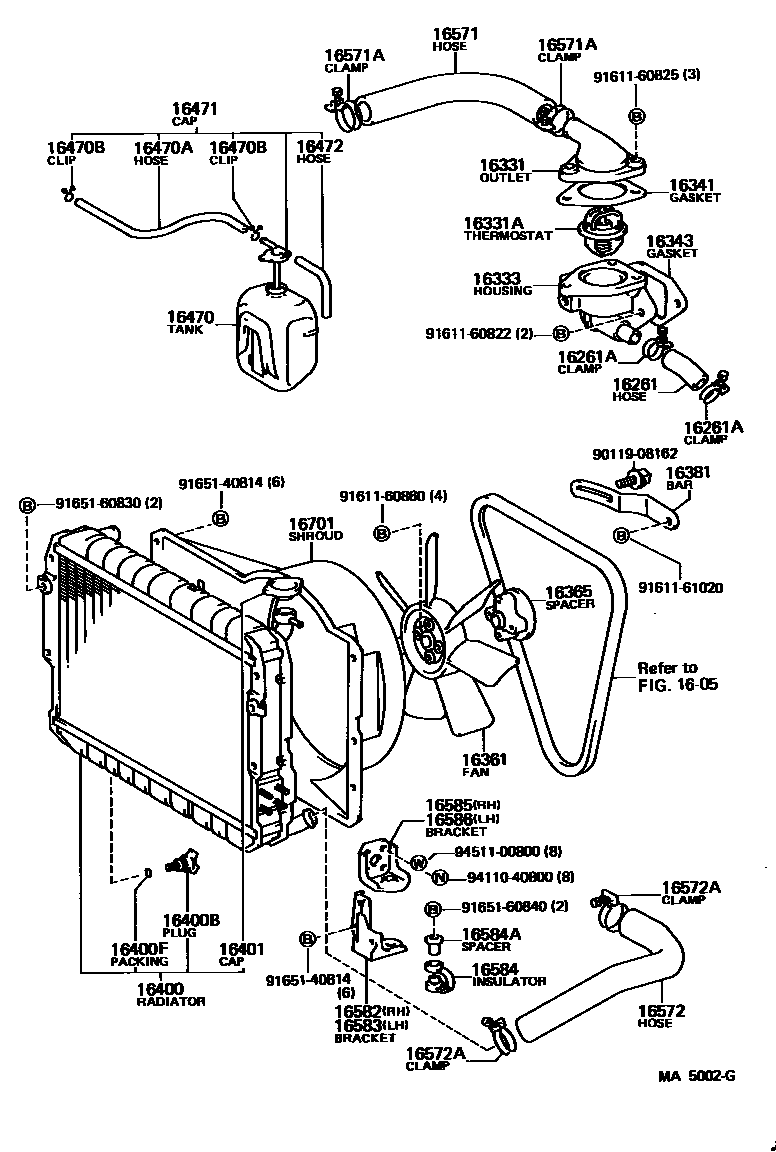

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

1605V-BELT

→ Go to FIG 16-05

16261HOSE, WATER BY-PASS

main16261-56011i3B..BJ60198008-198110

main16261-56012i3B..BJ60198110-198708

main16261-60011i2F..FJ60198008-198411

main16261-61010i3F..FJ62198411-198708

main99553-40090i2H..HJ60198008-198309

main99555-40090i12HT,2H..HJ6#198309-198708

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-60053×2i3B..BJ60198008-198609

main90044-67103×2i3B..BJ60198609-198708

main96111-10330×2i12HT,2H..HJ6#198008-198708

ID=33

main96112-10250×2i3F..FJ62198411-198708

main96112-10330×2i2F..FJ60198008-198411

16331OUTLET, WATER

main16303-61010i3F..FJ62198411-198708

main16331-56020i3B..BJ60198008-198110

main16331-56030i3B..BJ60198110-198708

main16331-68010i2H..HJ60198008-198411

main16331-68011i12HT,2H..HJ6#198411-198708

main16331-68020i2H..HJ60..HRF..ARL198411-198510

W/COOLER

main16333-61100i2F..FJ60198008-198411

main16333-61110i2F..FJ60..GEN198008-198411

W/OIL COOLER

16331ATHERMOSTAT

main90916-03026i2H..HJ60198008-198411

*WAX 82-95,*WAX 82-95

main90916-03039i3B..BJ60198008-198010

*WAX 82-95,*WAX 82-95

main90916-03050i2H..HJ60..EUR198110-198209

COLD SPEC,*WAX 88-100

main90916-03052i2F..FJ60198008-198411

*WAX 88-100

main90916-03058i3B..BJ60198010-198204

*WAX 82-95,*WAX 82-95

main90916-03059i2H..HJ60..EUR198209-198411

*WAX 88-100,COLD SPEC,*WAX 88-100

main90916-03066i3B..BJ60198204-198708

*WAX 82-95,*WAX 82-95

main90916-03071i3F..FJ62198411-198708

*WAX 88-100

16333HOUSING, WATER OUTLET

main16304-61010i3F..FJ62..ARL,GEN;3F..FJ62..4FC..ME198411-198708

W/HEATER

main16304-61020i3F..FJ62..5F..ME198411-198708

main16331-61041i2F..FJ60198008-198411

main16331-61060i3F..FJ62..4FC..ME; 3F..FJ62..GEN198411-198708

W/O HEATER,W/BOOST VENTILATOR

main16333-56040i3B..BJ60198008-198110

main16333-56060i3B..BJ60198110-198708

main16333-68010i12HT,2H..HJ6#198008-198708

main16333-68020i2H..HJ60..GEN198008-198110

W/O THERMOSTAT

16341GASKET, WATER OUTLET

main16341-56020i3B..BJ60198008-198708

main16341-61020i2F,3F..FJ6#198008-198708

main16341-68010i12HT,2H..HJ6#198008-198708

16343GASKET, WATER OUTLET HOUSING

main16343-56020i3B..BJ60198008-198708

main16343-60010i2F..FJ60198008-198411

main16343-61010i3F..FJ62198411-198708

main16343-68010i12HT,2H..HJ6#198008-198708

16361FAN

main16361-47010i3B..BJ60198008-198708

main16361-60090i3F..FJ62..SOB..GEN198411-198708

DIRECT,OD=410,6BLADES

main16361-60101i3F..FJ62..SOB..GEN198411-198708

OD=430,8BLADES,W/COOLER

main16361-61011i2F..FJ60..EUR198008-198411

TEMPERED,OD=430,7BLADES

main16361-61020i2F..FJ60..ARL; 2F..FJ60..WGG..GEN198008-198411

TEMPERED,OD=450,7BLADES

main16361-68010i12HT,2H..HJ6#198008-198708

main16361-68040i2F..FJ60..WGV..GEN198008-198411

DIRECT,OD=450,7BLADES

16365SPACER, FAN

main16365-57011i3B..BJ60198008-198708

16381BAR, FAN BELT ADJUSTING

main16381-56030i3B..BJ60..GEN198702-198708

main16381-56050i3B..BJ60198401-198411

W/POWER STEERING

main16381-58020i3B..BJ60198411-198708

W/POWER STEERING

main16381-60081i2F..FJ60198008-198411

main16381-61020i3F..FJ62198411-198708

main16381-68010i2H..HJ60198008-198510

main16381-68030i12HT,2H..HJ6#198510-198708

12V-80A,W/O COOLER,COLD SPEC

16400RADIATOR ASSY

main16400-58011i3B..BJ60198110-198411

MARK 58011

main16400-58020i3B..BJ60198008-198110

main16400-58021i3B..BJ60198110-198411

MARK 58021

main16400-58180i3B..BJ60198411-198702

main16400-58190i3B..BJ60..GEN; 3B..BJ60..ME198702-198708

W/COOLER

main16400-61040i2F..FJ60198008-198411

main16400-61090i3F..FJ62..MTM198411-198708

main16400-61100i3F..FJ62..4FC198411-198708

main16400-61110i3F..FJ62..MTM198510-198708

W/COOLER

main16400-68010i2H..HJ60..ARL,GEN198008-198411

main16400-68020i2H..HJ60..EUR198008-198411

main16400-68080i12HT,2H..HJ6#..MTM..(ARL,GEN)198411-198708

main16400-68090i12HT..HJ61..4FC; 2H..HJ60..LHD..4FC198510-198708

W/COOLER

main16400-68100i12HT,2H..HJ6#..5F..EUR198411-198708

main16400-68110i2H..HJ60..4FC..EUR198411-198708

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i2F,3F..FJ6#; 2H..HJ60; 3B..BJ60198008-198708

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i12HT,2H..HJ6#; 2F,3F..FJ6#; 3B..BJ60198008-198708

16401CAP SUB-ASSY, RADIATOR

main16401-41021i2F..FJ60; 2H..HJ60; 3B..BJ60198008-198411

main16401-71010i12HT,2H..HJ6#; 3B..BJ60; 3F..FJ62198411-198708

16470TANK ASSY, RADIATOR RESERVE

main16480-90A00i12HT,2H..HJ6#; 2F,3F..FJ6#; 3B..BJ60198008-198708

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12001i12HT,2H..HJ6#..ARL,GEN198008-198702

L=600(*H,L=166),12V BATTERY

main90445-12002i12HT,2H..HJ6#..EUR198210-198705

L=600(*H,L=260),24V BATTERY

main90445-12043i12HT..HJ61..ARL;2H..HJ60..MTM..(ARL,GEN)198702-198708

L=600(*H,L=360),12V BATTERY

main90445-12046i3B..BJ60198110-198708

L=1000(*H,L=760)

main90445-12101i2F,3F..FJ6#198008-198708

L=600

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i12HT,2H..HJ6#; 2F,3F..FJ6#; 3B..BJ60198008-198708

16471CAP SUB-ASSY, RESERVE TANK

main16405-90A00i2F,3F..FJ6#198008-198708

main16405-90A01i12HT,2H..HJ6#..ARL,GEN198008-198708

12V BATTERY

main16405-90A02i2H..HJ60..EUR,GEN198008-198210

24V BATTERY

main16405-90A04i3B..BJ60198110-198708

16472HOSE, BREATHER

main85338-22020i2F,3F..FJ6#; 3B..BJ60198008-198708

main85379-90A00i2H..HJ60198008-198210

12V BATTERY

16571HOSE, RADIATOR, INLET

main16571-58010i3B..BJ60198008-198110

main16571-58011i3B..BJ60198110-198708

main16571-61110i3F..FJ62198411-198708

main16571-68010i12HT,2H..HJ6#198008-198708

main90916-01172i2F..FJ60198008-198411

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-50016×2i2H..HJ60; 3B..BJ60198008-198411

RADIATOR SIDE

main90467-42001×2i12HT..HJ61;2H..HJ60..MTM;2H..HJ60..4FC..EUR198609-198708

main96111-10490×2i3B..BJ60198609-198702

main96111-10560i3B..BJ60198008-198411

WATER PUMP SIDE

16572HOSE, RADIATOR, OUTLET

main16571-61090i2F..FJ60198008-198411

RADIATOR SIDE

main16572-58010i3B..BJ60198008-198708

main16572-61020i3F..FJ62198411-198708

WATER PUMP SIDE

main16572-68010i12HT,2H..HJ6#198008-198708

main16573-61040i3F..FJ62198411-198708

RADIATOR SIDE

main90916-01056i2F..FJ60198008-198411

WATER PUMP SIDE

main90916-01163i2F..FJ60..ARL,GEN198008-198411

WATER PUMP SIDE,W/COOLER

main99554-70185i2F..FJ60..ARL,GEN198008-198411

RADIATOR SIDE,W/COOLER

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-50016i3B..BJ60198411-198609

RADIATOR SIDE

main96111-10510×2i2F..FJ60; 2F..FJ60..ARL,GEN198010-198411

RADIATOR SIDE; W/COOLER

main96111-10530×2i2F..FJ60; 2F..FJ60..ARL,GEN198008-198010

RADIATOR SIDE; W/COOLER

main96111-10560i12HT,2H..HJ6#198008-198708

ID=56

main96111-10570i3B..BJ60198609-198708

WATER PUMP SIDE

main96111-10580i2F..FJ60198008-198411

PIPE SIDE

16582BRACKET, RADIATOR, NO.1

main16582-61010i12HT,2H..HJ6#; 2F,3F..FJ6#; 3B..BJ60198008-198708

16583BRACKET, RADIATOR, NO.2

main16583-61010i12HT,2H..HJ6#; 2F,3F..FJ6#; 3B..BJ60198008-198708

16584INSULATOR, RADIATOR MOUNTING

main16584-61010×2i12HT,2H..HJ6#; 2F,3F..FJ6#; 3B..BJ60198008-198708

16584ASPACER, RADIATOR MOUNTING INSULATOR

main90561-09005×2i12HT,2H..HJ6#; 2F,3F..FJ6#; 3B..BJ60198008-198708

16585BRACKET, RADIATOR, NO.3

main16585-61010i12HT,2H..HJ6#; 2F,3F..FJ6#; 3B..BJ60198008-198708

16586BRACKET, RADIATOR, NO.4

main16586-61010i12HT,2H..HJ6#; 2F,3F..FJ6#; 3B..BJ60198008-198708

16701SHROUD SUB-ASSY, FAN

main16711-58010i3B..BJ60198008-198112

main16711-58011i3B..BJ60198112-198411

main16711-58040i3B..BJ60198411-198708

main16711-61101i2F..FJ60..WGV..GEN198008-198411

DIRECT

main16711-61111i2F..FJ60..EUR198008-198411

main16711-61121i2F..FJ60..ARL,GEN; 2F..FJ60..WGV..GEN198008-198411

DIRECT,OD=450,7BLADES FAN; TEMPERED

main16711-61200i3F..FJ62..SOB..GEN198411-198708

main16711-61210i3F..FJ62..SOB..GEN198411-198708

OD=430,8BLADES,W/O *ODAC

main16711-61220i3F..FJ62..5F..(ARL,ME);3F..FJ62..MTM..LUB..GEN198411-198708

main16711-61230i3F..FJ62..HRF..SOB..GEN198411-198510

W/*ODAC

main16711-61240i3F..FJ62..HRF..SOB..ME; 3F..FJ62..MTM..HRF..LUB198411-198510

W/*ODAC

main16711-68010i12HT,2H..HJ6#198008-198708

9011908162

main90119-08162

9161160822

main91611-60822

9161160825

main91611-60825

9161160860

main91611-60860

9161161020

main91611-61020

9165140814

main91651-40814

9165160830

main91651-60830

9165160840

main91651-60840

9411040800

main94110-40800

9451100800

main94511-00800

41 parts on this diagram · 5 diagrams in section
