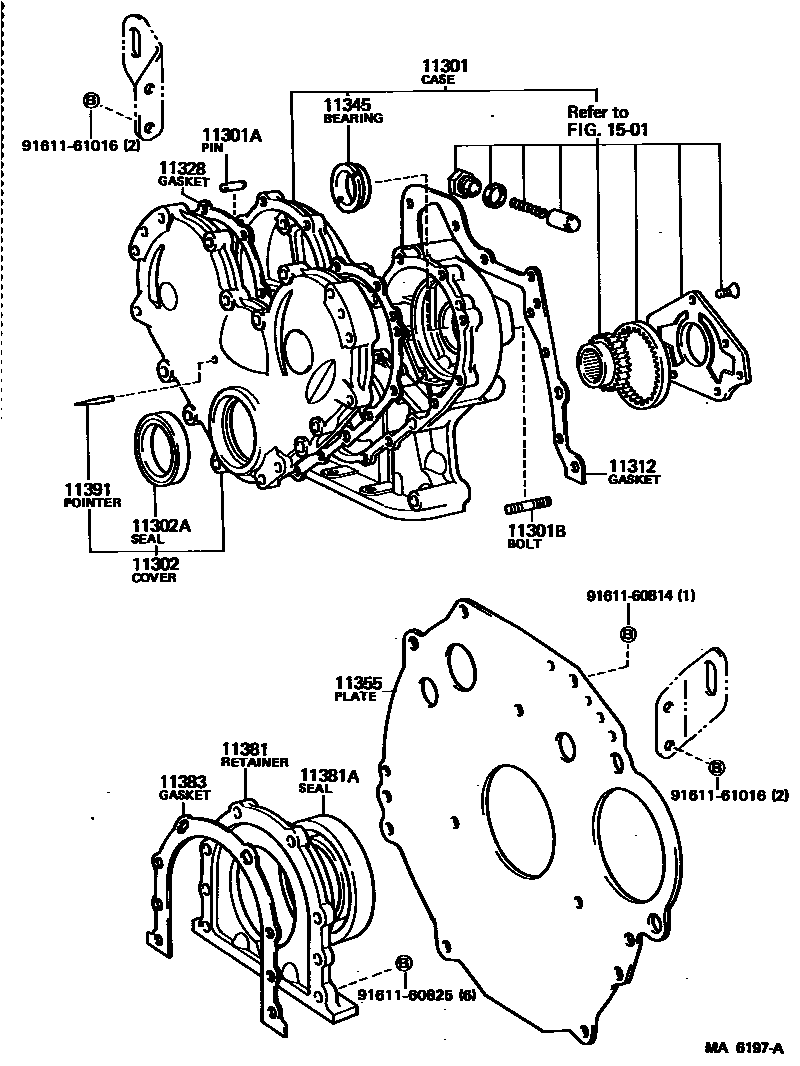

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-56030i3B..BJ60198008-198402

main11301-56031i3B..BJ60198402-198708

main11301-68010i2H..HJ60198008-198411

main11301-68011i2H..HJ60198411-198510

main11301-68020i12HT,2H..HJ6#198510-198708

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120×2i12HT,2H..HJ6#; 3B..BJ60198008-198708

L=18,OD=8,L=18,OD=8

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-10048×3i3B..BJ60198008-198708

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-56030i3B..BJ60198008-198708

main11302-61020i2F..FJ60198008-198410

main11302-61030i2F,3F..FJ6#198410-198610

main11302-61031i3F..FJ62198610-198708

main11321-68010i2H..HJ60198008-198405

main11321-68011i2H..HJ60198405-198510

main11321-68012i2H..HJ60..MTM..(EUR,GEN)198608-198708

main11321-68020i12HT..HJ61; 2H..HJ60..ARL; 2H..HJ60..EUR; 2H..HJ60..GEN198510-198708

12V-80A; 24V-40A OR COLD SPEC

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-45008i2F,3F..FJ6#198410-198708

main90311-45069i2F..FJ60198008-198410

main90311-50002i3B..BJ60198008-198503

main90311-50006i12HT,2H..HJ6#198312-198708

main90311-50007i3B..BJ60198503-198708

main90311-50049i2H..HJ60198008-198312

11312GASKET, FRONT END PLATE

main11312-56030i3B..BJ60198008-198409

main11312-56031i3B..BJ60198409-198708

main11312-61010i2F..FJ60198008-198411

main11312-61020i3F..FJ62198411-198708

main11312-68010i12HT,2H..HJ6#198008-198708

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-56030i3B..BJ60198008-198708

main11328-60010i2F..FJ60198008-198410

main11328-61010i2F,3F..FJ6#198410-198708

main11328-68010i2H..HJ60198008-198510

main11328-68020i12HT,2H..HJ6#198510-198708

11345BEARING, INJECTION PUMP GEAR THRUST

main11345-48010i3B..BJ60198008-198708

11355PLATE, REAR END

main11355-56040i3B..BJ60198008-198411

main11355-56052i3B..BJ60198411-198502

main11355-56053i3B..BJ60198502-198708

main11355-68010i2H..HJ60198008-198411

main11355-68011i12HT,2H..HJ6#..MTM198411-198708

main11355-68020i12HT,2H..HJ6#..4FC198411-198708

11381RETAINER, ENGINE REAR OIL SEAL

main11381-56030i3B..BJ60198008-198409

main11381-56031i3B..BJ60198409-198708

main11381-68010i12HT,2H..HJ6#198008-198708

11381ASEAL, ENGINE REAR OIL

main90311-95001i2H..HJ60198008-198312

main90311-95002i12HT,2H..HJ6#198312-198708

main90311-95003i3B..BJ60198502-198708

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-47010i12HT,2H..HJ6#198008-198708

main11383-56030i3B..BJ60198008-198409

main11383-56031i3B..BJ60198409-198708

11391POINTER, TIMING

main11391-56020i3B..BJ60198008-198708

main11391-60010i2F,3F..FJ6#198008-198708

1501ENGINE OIL PUMP

→ Go to FIG 15-01

9161160814

main91611-60814

9161160825

main91611-60825

9161161016

main91611-61016

17 parts on this diagram · 5 diagrams in section
