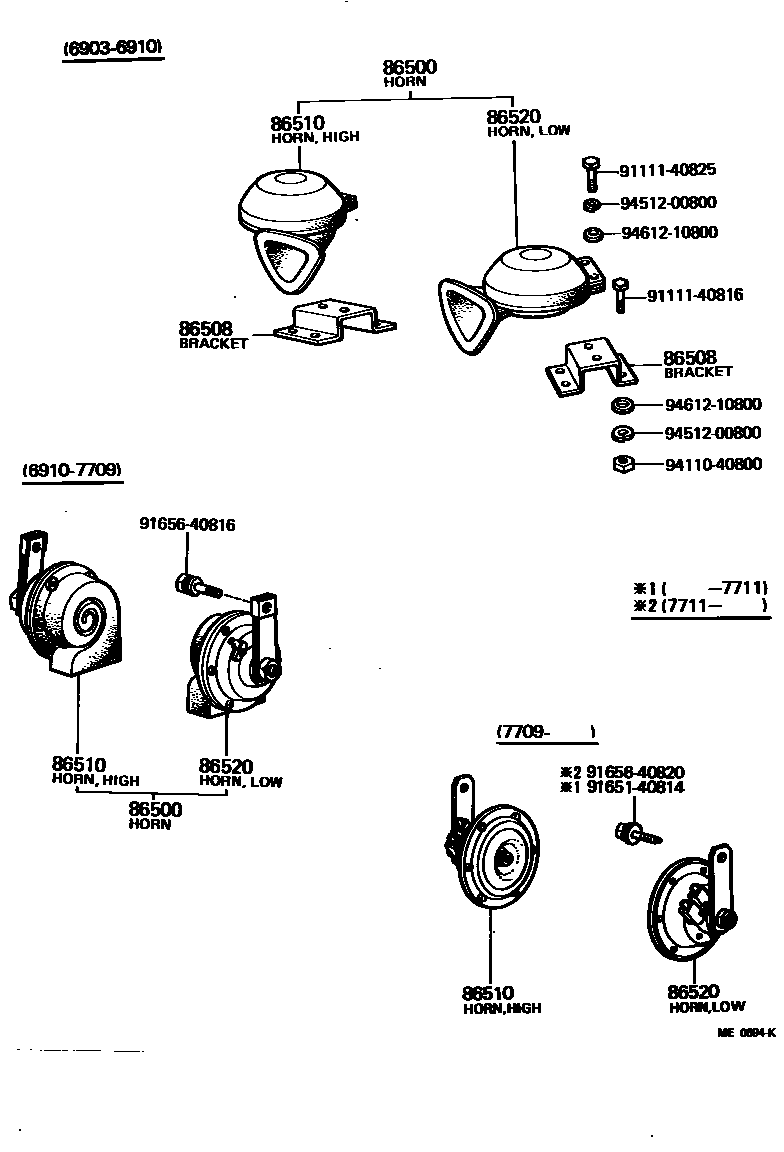

HORN

0001 1 0002 1

86500HORN ASSY

main86500-30021iFJ4#,55196903-196910

MARUKO

main86500-30071iFJ4#,55,HJ45196910-197501

MARUKO

main86500-30081iFJ55..ARL,GEN197501-197509

DENSO

main86500-30090iFJ55..ARL,GEN197509-197709

main86500-30100iBJ4#,FJ4#,HJ45..ARL,GEN197509-197709

FOR 12V,MARUKO

main86500-36030iBJ4#197405-197501

EUR.SPEC.

main86500-36040iFJ4#,55,HJ45..EUR197501-197507

main86500-36070iBJ4#..GEN197509-197709

FOR 24V,MARUKO

main86500-60010iBJ4#..GEN197501-197509

FOR 24V,MARUKO

86508BRACKET SUB-ASSY, HORN

main86508-60010iFJ4#196903-196910

FOR RH.

main86509-60010iFJ4#196903-196910

FOR LH.

main86591-90300iBJ4#..GEN197501-197509

main86591-90301iBJ4#197405-197501

EUR.SPEC.

86510HORN ASSY, HIGH PITCHED

main86510-12131iFJ4#,55,HJ45..EUR197709-198007

FOR 12V

main86510-20070iFJ55..ARL,GEN197709-198007

DENSO

main86510-30020iFJ4#,55196903-196910

MARUKO

main86510-30030iFJ4#,55196903-196910

DENSO

main86510-30071iFJ4#,55,HJ45196910-197212

MARUKO

main86510-30081iFJ55197212-197501

DENSO

main86510-30090iFJ55..ARL,GEN197509-197709

DENSO

main86510-30100iBJ4#,FJ4#,HJ45..ARL,GEN197509-197709

FOR 12V,MARUKO

main86510-36020iBJ4#..GEN197501-197509

FOR 24V,MARUKO

main86510-36030iBJ4#197405-197501

EUR.SPEC.

main86510-36040iBJ4#,FJ4#,55,HJ45..EUR197507-197709

FOR 12V

main86510-36070iBJ4#..GEN197509-197709

FOR 24V,MARUKO

main86510-36090iBJ4#,FJ4#,HJ45..ARL,GEN197709-198007

FOR 12V,MARUKO

main86510-36100iBJ4#..ARL,GEN197709-198007

FOR 24V,MARUKO

main86510-36110iFJ40,45,55197709-197911

MARUKO CHINA SPEC

main86510-36111iFJ40,45,55197911-198007

MARUKO CHINA SPEC

main86510-95400iBJ4#..EUR197709-198007

FOR 24V

86520HORN ASSY, LOW PITCHED

main86520-12111iFJ4#,55,HJ45..EUR197709-198007

FOR 12V

main86520-30020iFJ4#,55196903-196910

MARUKO

main86520-30030iFJ4#,55196903-196910

DENSO

main86520-30071iBJ4#,FJ4#,HJ45..ARL,GEN197507-197509

FOR 12V,MARUKO

main86520-30081iFJ55..ARL,GEN197501-197509

DENSO

main86520-30090iFJ55..ARL,GEN197509-197709

DENSO

main86520-30100iBJ4#,FJ4#,HJ45..ARL,GEN197509-197709

FOR 12V,MARUKO

main86520-36030iBJ4#197405-197501

EUR.SPEC.

main86520-36040iFJ4#,55,HJ45..EUR197501-197507

main86520-36070iBJ4#..GEN197509-197709

FOR 24V,MARUKO

main86520-36090iBJ4#,FJ4#,HJ45..ARL,GEN197709-198007

FOR 12V,MARUKO

main86520-36100iBJ4#..ARL,GEN197709-198007

FOR 24V,MARUKO

main86520-36110iFJ40,45,55197709-197911

MARUKO CHINA SPEC

main86520-36111iFJ40,45,55197911-198007

MARUKO CHINA SPEC

main86520-60010iBJ4#197402-197501

MARUKO

main86520-60050iFJ55..ARL,GEN197709-198007

DENSO

main86520-95400iBJ4#..EUR197709-198007

FOR 24V

9111140816

main91111-40816

9111140825

main91111-40825

9165140814

main91651-40814

9165640816

main91656-40816

9165640820

main91656-40820

9411040800

main94110-40800

9451200800

main94512-00800

9461210800

main94612-10800

12 parts on this diagram · 2 diagrams in section
