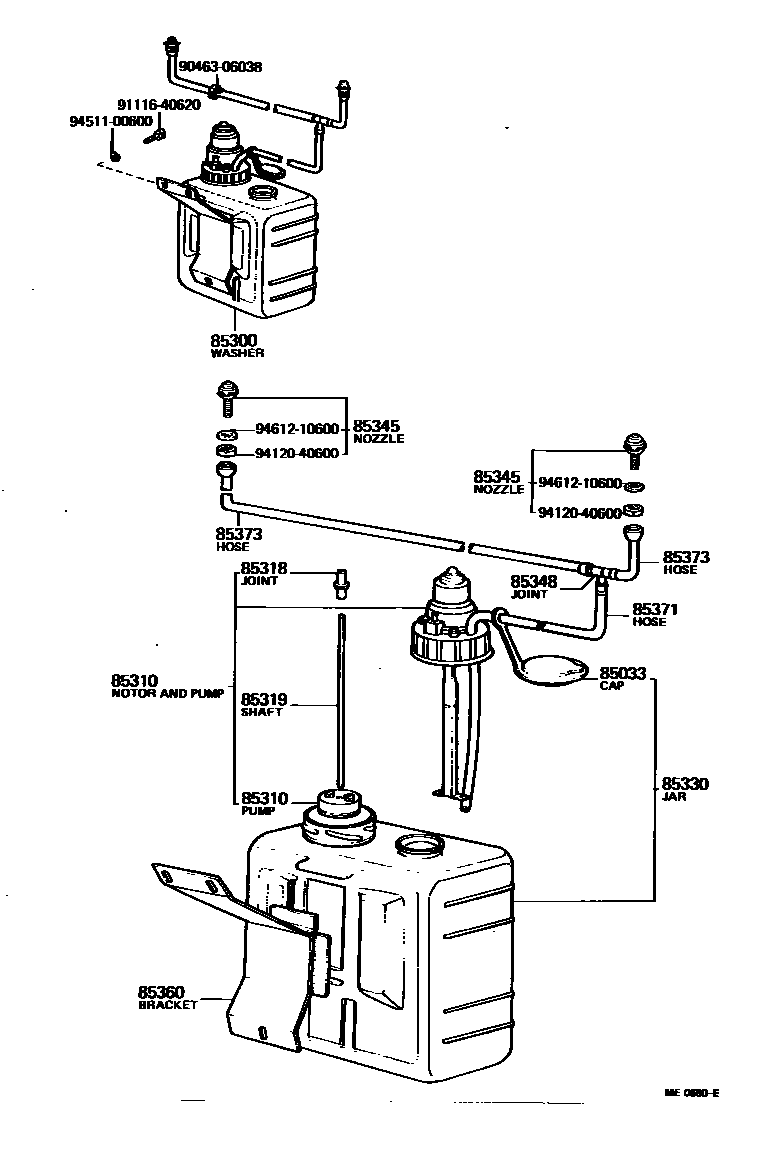

WINDSHIELD WASHER

0001 1 0002 1 0003 1 0005 1 0006 1 0008 1

85033CAP ASSY, WINDSHIELD WASHER

main85332-10060iFJ55197309-197401

main85332-10061iFJ4#197309-197401

main85332-60010iBJ4#,FJ4#,55,HJ45197901-198007

main85333-10031iFJ4#,55196903-197109

85300WASHER ASSY, WINDSHIELD

main85300-60022iFJ4#196903-197109

main85300-60030iFJ55196903-197109

main85300-60040iBJ4#197402-197709

FOR 24V

main85300-69015iFJ4#,HJ45197109-197209

main85300-69016iFJ4#,HJ45197209-197309

main85300-69017iFJ4#,HJ45197309-197507

main85300-69025iFJ55197109-197209

main85300-69026iFJ55197209-197709

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85039-10031iFJ4#,55196903-197109

PUMP ONLY

main85310-10032iFJ4#,55196903-197109

W/MOTOR

main85310-10060iBJ4#197709-197901

FOR 12V

main85310-55060iBJ4#197402-197901

FOR 24V

main85310-60010iFJ4#,55,HJ45197709-198007

FOR 12V

main85310-60020iBJ4#,HJ45197901-198007

FOR 24V

85318JOINT, WINDSHIELD WASHER MOTOR

main85318-10031iFJ4#,55196903-197109

85319SHAFT, WINDSHIELD WASHER PUMP

main85319-10031iFJ4#,55196903-197109

85330JAR ASSY, WINDSHIELD WASHER

main85330-10010iFJ4#196903-197109

main85330-10060iFJ55197309-197401

main85330-10070iBJ4#,FJ4#,55,HJ45197401-197709

main85330-60011iFJ4#,55,HJ45197901-198007

FOR 12V 2.5LITERS

main85330-60030iFJ4#,55,HJ45197709-197901

FOR 2.5LITER

main85330-60051iBJ4#;HJ45..EUR197901-198007

FOR 2.5LITER

main85331-10031iFJ55196903-197109

85345NOZZLE, WINDSHIELD WASHER

main85035-10061iFJ55197602-197901

main85035-60010×2iFJ4#196903-197109

main85035-60030iFJ55196903-197109

main85035-60050iBJ4#,FJ4#,HJ45197602-198007

main85341-60030iFJ4#,55,HJ45197109-197209

main85341-60040×2iFJ55197901-198007

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-10060iBJ4#197901-198007

main85355-60010iFJ55197901-198007

3 WAY

85360BRACKET ASSY, WINDSHIELD WASHER

main85360-60010iFJ4#,HJ45197709-198007

FOR 2.5LITER,12V

main85361-10031iFJ55196903-197709

main85361-60022iFJ4#,HJ45196903-197309

main85361-60023iBJ4#197709-197901

FOR 1.2LITER

main85361-60060iBJ4#; HJ45197901-198007

FOR 2.5LITER; FOR 2.5LITER,24V

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85343-60030iFJ4#,55196903-197109

L=2000(*H,L=1050)

main90446-06055iBJ4#,FJ4#,HJ45197309-197709

L=1300

main90446-06265iFJ4#,55,HJ45197109-197309

L=1000(*H,L=230)

main90446-06302iFJ55197401-197709

L=1100

main90446-06319iFJ4#,55,HJ45197709-198007

L=1000(*H,L=100),FOR 12V

main90446-06341iBJ4#; HJ45197901-198007

L=1000(*H,L=280); L=1000(*H,L=280),FOR 24V

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85344-60010iFJ4#196903-197109

L=640

main85353-60010iFJ4#196903-197109

L=40

main90446-06005iFJ4#,HJ45..RHD197901-198007

L=2400

main90446-06006iFJ55197709-197901

L=2000,L=2000

main90446-06183iFJ55197109-197401

L=1000(*H,L=950)

main90446-06205iBJ4#; HJ45..PIC..EUR197901-198007

FOR 24V,L=1200; L=1200

main90446-06230iFJ55197901-198007

L=1000(*H,L=150)

main90446-06300iFJ55197901-198007

L=1000(*H,L=500)

main90446-06302iFJ4#,HJ45..LHD; HJ45..VKC..EUR197901-198007

L=1100; L=1100,FOR 12V

9046306038

main90463-06038

9111640620

main91116-40620

9412040600

main94120-40600

9451100600

main94511-00600

9461210600

main94612-10600

16 parts on this diagram · 6 diagrams in section
