3304SPEEDOMETER DRIVEN GEAR (MTM)

→ Go to FIG 33-04

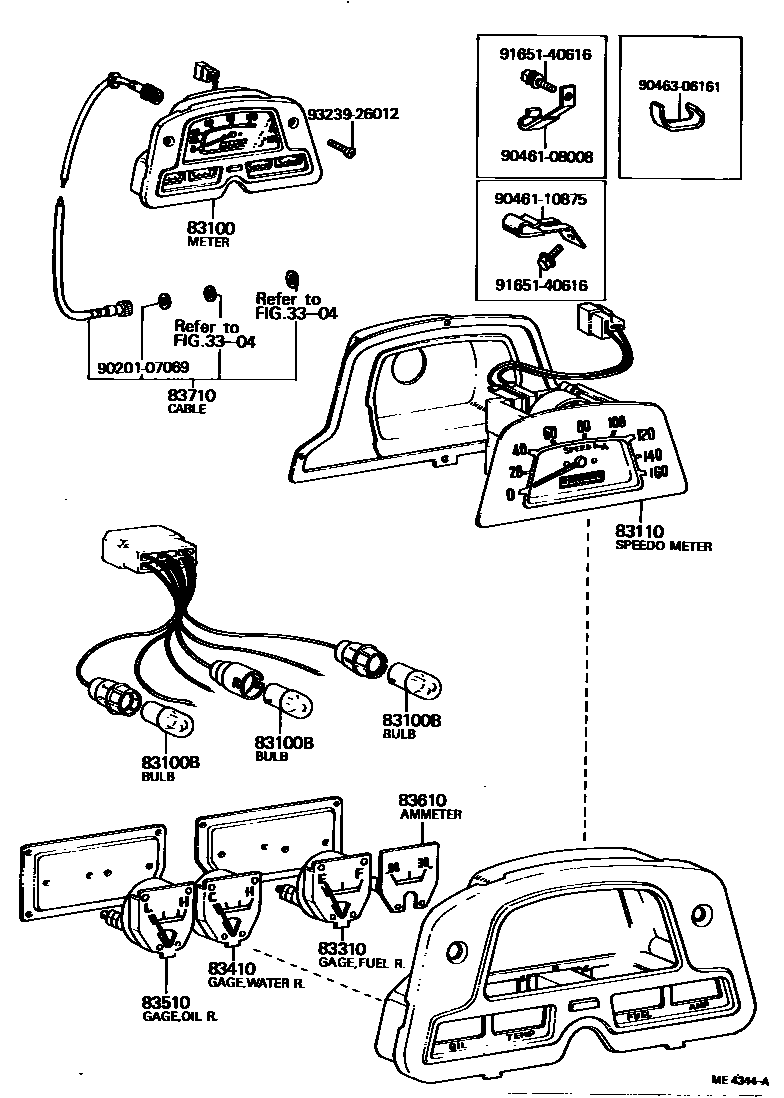

83100METER ASSY, COMBINATION

main83100-60011i196903-197109

KM.

main83100-60012i197109-197209

KM.

main83100-60013i197209-197309

KM.

main83100-60014i197804-197901

FOR 12V,KM; FOR 12V,KM.

main83100-60016i197901-197910

FOR 12V,KM; FOR 12V,KM.

main83100-60017i197910-198007

FOR 12V,KM

main83100-60021i196903-197010

MILE

main83100-60022i197010-197109

MILE

main83100-60023i197109-197209

MILE

main83100-60024i197209-197309

MILE

main83100-60025i197507-197709

FOR 12V,MILE

main83100-60026i197901-197910

FOR 12V,MILE & KM.

main83100-60027i197910-198007

FOR 12V,MILE & KM.

main83100-60050i196903-197608

W/AMMETER

main83100-60051i197904-197910

main83100-60052i197910-198007

main83100-60060i197109-197709

L/AMMETER

main83100-60072i197501-197709

MILE

main83100-60073i197901-197904

MILE,W/LEAD SW.

main83100-60074i197910-198007

HONG KONG SPEC.

main83100-60100i197709-197901

FOR 24V,MILE & KM.

main83100-60101i197901-197910

FOR 24V,MILE & KM.

main83100-60102i197910-198007

FOR 24V,MILE & KM.

main83100-60110i197709-197901

FOR 24V,KM

main83100-60112i197901-197910

FOR 24V,KM.

main83100-60113i197910-198007

FOR 24V,KM.

main83100-60120i197501-197709

KM.

main83100-60122i197901-197910

KM.W/LEAD SW.

main83100-60123i197910-198007

KM.W/LEAD SW.

main83100-60140i197904-197910

main83100-60141i197910-198007

main83100-60180i197910-198007

FOR 12V MIDDLE EAST COUNTRY

main83100-60190i197910-198007

FOR 24V MIDDLE EAST COUNTRY

main83100-60200i197910-198007

FOR MIDDLE EAST COUNTRY

83100BBULB, COMBINATION METER, NO.1

main99132-12034×5i197507-198007

12V 3.4W,12V 3.4W

main99132-13030×3i196903-197209

12V 3W

main99134-12030×5i197901-198007

24V 3W,24V 3W

83110SPEEDOMETER ASSY

main83110-60011i197109-197209

KM.

main83110-60012i197709-197804

KM.

main83110-60021i196903-197010

MILE

main83110-60022i197010-197209

MILE

main83110-60023i197501-197608

MILE

main83110-60024i197709-198007

MILE & KM.

main83110-60030i196903-197109

KM.

main83110-60031i197804-197901

KM.

main83110-60033i197901-198007

KM.

main83110-60040i196903-197010

MILE

main83110-60041i197010-197209

MILE

main83110-60042i197209-197501

MILE

main83110-60043i197709-197901

MILE & KM.

main83110-60044i197901-198007

MILE & KM.

main83110-60052i197501-197608

MILE

main83110-60053i197804-198007

HONG KONG SPEC.

main83110-60054i197901-198007

MILE & KM. W/LEAD SW.

main83110-60061i197501-197608

MILE

main83110-60062i197608-197709

MILE

main83110-60100i197804-197901

KM.W/LEAD SW.

main83110-60102i197901-198007

KM.W/LEAD SW.

main83110-60110×2i197804-197901

KM.W/LEAD SW.

83310GAGE ASSY, FUEL RECEIVER

main83310-60011i196903-197209

main83310-60012i197209-197309

main83310-60013i197309-197901

main83310-60014i197901-198007

main83310-60031i196903-197709

main83310-60032i197709-198007

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83410-60011i196903-197209

main83410-60012i197209-197309

main83410-60013i197309-197901

main83410-60014i197901-197910

main83410-60015i197910-198007

main83410-60031i196903-196909

FOR W/AMMETER

main83410-60032i196909-197608

FOR W/AMMETER

main83410-60033i197709-197910

main83410-60034i197910-198007

main83410-60050i197101-197109

FOR L/AMMETER

main83410-60060i197910-198007

FOR MIDDLE EAST COUNTRY

main83410-60070i197910-198007

FOR MIDDLE EAST COUNTRY

83510GAGE ASSY, OIL PRESSURE RECEIVER

main83510-60011i196903-197309

main83510-60012i197507-197901

FOR 12V

main83510-60013i197901-198007

FOR 12V

main83510-60031i196903-197709

main83510-60032i197709-198007

main83510-60050i197402-197901

FOR 24V

main83510-60051i197901-198007

FOR 24V

83610AMMETER ASSY

main83610-60021i196903-197309

main83610-60022i197309-197901

main83610-60023i197901-198007

main83610-60031i196903-197608

main83610-60032i197709-198007

83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1

main83710-59025i196903-197110

L=1700

main83710-60020i196903-197110

L=2300

main83710-69025i196903-197209

L=1300

main83710-69026i197209-197601

L=1600

main83710-69027i197709-198007

L=1700

main83710-69035i197110-197209

L=2450

main83710-69036i197209-197309

L=2450

main83710-69045i197110-197209

L=1750

main83710-69055i197709-198007

L=2450

main83710-69065i197309-197608

L=2450

main83710-69066i197608-197709

L=2450

main83710-69067i197709-198007

L=2050

main83710-69085i197209-197709

L=1900

main83710-69095i197601-197608

L=1700

main83710-69096i197608-197709

L=1700

main83710-69105i197709-197901

L=2250

main83710-69106i197901-198007

L=2100

9020107069

main90201-07069

9046108008

main90461-08008

9046110875

main90461-10875

9046306161

main90463-06161

9165140616

main91651-40616

9323926012

main93239-26012
