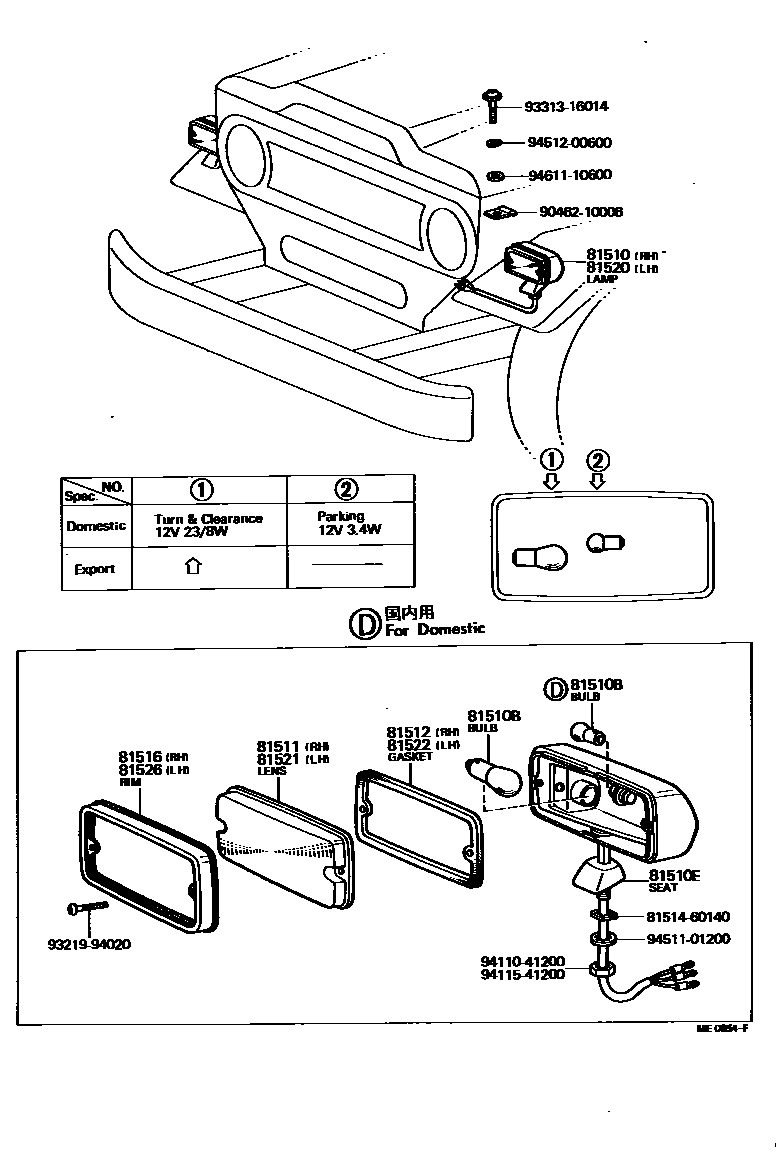

FRONT TURN SIGNAL LAMP
81510LAMP ASSY, FRONT TURN SIGNAL, RH
AMBER
CLEAR
CLEAR
AMBER
CLEAR
AMBER
AMBER-CLEAR; AMBER-CLEAR,EUR.OR ARL.SPEC.
FOR 24V,AMBER-CLEAR
AMBER-CLEAR,EUR.OR ARL.SPEC.
FOR 24V,AMBER-CLEAR
CLEAR
CLEAR,EUR.SPEC.
CLEAR
FOR 12V,AMBER-CLEAR
FOR 12V,AMBER-CLEAR
FOR 12V,AMBER-CLEAR
FOR 24V,AMBER-CLEAR
FOR 24V,AMBER-CLEAR
FOR 24V,AMBER-CLEAR
FOR 24V,AMBER-CLEAR
AMBER-CLEAR
AMBER-CLEAR
FOR 12V,CLEAR
FOR 12V,CLEAR
FOR 12V,CLEAR
FOR 24V,CLEAR
FOR 24V,CLEAR
FOR 24V,CLEAR
CLEAR
CLEAR
81510BBULB (FOR FRONT TURN SIGNAL LAMP)
24V 21W,24V 21W
24V 5W,24V 5W
12V 5W,12V 5W
12V 21W,12V 21W
12V 23/8W,12V 23/8W
12V 25/8W
24V 12W,24V 12W
24V 25W,24V 25W
81510ESEAT, FRONT TURN SIGNAL LAMP BODY SPACER
FOR RH.
FOR LH.
81511LENS, FRONT TURN SIGNAL LAMP, RH
AMBER
CLEAR
AMBER-CLEAR
CLEAR,EUR.SPEC.
81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH
EUR. OR AUSTRALIA SPEC.
81516RIM, FRONT TURN SIGNAL LAMP, RH
81520LAMP ASSY, FRONT TURN SIGNAL, LH
AMBER
CLEAR
CLEAR
AMBER
AMBER
CLEAR
FOR 12V,AMBER-CLEAR
FOR 24V,AMBER-CLEAR
AMBER-CLEAR
AMBER-CLEAR
CLEAR
FOR 24V,CLEAR
CLEAR
FOR 12V,AMBER-CLEAR
FOR 12V,AMBER-CLEAR
FOR 12V,AMBER-CLEAR
FOR 24V,AMBER-CLEAR
FOR 24V,AMBER-CLEAR
FOR 24V,AMBER-CLEAR
FOR 24V,AMBER-CLEAR
AMBER-CLEAR
AMBER-CLEAR
FOR 12V,CLEAR
FOR 12V,CLEAR
FOR 12V,CLEAR
FOR 24V,CLEAR
FOR 24V,CLEAR
FOR 24V,CLEAR
CLEAR
CLEAR
81521LENS, FRONT TURN SIGNAL LAMP, LH
AMBER
CLEAR
AMBER-CLEAR
CLEAR
81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH
EUR. OR AUSTRALIA SPEC.
81526RIM, FRONT TURN SIGNAL LAMP, LH
8151460140GASKET, FRONT TURN SIGNAL LAMP BODY, RH
main81514-60140
9046210006
main90462-10006
9321994020
main93219-94020
9331316014
main93313-16014
9411041200
main94110-41200
9411541200
main94115-41200
9451101200
main94511-01200
9451200600
main94512-00600
9461110600
main94611-10600
19 parts on this diagram · 2 diagrams in section
