SEAT BELT

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

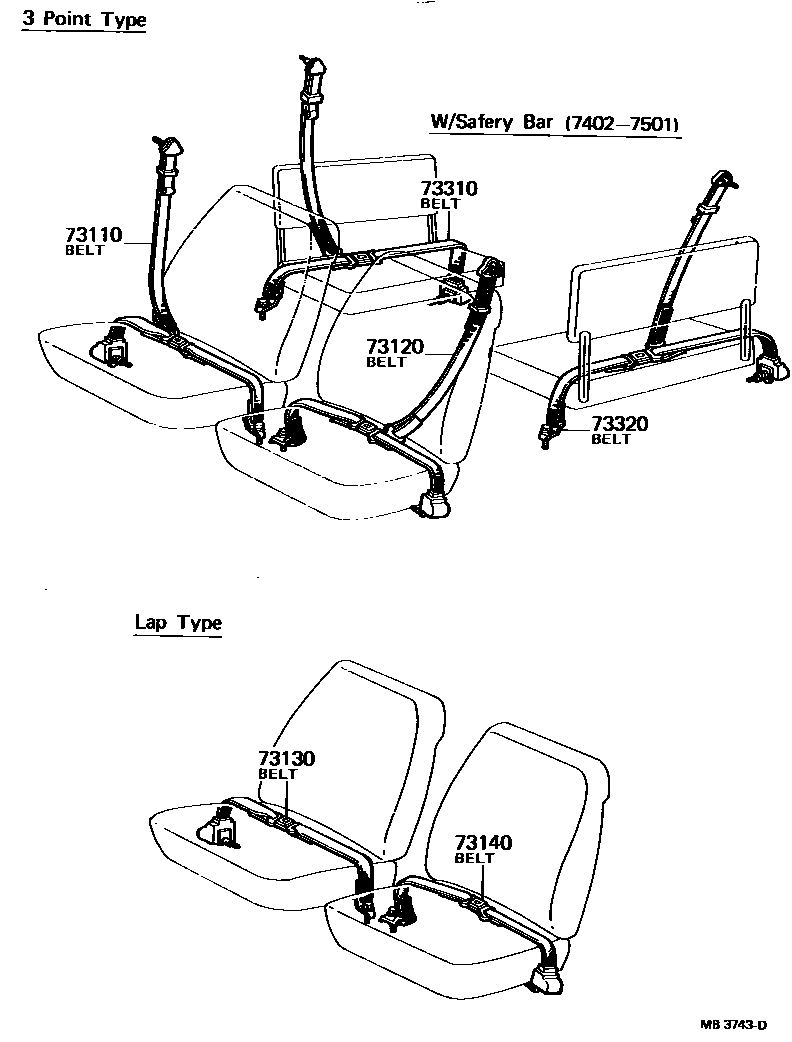

73110BELT ASSY, FRONT SEAT 3 POINT TYPE, RH

main71830-90326iBJ4#,FJ40,43197402-197901

SEPARATE SEAT

main71840-90353-04iFJ55196903-197109

BLUE

main71840-90354iFJ55197109-197111

main71840-90356iFJ55197111-197501

main71840-90358iFJ55197501-197509

main71840-90364iFJ55197509-197901

main71850-90337iBJ40,FJ40..V197303-197709

BENCH SEAT

73120BELT ASSY, FRONT SEAT 3 POINT TYPE, LH

main71840-90326iBJ4#,FJ40,43197402-197901

SEPARATE SEAT

main71840-90358iFJ55197501-197509

main71840-90364iFJ55197509-197901

main71850-90337iBJ4#,FJ40,43..RB; BJ40,FJ40..V197709-197901

BENCH SEAT

73130BELT ASSY, FRONT SEAT LAP TYPE, RH

main71830-90321iBJ4#,FJ40,43197209-197901

SEPARATE SEAT

main71840-90300iFJ40..TPS..ARL197505-197510

main71840-90309iFJ40..TPS..ARL197510-197611

main71840-90331iBJ4#,FJ4#,HJ45..LHD..GEN197901-198007

BENCH SEAT

main71840-90351-04iFJ55196903-197109

BLUE

main71840-90355iFJ55197109-197111

main71840-90357iFJ55197111-197209

main71850-60012-04iFJ4#196903-197109

BLUE

main71850-60013iBJ4#,FJ4#,HJ45197109-197901

BENCH SEAT

73140BELT ASSY, FRONT SEAT LAP TYPE, LH

main71840-90300iFJ40..TPS..ARL197505-197510

main71840-90309iFJ40..TPS..ARL197510-197611

main71840-90321iBJ4#,FJ40,43197209-197901

SEPARATE SEAT

main71840-90331iBJ4#,FJ4#,HJ45..RHD..GEN197901-198007

BENCH SEAT

main71850-60012-04iFJ4#196903-197109

BLUE

main71850-60013iBJ4#,FJ4#,HJ45197109-197901

BENCH SEAT

73310BELT ASSY, REAR SEAT 3 POINT TYPE, RH

main71920-90300iBJ40197402-197501

FOR W/SAFETY BAR

73320BELT ASSY, REAR SEAT 3 POINT TYPE, LH

main71920-90300iBJ40197402-197501

FOR W/SAFETY BAR

6 parts on this diagram · 8 diagrams in section
