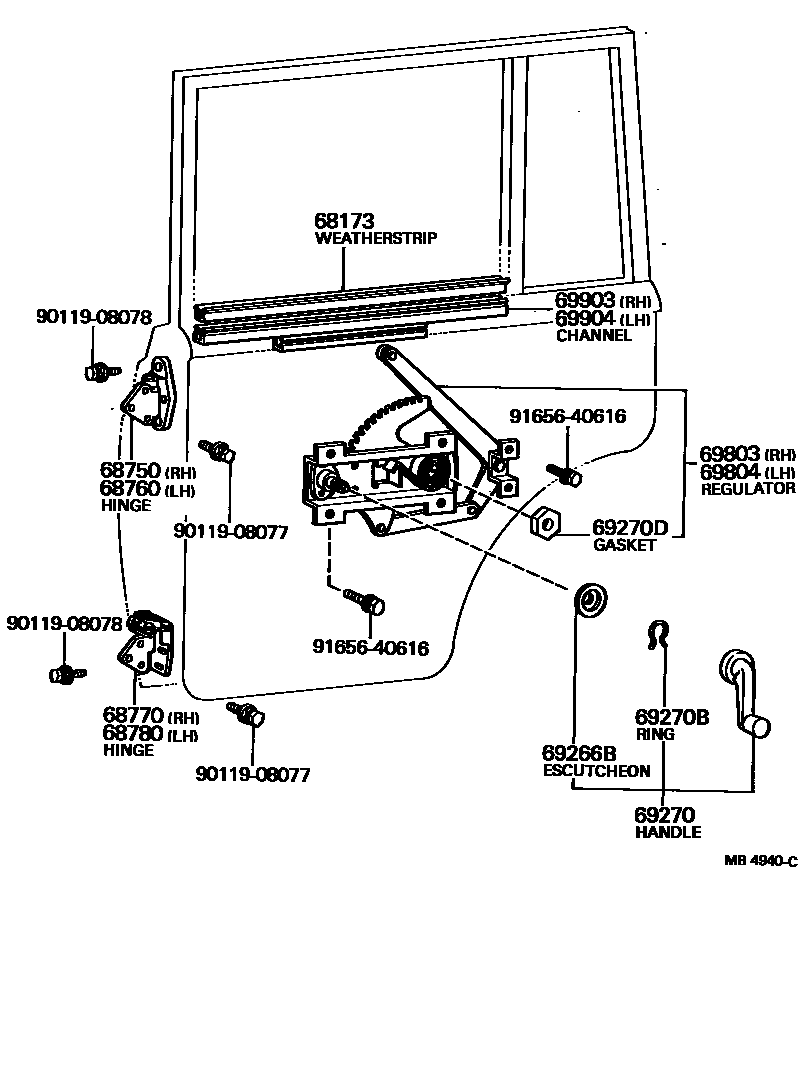

REAR DOOR WINDOW REGULATOR & HINGE

68173WEATHERSTRIP, REAR DOOR GLASS CHANNEL

main68173-90351×2iFJ55196903-197901

main68173-90352×2iFJ55197901-198007

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-90351iFJ55196903-198007

68760HINGE ASSY, REAR DOOR, UPPER LH

main68750-90351iFJ55196903-197903

main68760-90351iFJ55197903-198007

68770HINGE ASSY, REAR DOOR, LOWER RH

main68730-90352iFJ55196903-198007

68780HINGE ASSY, REAR DOOR, LOWER LH

main68740-90352iFJ55196903-198007

69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)

main69272-30010×2iFJ55196903-198007

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-10040-01×2iFJ55197803-198007

BLACK

main69260-12010×2iFJ55197509-197511

main69260-39015×2iFJ55196903-197509

main69260-90351×2iFJ55197511-197803

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iFJ55196903-197901

main90520-01274×2iFJ55197901-198007

69270DGASKET(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main69848-30010×2iFJ55197204-198007

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-90351iFJ55196903-197509

main69803-90352iFJ55197509-198007

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-90351iFJ55196903-197509

main69804-90352iFJ55197509-198007

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69903-90351iFJ55196903-198007

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69903-90351iFJ55196903-198007

9011908077

main90119-08077

9011908078

main90119-08078

9165640616

main91656-40616

16 parts on this diagram · 1 diagram in section
