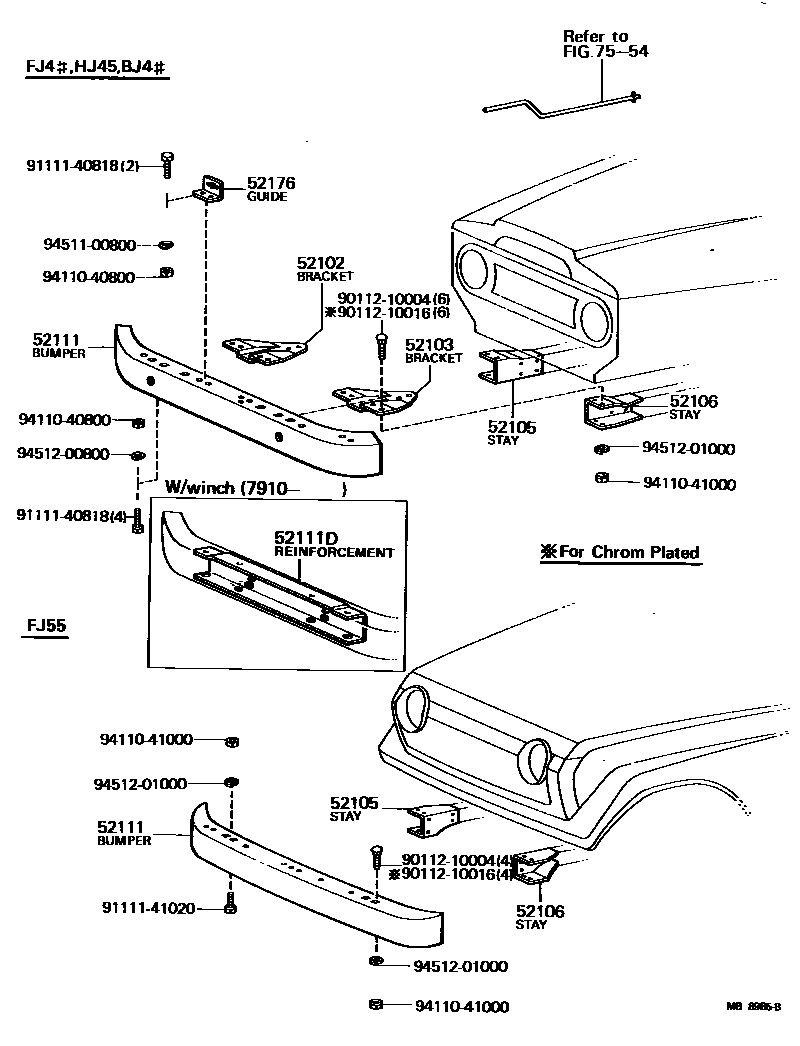

FRONT BUMPER & BUMPER STAY

52102BRACKET SUB-ASSY, FRONT BUMPER, RH

main52116-60010iBJ4#,FJ4#,HJ45196903-198007

52103BRACKET SUB-ASSY, FRONT BUMPER, LH

main52116-60010iBJ4#,FJ4#,HJ45196903-198007

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52141-60010iBJ4#,FJ4#,HJ45196903-198007

main52141-60020iFJ55196903-198007

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52142-60010iBJ4#,FJ4#,HJ45196903-198007

main52142-60020iFJ55196903-198007

52111BUMPER ASSY, FRONT

main52111-60030iBJ4#,FJ4#,HJ45196903-198007

main52111-60040iFJ55196903-198007

main52111-60050iFJ55196903-197509

CHROME PLATED

main52111-60060iBJ4#,FJ4#,HJ45196903-197509

CHROME PLATED

52111DREINFORCEMENT, FRONT BUMPER

main52131-60010iBJ4#,FJ4#,HJ45197910-198007

W/WINCH

52176GUIDE, STARTING HANDLE

main52171-69020iFJ4#,HJ45196903-197901

7554TOOL BOX & LICENSE PLATE BRACKET

→ Go to FIG 75-54

9011210004

main90112-10004

9011210016

main90112-10016

9111140818

main91111-40818

9111141020

main91111-41020

9411040800

main94110-40800

9411041000

main94110-41000

9451100800

main94511-00800

9451200800

main94512-00800

9451201000

main94512-01000

17 parts on this diagram · 1 diagram in section
