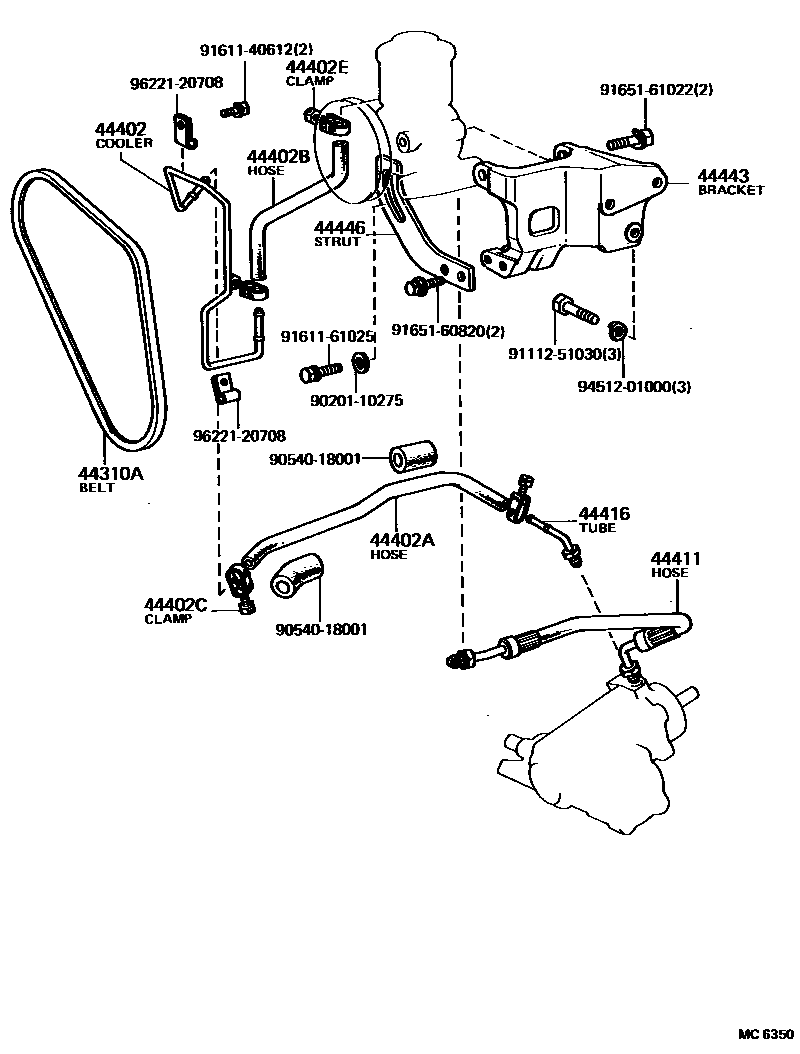

POWER STEERING TUBE

0001 1 0003 1 0004 1 0005 1

44310ABELT, V(FOR VANE PUMP)

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44420-60040iFJ55..ARL197901-197909

main44425-60050iFJ40,45..ARL197901-197909

44402AHOSE, POWER STEERING OIL COOLER INLET

main90445-18052iFJ4#..RHD197909-198007

main90445-18057iFJ55..ARL197901-197909

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main90445-18386iFJ40,45..ARL197901-197909

main90445-18721iFJ55..ARL197901-197909

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001×2iFJ4#,55..RHD197909-198007

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001×2iFJ40,45,55..ARL197901-197909

44411HOSE, PRESSURE FEED

main44411-60010iFJ40,45..ARL197901-197909

main44411-60020iFJ40..ARL197901-198007

N.S.W. SPEC.W/COOLER,GEAR SIDE

main44411-60040iFJ55..RHD197909-198007

main44411-60060iFJ40..ARL197901-198007

NEW SOUTH WALES SPEC.GEAR SIDE

main44411-60070iFJ40..ARL197901-198007

NEW SOUTH WALES SPEC.PUMP SIDE

main44411-60080iFJ4#..LHD..GEN197909-198007

GEAR SIDE

main44411-60090iFJ4#..LHD..GEN197909-198007

PUMP SIDE

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60010iFJ40,45..ARL197901-197909

main44416-60020iFJ4#..LHD..GEN197909-198007

main44416-60030iFJ55..RHD197909-198007

main44416-60040iFJ40..ARL197901-198007

NEW SOUTH WALES SPEC.

44443BRACKET, PUMP

main44443-60010iFJ4#,55..RHD; FJ4#..LHD..GEN197909-198007

main44443-60020iFJ40..ARL197901-198007

NEW SOUTH WALES SPEC.

44446STRUT, ADJUSTING

main44446-60010iFJ4#,55..RHD; FJ4#..LHD..GEN197909-198007

9020110275

main90201-10275

9054018001

main90540-18001

9111251030

main91112-51030

9161140612

main91611-40612

9161161025

main91611-61025

9165160820

main91651-60820

9165161022

main91651-61022

9451201000

main94512-01000

9622120708

main96221-20708

19 parts on this diagram · 4 diagrams in section
