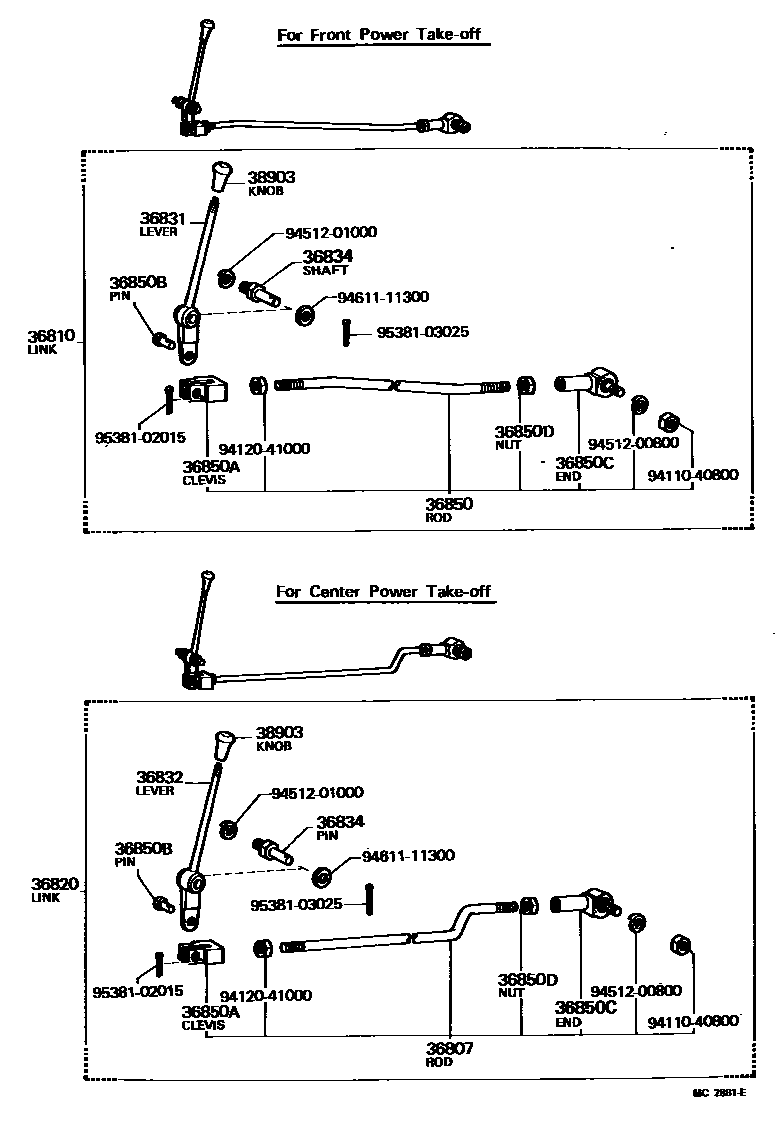

POWER TAKE-OFF LEVER & LINK

0001 1 0003 1

36807ROD SUB-ASSY, POWER TAKE-OFF SHIFT

main36807-60010iFJ4#..3F197501-197901

main36860-60010iFJ55..3F197501-197901

main36860-60020iBJ4#,FJ4#,55,HJ45..4F197501-197901

36810LINK ASSY, FRONT POWER TAKE-OFF SHIFT

main36810-60010iFJ40,43197201-197209

FOR 3-SPEED TRANSMISSION

main36810-60020iFJ55196903-197501

FOR 3-SPEED TRANSMISSION

main36810-60030iBJ4#,FJ4#,55,HJ45..4F197501-197901

main36810-60040iFJ45197201-197209

FOR 3-SPEED TRANSMISSION

36820LINK ASSY, CENTER POWER TAKE-OFF SHIFT

main36820-60010iFJ40,43,45196903-197501

main36820-60020iFJ55..3F197501-197901

main36820-60030iBJ4#,FJ4#,55,HJ45..4F197501-197901

36831LEVER, POWER TAKE-OFF SHIFT

main36831-60030iFJ45197201-197209

FOR 4-SPEED TRANSMISSION

main36831-60040iFJ45197201-197209

FOR 3-SPEED TRANSMISSION

main36831-60051iFJ40,43,45196903-197201

FOR 3-SPEED TRANSMISSION

main36831-60060iBJ4#,FJ4#,HJ45..RHD..4F197901-198007

main36831-60070iBJ4#,FJ4#,HJ45..LHD..4F197901-198007

36832LEVER, CENTER POWER TAKE-OFF SHIFT

main36831-60020iFJ4#..3F197501-197901

main36831-60030iFJ4#..4F;BJ4#,FJ55,HJ45197501-197901

36834SHAFT, LEVER SUPPORT

main36834-60010iFJ55197901-198007

36850ROD ASSY, POWER TAKE-OFF SHIFT

main36850-60010iFJ4#..3F197501-197901

main36850-60020iFJ55196903-197501

FOR 3-SPEED TRANSMISSION

main36850-60030iFJ45,55,HJ45197110-197209

FOR 4-SPEED TRANSMISSION

36850ACLEVIS (FOR POWER TAKE-OFF SHIFT LEVER)

main33724-60010×2iBJ4#,FJ40,43,45,55,HJ45196903-197901

36850BPIN (FOR POWER TAKE-OFF SHIFT LEVER)

main90240-08028iFJ55197901-198007

36850CEND ASSY, POWER TAKE-OFF SHIFT ROD

main33740-35011iFJ45,HJ45197110-197209

RH.SCREW,FOR 4-SPEED T/M

main33750-35011×2iFJ40,43,45196903-197501

LH.SCREW,FOR 3-SPEED T/M

36850DNUT (FOR POWER TAKE-OFF SHIFT ROD)

main90170-08052×2iFJ4#..3F197501-197901

LH.SCREW

main94120-40800iFJ55196903-198007

RH.SCREW

38903KNOB SUB-ASSY, CONTROL

main33504-22010×2iBJ4#,FJ40,43,45,55,HJ45197109-197608

main36303-60010×2iFJ40,43,45,55196903-197109

main36303-60050iBJ4#,FJ4#,55,HJ45197608-198007

FOR FRONT POWER TAKE-OFF

main36303-60060iBJ4#,FJ4#,55,HJ45197608-197901

FOR CENTER POWER TAKE-OFF

9411040800

main94110-40800

9412041000

main94120-41000

9451200800

main94512-00800

9451201000

main94512-01000

9461111300

main94611-11300

9538102015

main95381-02015

9538103025

main95381-03025

19 parts on this diagram · 2 diagrams in section
