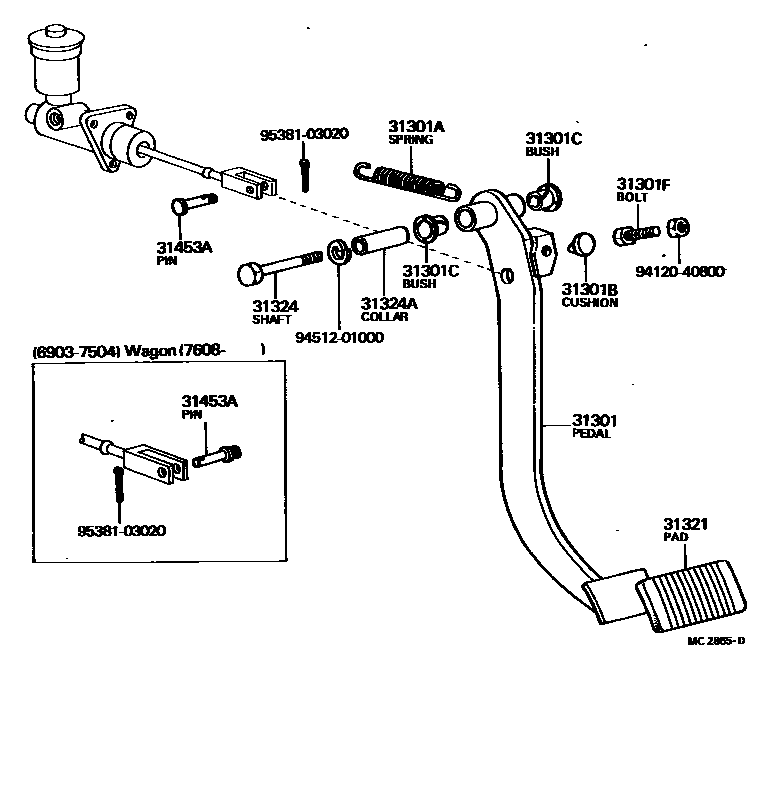

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-60020iBJ4#,FJ4#,HJ45196903-197501

FOR SINGLE MASTER CYLINDER

main31301-60030iFJ55..RHD196903-197501

FOR SINGLE MASTER CYLINDER

main31301-60040iFJ55..LHD196903-197608

FOR SINGLE MASTER CYLINDER

main31301-60050iFJ40,55..LHD197101-197301

FOR TANDEM MASTER CYLINDER

main31301-60051iBJ4#,FJ4#,55,HJ45..LHD197901-198007

main31301-60060iFJ4#,55..RHD197309-197311

FOR TANDEM MASTER CYLINDER

main31301-60061iBJ4#,FJ4#,55,HJ45..RHD197709-197901

main31301-60062iBJ4#,FJ4#,55,HJ45..RHD197901-198007

31301ASPRING(FOR CLUTCH PEDAL)

main90506-12023iBJ4#,FJ4#,HJ45..EUR,GEN197501-197608

FOR SINGLE MASTER CYLINDER

main90506-12450iFJ4#197309-197311

FOR TANDEM MASTER CYLINDER

main90506-12451iFJ55197409-198007

FOR TANDEM MASTER CYLINDER

main90506-16027iFJ55196903-197309

main90506-18189iFJ40,43197301-197309

FOR TANDEM MASTER CYLINDER

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iFJ40..LHD197101-197109

FOR TANDEM MASTER CYLINDER

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iBJ4#,FJ4#,55,HJ45196903-198007

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08071iFJ55196903-196908

main90101-10085iBJ40,FJ40..GEN197608-197709

FOR SINGLE MASTER CYLINDER

main91131-50825iBJ4#,FJ4#,HJ45197311-198007

FOR TANDEM MASTER CYLINDER

main91131-50835iFJ40197211-197301

FOR TANDEM MASTER CYLINDER

main91131-50836iFJ40..LHD197101-197109

FOR TANDEM MASTER CYLINDER

31321PAD, CLUTCH PEDAL

main31321-36010iBJ4#,FJ4#,55,HJ45197901-198007

main31321-61010iBJ4#,FJ4#,55,HJ45196903-197901

31324SHAFT, CLUTCH PEDAL

main91121-51070iBJ4#,FJ4#,55,HJ45197211-198007

main91121-51071iFJ4#,55,HJ45196903-197211

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iBJ4#,FJ4#,55,HJ45196903-198007

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-10002iBJ4#,FJ4#,55,HJ45197109-197504

main90249-10018iFJ4#,55196903-197109

main90249-10048iFJ55..LHD;BJ4#,FJ4#,HJ45197608-198007

9412040800

main94120-40800

9451201000

main94512-01000

9538103020

main95381-03020

12 parts on this diagram · 7 diagrams in section
