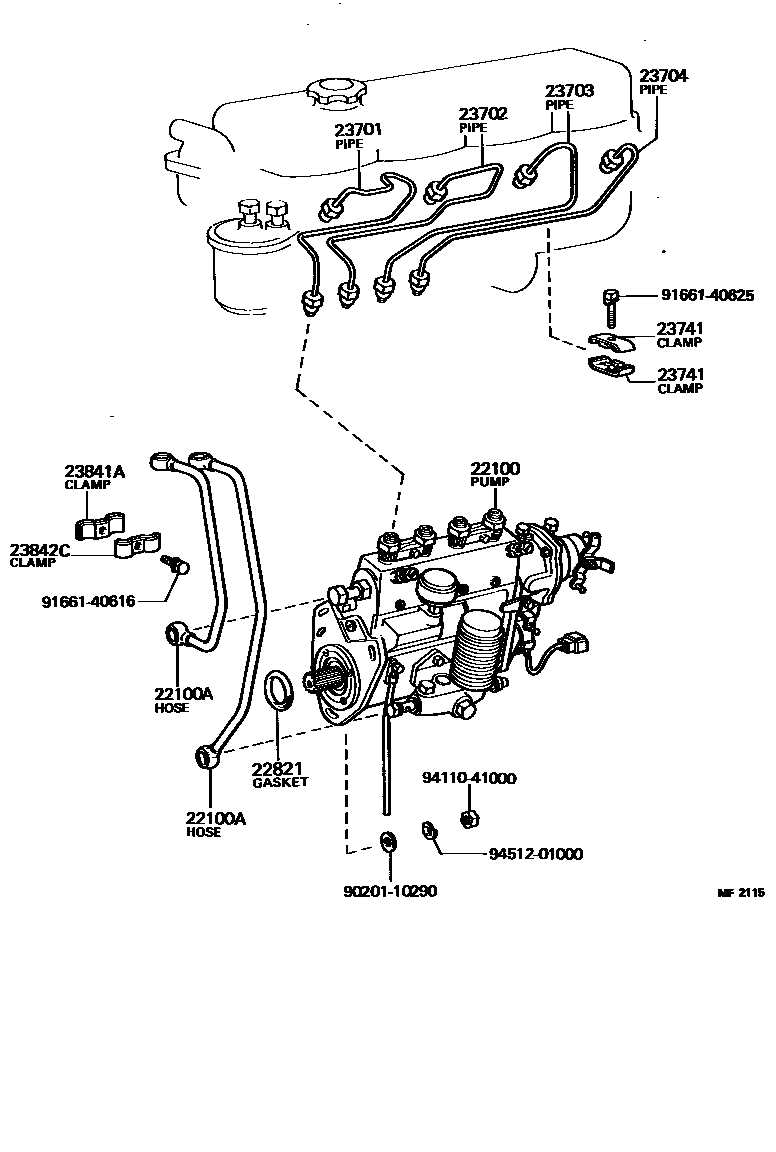

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-47040iH..HJ45197204-197209

main22100-47041iH..HJ45197209-197306

main22100-47042iH..HJ45197306-197501

main22100-47043iH..HJ45197501-197709

main22100-47050iH..HJ45..ARL197604-197709

main22100-47100iH..HJ45..ARL,EUR197709-197811

W/EDIC

main22100-47140iH..HJ45..EUR,GEN197709-197811

main22100-47150iH..HJ45..EUR,GEN197709-197811

W/HAC

main22100-47160iH..HJ45..EUR,GEN197709-197811

W/EDIC

main22100-47170iH..HJ45..EUR,GEN197709-197811

W/EDIC & HAC

main22100-47180iH..HJ45197709-198007

main22100-47190iH..HJ45..ARL,EUR197709-198007

W/HAC

main22100-47200iH..HJ45197811-198007

W/EDIC

main22100-47210iH..HJ45197709-198007

W/EDIC & HAC

main22100-56020iB..BJ4#197402-197709

W/EDIC

main22100-56030iB..BJ4#197402-197709

main22100-56121iB..BJ4#..GEN197709-197901

W/EDIC

main22100-56131iB..BJ4#..GEN197709-197901

W/EDIC & HAC

main22100-56141iB..BJ4#..GEN197709-197901

main22100-56151iB..BJ4#..GEN197709-197901

W/HAC

main22100-56161iB..BJ4#..ARL,EUR197709-198007

W/EDIC

main22100-56171iB..BJ4#..GEN197901-198007

W/EDIC & HAC

main22100-56181iB..BJ4#..EUR197709-198007

main22100-56191iB..BJ4#..GEN197901-198007

W/HAC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-47010iH..HJ45197204-197306

FEED PUMP

main23801-47020iH..HJ45197306-198007

FEED PUMP

main23801-56020iB..BJ4#197402-197709

FEED PUMP

main23801-56030iB..BJ4#197709-198007

L=370

main23802-47010iH..HJ45197204-197306

INJECTION PUMP

main23802-47020iH..HJ45197306-198007

INJECTION PUMP

main23802-56020iB..BJ4#197402-197709

INJECTION PUMP

main23802-56030iB..BJ4#197709-198007

L=275

22821GASKET, INJECTION PUMP

main90301-77001iB..BJ4#197811-198007

main90301-78177iH..HJ45197204-197811

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-47011iH..HJ45197204-197306

main23701-47012iH..HJ45197306-198007

main23701-56020iB..BJ4#197402-198007

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-47011iH..HJ45197204-197306

main23702-47012iH..HJ45197306-198007

main23702-56020iB..BJ4#197402-198007

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-47011iH..HJ45197204-197306

main23703-47012iH..HJ45197306-198007

main23703-56020iB..BJ4#197402-198007

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-47011iH..HJ45197204-197306

main23704-47012iH..HJ45197306-198007

main23704-56020iB..BJ4#197402-198007

23741CLAMP, INJECTION PIPE, NO.1

main23741-46010iH..HJ45197204-198007

2WAY

main23741-47010iH..HJ45197204-197306

4WAY

main23741-56010iH..HJ45197402-198007

23841ACLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)

main23841-56010iB..BJ4#197204-198007

23842CCLAMP, FUEL PIPE, NO.2(FOR INJECTION PUMP)

main23842-56010iB..BJ4#197204-198007

9020110290

main90201-10290

9166140616

main91661-40616

9166140625

main91661-40625

9411041000

main94110-41000

9451201000

main94512-01000

15 parts on this diagram · 4 diagrams in section
