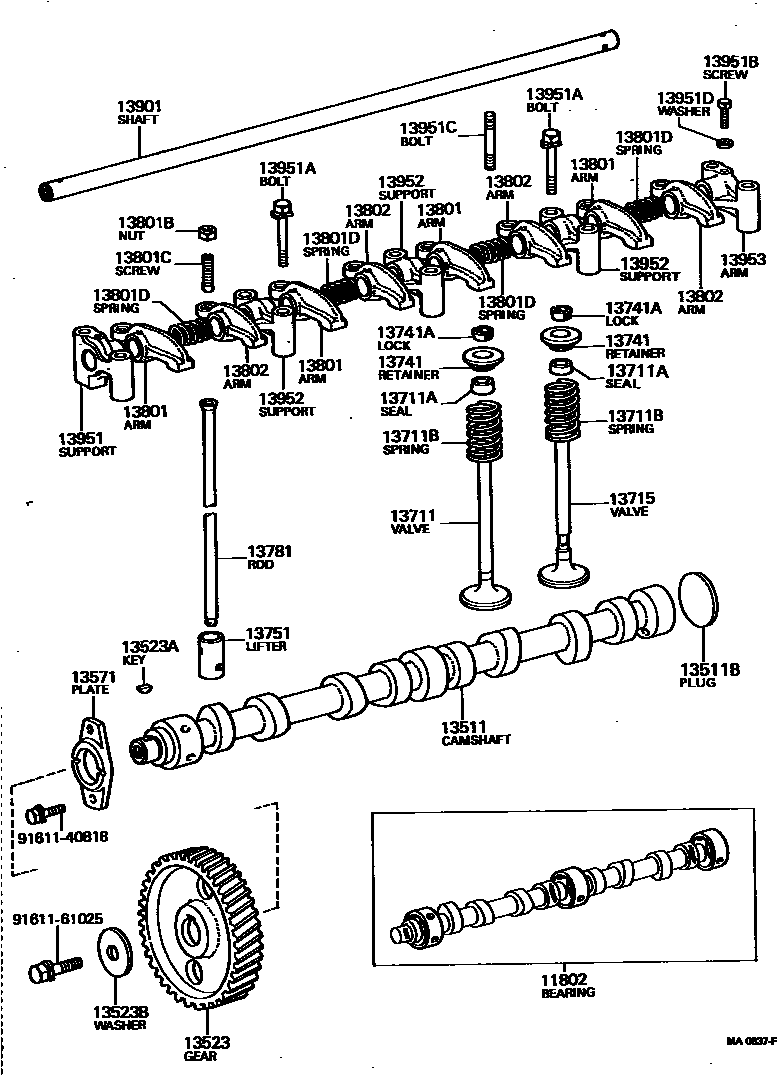

CAMSHAFT & VALVE
11802BEARING SET, CAMSHAFT
STD
STD
STD
U/S 0.125
U/S 0.125
U/S 0.125
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.75
U/S 1.00
U/S 1.00
13511BPLUG, EXPANSION(FOR CAMSHAFT)
OD=48
OD=51
13523GEAR OR SPROCKET, CAMSHAFT TIMING
N=50
N=44
N=54
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523BWASHER, PLATE(FOR TIMING GEAR)
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
FOR INTAKE
FOR EXHAUST
FOR INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
WD=4.5,CW=6.5
WD=4.5,CW=6.5
WD=4.5,CW=6
13741ALOCK, VALVE SPRING RETAINER
13801CSCREW, VALVE ADJUSTING
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
WD=1.6,CW=7.5
13951ABOLT(FOR ROCKER SUPPORT SET)
8-1.25PX50-30
8-1.25PX60-30
8-1.25PX50-30
8-1.25PX60-30
13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
13951CBOLT, STUD(FOR ROCKER SUPPORT)
L=122,S=15&15&20
L=81,S=9&26
L=84,S=9&29
L=90,S=10&50
13951DWASHER, SEAL(FOR HEAD COVER SET)
13953SUPPORT, VALVE ROCKER, NO.3
sub13953-56011
9161140818
main91611-40818
9161161025
main91611-61025
30 parts on this diagram · 4 diagrams in section
