ENGINE OVERHAUL GASKET KIT

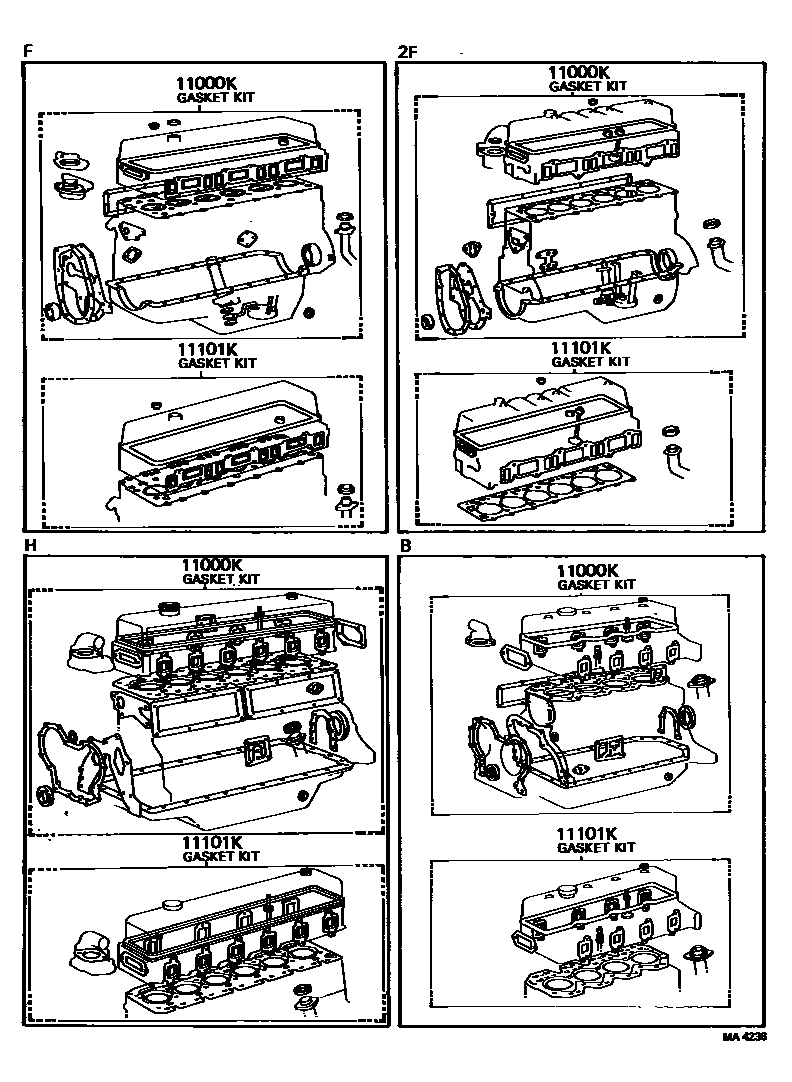

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-47011i197204-197306

main04111-47012i197306-197706

main04111-47013i197706-197709

main04111-47014i197709-198007

main04111-56010i197402-197601

main04111-56011i197601-197709

main04111-56012i197709-197806

main04111-56013i197806-197911

main04111-56014i197911-198007

main04111-60080i196903-197203

main04111-60081i197203-197309

main04111-60082i197309-197501

main04111-60090i196903-196909

main04111-61010i197501-197607

main04111-61011i197607-197608

main04111-61012i197608-197712

main04111-61013i197712-197901

main04111-61030i197901-198007

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-47011i197204-197306

main04112-47012i197306-197706

main04112-47013i197706-197709

main04112-47014i197709-198007

main04112-56010i197402-197601

main04112-56011i197601-197709

main04112-56012i197709-197806

main04112-56013i197806-198007

main04112-60080i196903-197309

main04112-60081i197309-197501

main04112-61010i197501-197607

main04112-61011i197607-197608

main04112-61012i197608-197901

main04112-61030i197901-198007

2 parts on this diagram · 1 diagram in section
