STANDARD TOOL

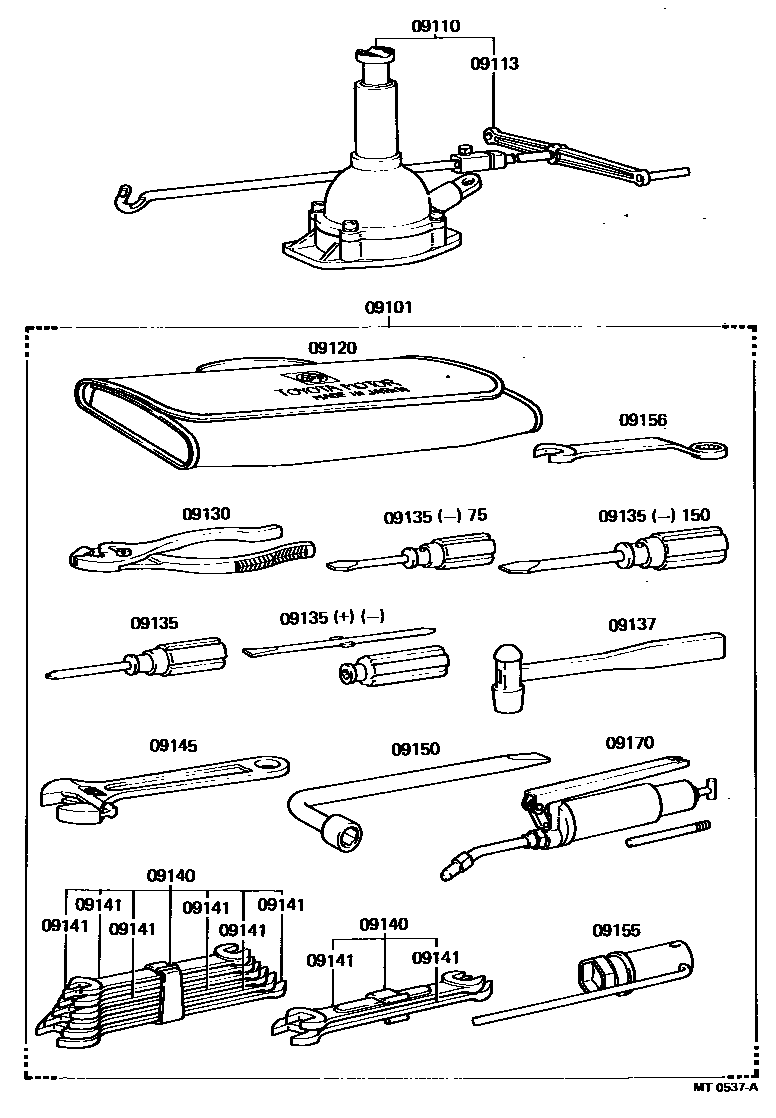

Parts diagram

09101TOOL SET, STANDARD W/O JACK

main09101-60020i196903-197203

main09101-60031i197204-197402

main09101-60050i197204-197901

main09101-60060i197402-197901

main09101-60090i197901-198007

main09101-60100i197901-198007

09110JACK ASSY

main09110-35011i197204-197901

main09110-35050i196903-197203

main09110-60010i197901-198007

09113HANDLE, JACK

main09113-35011i197204-197901

main09113-35040i196903-197203

main09113-60010i197901-198007

09120BAG, TOOL

main09120-60010i196903-197203

main09120-60050i197204-198007

09130PLIERS

main09130-00020i196903-197901

main09130-00030i197901-198007

09135DRIVER, SCREW

main09135-00010i197204-198007

(+)(-)

main09135-00030i196903-197203

(-) 75

main09135-00060i196903-197203

(-) 150

main09135-00090i196903-197203

(+)

09137HAMMER

main09137-00010i196903-197203

09140SPANNER SET

main09140-00031i196903-196908

main09140-00040i196908-197203

main09140-22010i197204-197901

main09140-27010i197901-198007

09141SPANNER

main09141-00011i196903-197203

8X10

main09141-00030i196903-197901

10X12

main09141-00032i197901-198007

10X12

main09141-00040i196903-197203

12X14

main09141-00050i196903-197901

14X17

main09141-00060i196903-196908

17X19

main09141-00080i196903-196908

21X23

main09141-00100i196908-197203

21X23

main09141-12020i197901-198007

14X17

09145WRENCH, MONKEY

main09145-00030i196903-198007

09150WRENCH, HUB NUT BOX

main09150-30011i196903-197901

main09150-60010i197901-198007

09155WRENCH, SPARK PLUG

main09155-36010i196903-197901

main09155-44010i197901-198007

09156WRENCH, GROW PLUG

main09156-00020i197204-197306

09170PUMP ASSY, GREASE

main09170-00010i196903-197203

14 parts on this diagram · 1 diagram in section
