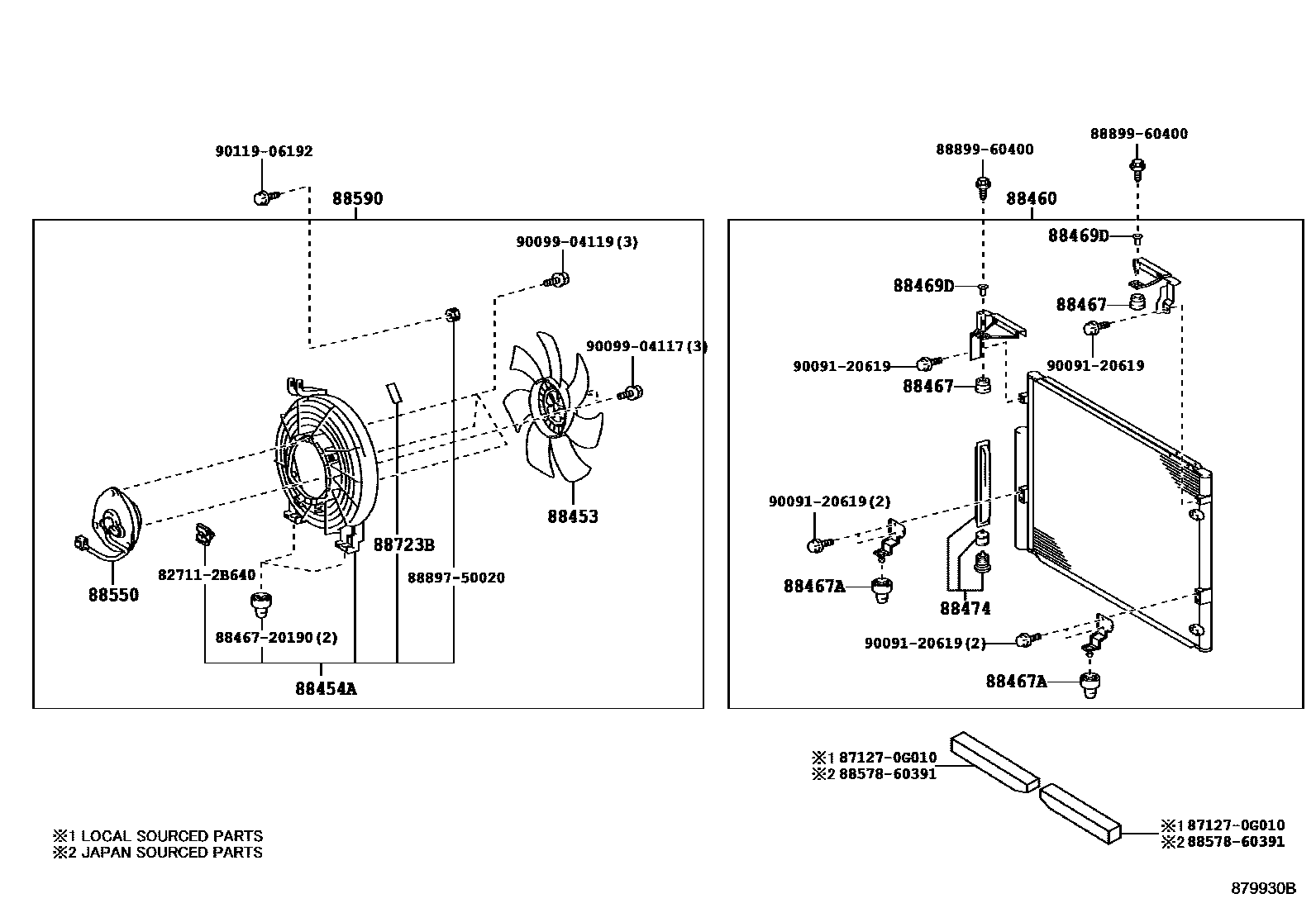

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER & FUN SHROUD 0002 1FRONT 0003 1FRONT 0004 1FRONT 0005 1FRONT 0006 1REAR

88453FAN, COOLING (FOR CONDENSER)

main88453-60020iGRJ200..5F200712-200811

88454ASHROUD, FAN

main88454-0G020iGRJ200,URJ202201202-201601

main88454-60050iGRJ200..5F200712-200811

88460CONDENSER ASSY, COOLER

main88460-0G050iGRJ200,URJ202201601

main88460-60400iGRJ200..5F200712-200811

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180×2iGRJ200..5F200712-200811

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-60010×2iGRJ200..5F200712-200811

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010×2iGRJ200..5F200712-200811

88474DRYER, COOLER

main88474-12030iGRJ200..5F200712-200811

main88474-17010iGRJ200,URJ202201202-201601

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-0G010iGRJ200,URJ202201202-201601

main88550-60110iGRJ200..5F200712-200811

88590BLOWER ASSY, W/SHROUD

main88590-0G030iGRJ200,URJ202201202-201601

main88590-60080iGRJ200,UZJ200..5FC200712-201202

88723BLABEL, COOLER SERVICE CAUTION

main16793-28020iGRJ200..5F200712-200811

main88596-0G010iGRJ200,URJ202201202-201601

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

871270G010PACKING, HEATER AIR DAMPER

main87127-0G010

8846720190CUSHION, COOLER CONDENSER, NO.1

main88467-20190

8857860391PAKING, COOLER AIR DUCT

main88578-60391

8889750020VALVE, COOLER MAGNET

main88897-50020

8889960400COVER, EVAPORATOR

main88899-60400

9009120619

main90091-20619

9009904117

main90099-04117

9009904119

main90099-04119

9011906192

main90119-06192

20 parts on this diagram · 6 diagrams in section
