HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

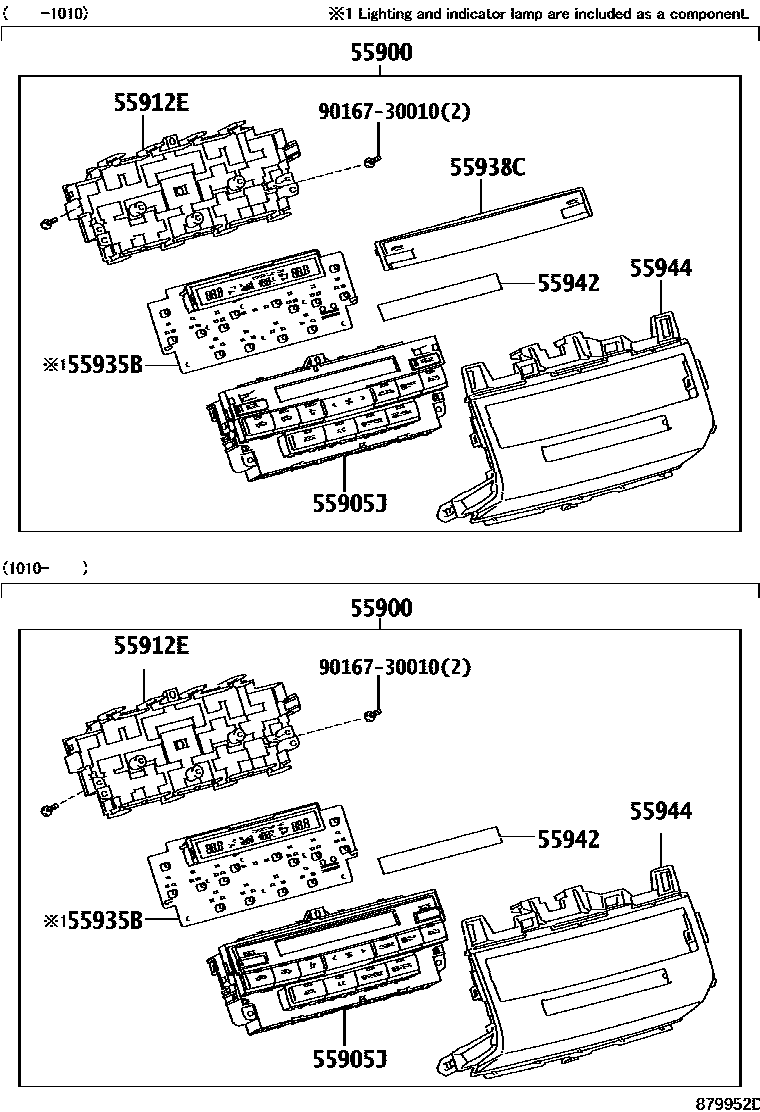

Parts diagram
55900CONTROL ASSY, AIR CONDITIONER
main55900-60F90i200712-201010
main55900-60F91i201010-201202
main55900-60L20i201202-201601
VX PACKAGE
main55900-60L20i201202-201601
VX(SPECIAL) PACKAGE
main55900-60L80i201202-201601
VX PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
55905JKNOB SUB-ASSY, CONTROL
main55905-60B20i200712-201010
main55905-60B21i201202-201601
VX(SPECIAL) PACKAGE
main55905-60B21i201010-201202
main55905-60B21i201202-201601
VX PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
main55905-60D30i201601
AUDIO-EMV & DVD & 9SPEAKER
55912EBASE, HEATER CONTROL, LOWER
main55912-60220i201202-201601
VX PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
main55912-60220i200712-201202
main55912-60220i201202-201601
VX(SPECIAL) PACKAGE
main55912-60230i201601
AUDIO-EMV & DVD & 9SPEAKER
55935BCIRCUIT, CENTER CLUSTER MODULE
main55935-60120i200712-201202
main55935-60200i201202-201601
VX(SPECIAL) PACKAGE
main55935-60200i201202-201601
VX PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
main55935-60450i201601
AUDIO-EMV & DVD & 9SPEAKER
55938CLENS, CENTER CLUSTER MODULE
main55938-60030i200712-201010
55942GUARD, HEATER CONTROL
main55942-60030i200712-201202
main55942-60030i201202-201601
VX PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
main55942-60030i201202-201601
VX(SPECIAL) PACKAGE
main55942-60060i201601
AUDIO-EMV & DVD & 9SPEAKER
55944PLATE, HEATER CONTROL SUPPORT
main55944-60050i200712-201202
main55944-60050i201202-201601
VX PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
main55944-60060i201202-201601
VX(SPECIAL) PACKAGE
main55944-60060i201202-201601
VX PACKAGE
main55944-60080i201601
main55944-60100i201601
AUDIO-EMV & DVD & 9SPEAKER
9016730010
main90167-30010

8 parts on this diagram · 7 diagrams in section
