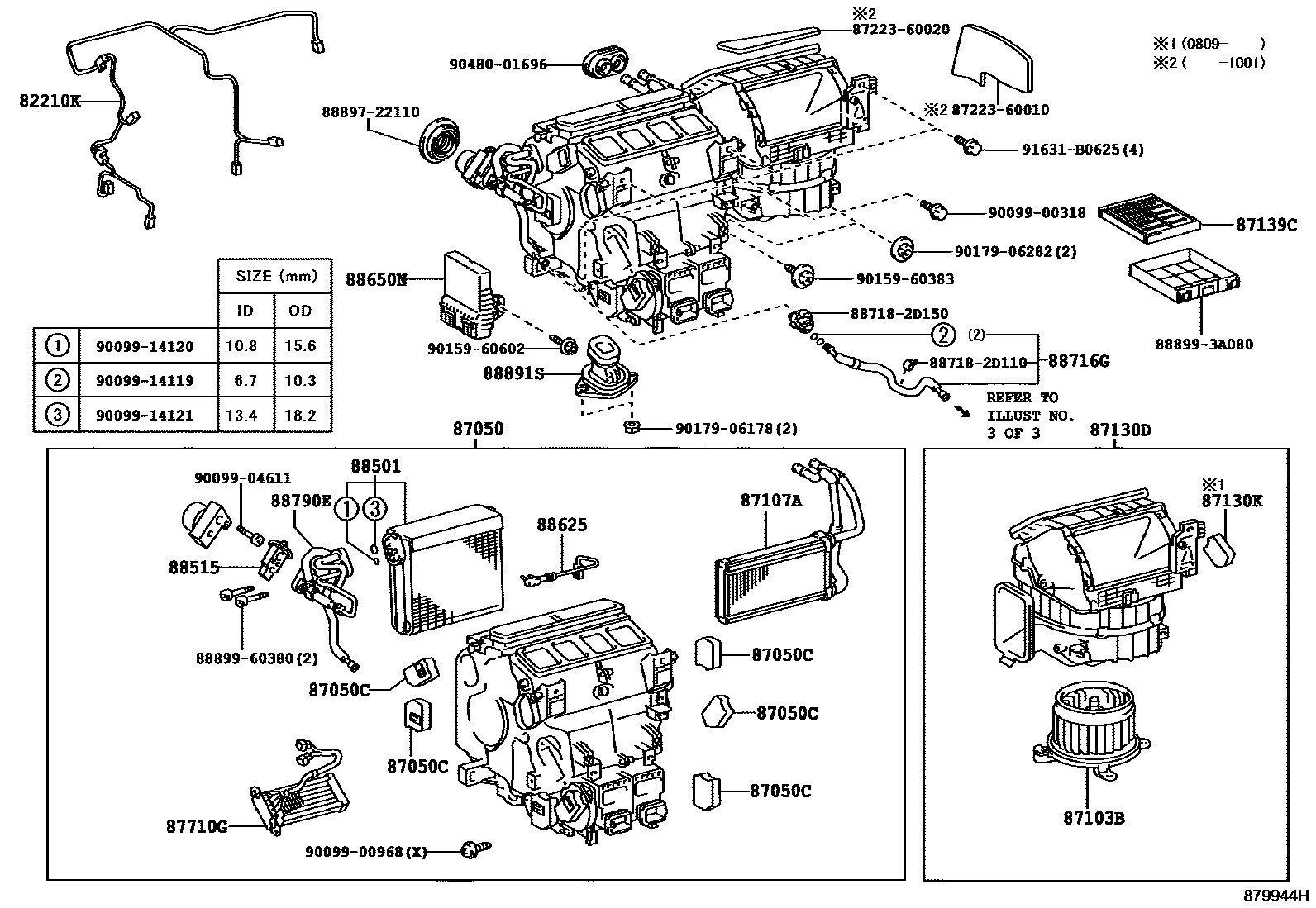

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1REAR 0005 1COOL BOX

82210KHARNESS ASSY, AIR CONDITIONER

main82212-60100iGRJ200,URJ202200712-201301

main82212-60101iGRJ200,URJ202201301-201601

main82212-60200iGRJ200,URJ202201601

87050RADIATOR ASSY, AIR CONDITIONER

main87050-60490iGRJ200..5F200712-201304

main87050-60491iURJ202201304-201312

main87050-60760iGRJ200201202-201304

main87050-60761iGRJ200201304-201312

main87050-60860iGRJ200,URJ202201312-201601

main87050-60A80iGRJ200,URJ202201601

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-50390iGRJ200..5F200712-201304

main87106-50550iGRJ200,URJ202201304-201601

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-60390iGRJ200..5F200712-201006

sub87103-60480

main87103-60480iGRJ200,UZJ200201007-201502

sub87103-60481

main87103-60481iGRJ200,URJ202201503-201601

main87103-60560iGRJ200,URJ202201601

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-60410iGRJ200,UZJ200..5FC200712-201304

sub87107-60411

main87107-60411iGRJ200,URJ202201304-201601

87130DBLOWER ASSY

main87130-60530iGRJ200,UZJ200200712-200809

sub87130-60531

main87130-60531iGRJ200..5F200809-201006

sub87130-60532

main87130-60532iGRJ200,UZJ200201007-201304

main87130-60533iGRJ200,URJ202201304-201502

sub87130-60534

main87130-60534iGRJ200,URJ202201503-201601

main87130-60670iGRJ200,URJ202201601

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-50390iGRJ200..5F200809-201304

main87106-50550iGRJ200,URJ202201304-201601

87139CFILTER, CLEAN AIR

main87139-30040iGRJ200..5F200712-201309

MICRO DUST FILTER

main87139-50100iGRJ200,URJ202201202-201601

POLLEN DEODORANT

main87139-52040iGRJ200,URJ202201202-201601

POLLEN FILTER

main87139-76010iGRJ200,URJ202201310-201601

MICRO DUST FILTER

main87139-76010iGRJ200,URJ202201601

MICRO DUST FILTER,OE PART

87710GQUICK HEATER ASSY

main87710-0G010iURJ202201407-201412

sub87710-0G030

main87710-0G020iGRJ200201407-201412

sub87710-0G040

main87710-0G030iURJ202201501-201601

main87710-0G040iGRJ200201501-201601

main87710-50020iURJ202200712-201406

sub87710-60060

main87710-60040iGRJ200201202-201406

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-60361iGRJ200..5F200712-201103

sub88501-60362

main88501-60362iGRJ200,URJ202201104-201601

88515VALVE, COOLER EXPANSION

main88515-50190iGRJ200..5F200712-201312

88625THERMISTOR, COOLER, NO.1

main88620-60020iGRJ200..5F200712-201601

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-60E30iGRJ200..5F200712-200911

main88650-60E31iGRJ200,UZJ200200911-200912

sub88650-60E32

main88650-60E32iGRJ200,UZJ200200912-201202

main88650-60J50iGRJ200,URJ202201202-201301

main88650-60J51iGRJ200,URJ202201301-201601

main88650-60Q10iGRJ200,URJ202201601

sub88650-60Q11

88716GPIPE, COOLER REFRIGERANT LIQUID, G

main88716-6C180iGRJ200..5F200712-201601

88790ETUBE & ACCESSORY ASSY, AIRCONDITIONER

main88710-60A10iGRJ200..5F200712-201601

main88710-60A11iGRJ200,URJ202201601

88891SCOVER, COOLER, NO.1

main88891-60090iGRJ200..5F200712-201601

8722360010PAD, AIR DUCT

main87223-60010

8722360020PAD, AIR DUCT

main87223-60020

887182D110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D110

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8889722110VALVE, COOLER MAGNET

main88897-22110

888993A080COVER, EVAPORATOR

main88899-3A080

8889960380COVER, EVAPORATOR

main88899-60380

9009900318

main90099-00318

9009900968

main90099-00968

9009904611

main90099-04611

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9015960383

main90159-60383

9015960602

main90159-60602

9017906178

main90179-06178

9017906282

main90179-06282

9048001696

main90480-01696

91631B0625

main91631-B0625

35 parts on this diagram · 5 diagrams in section
