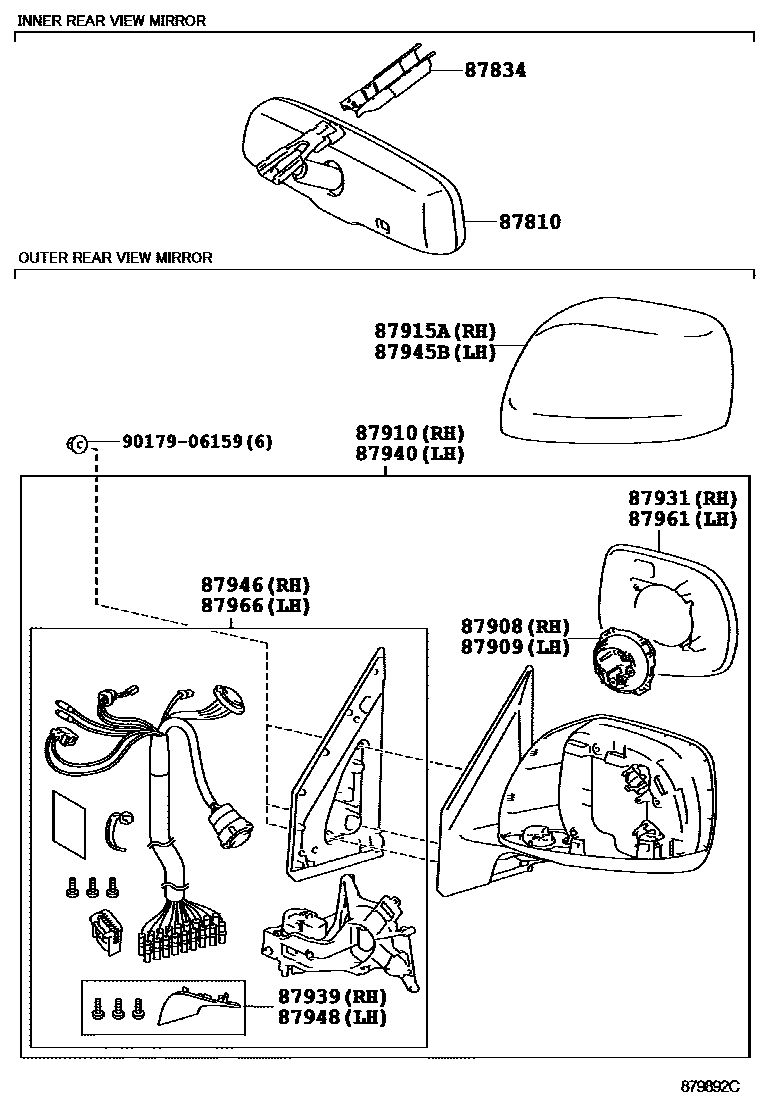

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
EMV & NAVIGATION SYSTEM-EMV & *BT
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87908ACTUATOR ASSY, OUTER MIRROR, RH
VX(SPECIAL) PACKAGE
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,VX(SPECIAL) PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
NO PAINT REQ.,VX(SPECIAL) PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
87915ACOVER, OUTER MIRROR, RH
WHITE,056
BLACK,202
DARK GREEN MC.,6R4
WHITE PEARL CS.,070
WHITE,056
BLACK,202
DARK GREEN MC.,6R4
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,VX(SPECIAL) PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
NO PAINT REQ.,VX(SPECIAL) PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
87945BCOVER, OUTER MIRROR, LH
WHITE,056
BLACK,202
DARK GREEN MC.,6R4
WHITE PEARL CS.,070
WHITE,056
BLACK,202
DARK GREEN MC.,6R4
87946RETRACTOR, OUTER MIRROR, RH
VX(SPECIAL) PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
87948COVER, OUTER MIRROR HOLE, LH
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
VX(SPECIAL) PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
9017906159
main90179-06159
15 parts on this diagram · 4 diagrams in section
