HORN

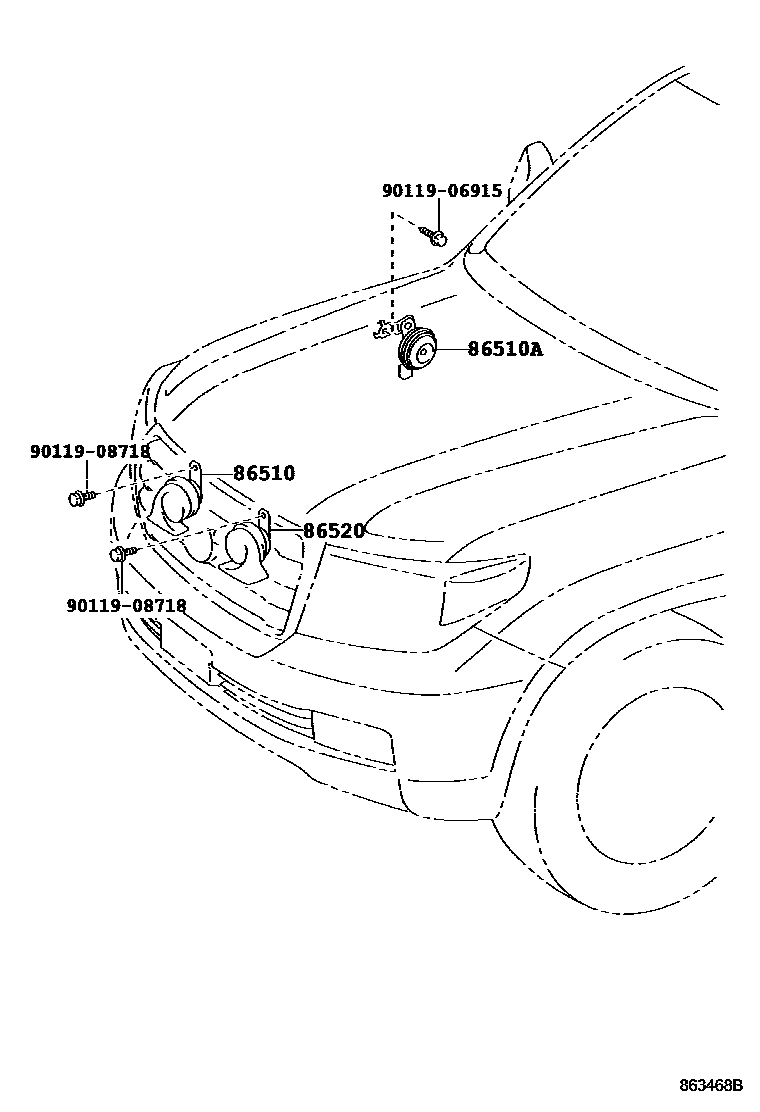

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-30710i200712-200811

main86510-30730i201005-201111

main86510-33230i201303-201601

main86510-48160i201112-201202

86510AHORN ASSY, SECURITY

main86560-60010i201202-201601

86520HORN ASSY, LOW PITCHED

main86520-30620i200712-200811

main86520-30640i201005-201111

main86520-33170i201303-201601

main86520-48120i201112-201202

9011906915

main90119-06915

9011908718

main90119-08718

5 parts on this diagram · 1 diagram in section
