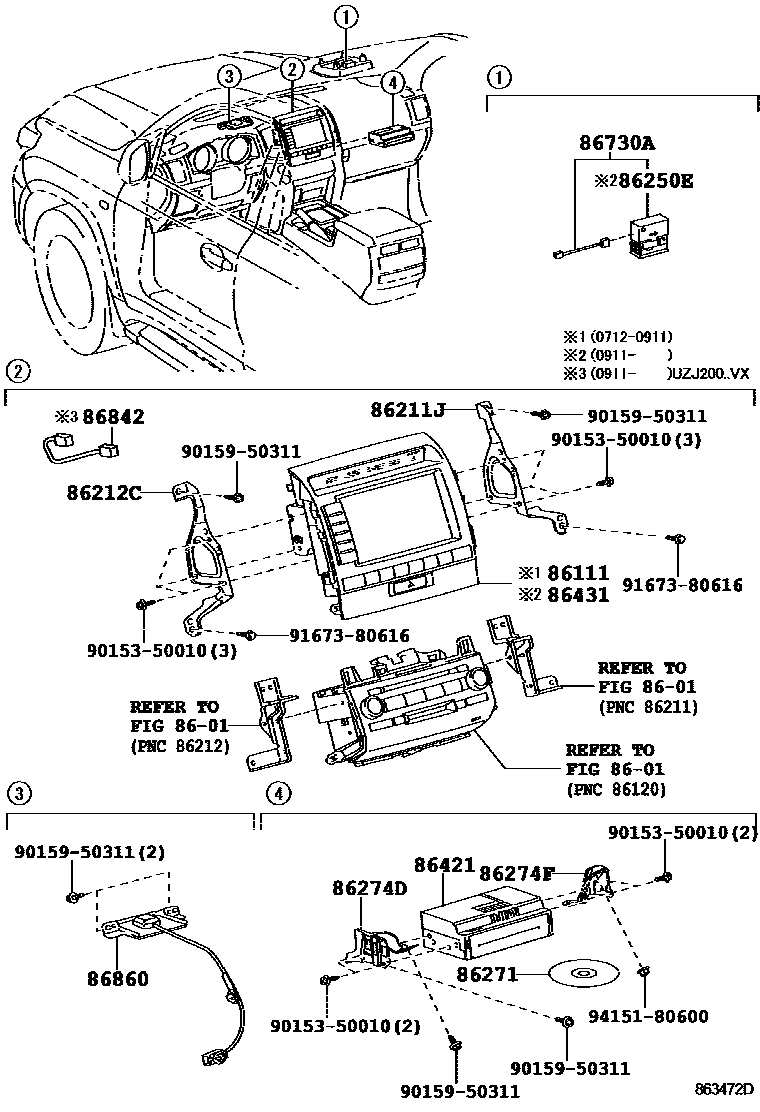

NAVIGATION & FRONT MONITOR DISPLAY
8601
86111MULTI-DISPLAY
86211JBRACKET, RADIO RECEIVER, NO.1
AUDIO-EMV DVD AM/FM 9SPEAKER
86212CBRACKET, RADIO RECEIVER, NO.2
86250EMICROPHONE ASSY, AMPLIFIER
VX(SPECIAL) PACKAGE
86271DISC, DISC PLAYER
86274DBRACKET, DISC PLAYER
86274FBRACKET, DISC PLAYER, NO.2
86421BOARD, NAVIGATION MODULE
VX(SPECIAL) PACKAGE
VX(SPECIAL) PACKAGE
86431DISPLAY, DISPLAY & NAVIGATION MODULE
FUJITSU TEN
FUJITSU TEN,AUDIO-EMV DVD AM/FM 9SPEAKER
86730AMICROPHONE ASSY, TELEPHONE
VX(SPECIAL) PACKAGE
VX(SPECIAL) PACKAGE
86842WIRE, NAVIGATION, NO.1
main86842-60500
86860ANTENNA ASSY, NAVIGATION
VX(SPECIAL) PACKAGE
VX(SPECIAL) PACKAGE
AUDIO-AM/FM & CD & 6SPEAKER
AUDIO-EMV DVD AM/FM 9SPEAKER
AUDIO-EMV DVD AM/FM 9SPEAKER
9015350010
main90153-50010
9015950311
main90159-50311
9167380616
main91673-80616
9415180600
main94151-80600
17 parts on this diagram · 3 diagrams in section
