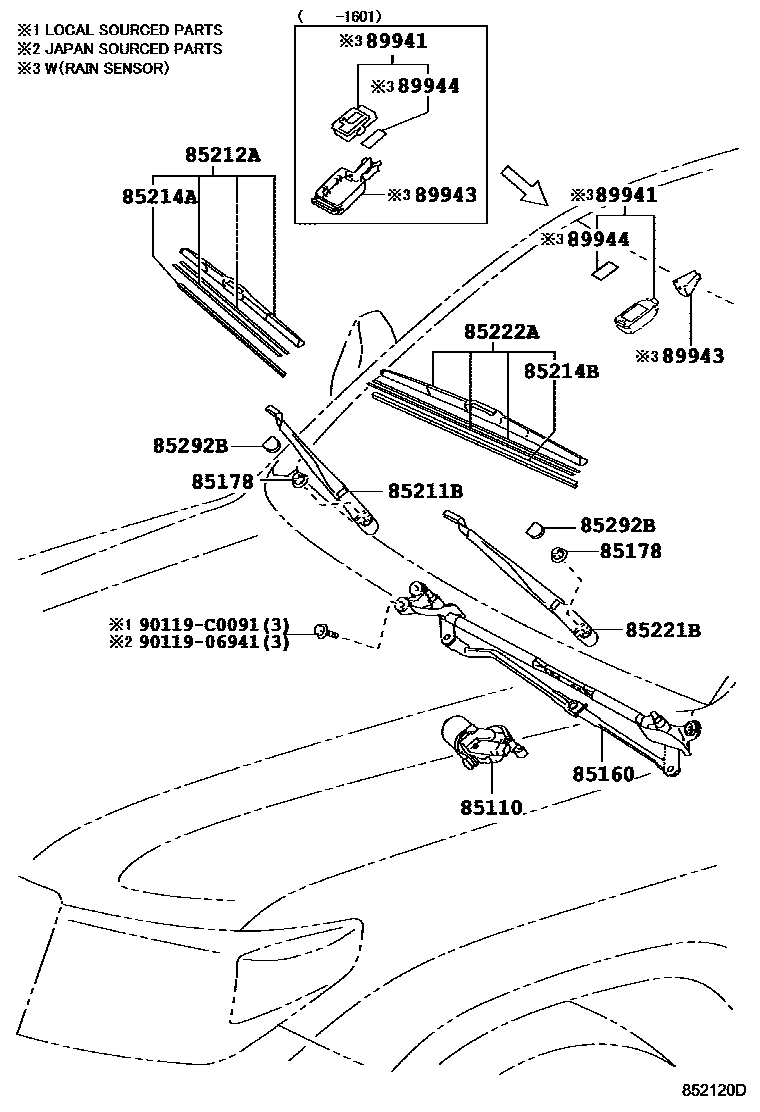

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60400iGRJ200..5F200712-200811

85160LINK ASSY, WINDSHIELD WIPER

main85150-60320iGRJ200..5F200712-200811

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iGRJ200,UZJ200..5FC200712-201202

main90182-C0012×2iGRJ200,URJ202201409-201601

85211BARM, FRONT WIPER, RH

main85211-60260iGRJ200..5F200712-200811

85212ABLADE, FR WIPER, RH

main85212-0T020iGRJ200,URJ202201202-201601

main85222-53071iGRJ200..5F200712-200811

85214ARUBBER, WIPER, RH

main85214-0T040iGRJ200,URJ202201202-201601

main85214-53080iGRJ200,UZJ200..5FC200712-201202

85214BRUBBER, WIPER, LH

main85214-30380iGRJ200,URJ202201601

85221BARM, FRONT WIPER, LH

main85221-60290iGRJ200..5F200712-200811

85222ABLADE, FR WIPER, LH

main85222-0R030iGRJ200,URJ202201202-201601

main85222-42110iGRJ200,UZJ200..5FC200712-201202

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iGRJ200,UZJ200..5FC200712-201202

89941SENSOR, RAIN

main89941-50040supersedes 89941-50081iUZJ200..VX200712-200911

VX(SPECIAL) PACKAGE

main89941-50080iUZJ200..VX200911-201112

VX(SPECIAL) PACKAGE

main89941-52010iURJ202..VXR201601

main89941-50081iUZJ200..VX201201-201202

VX(SPECIAL) PACKAGE

89943COVER, RAIN SENSOR

main89943-60030iUZJ200..VX200712-201202

main89943-76010iURJ202..VXR201601

89944TAPE, RAIN SENSOR

main89944-42010iURJ202..VXR201601

main89944-50020supersedes 89944-50021iUZJ200..VX200712-201201

VX(SPECIAL) PACKAGE

main89944-50021iUZJ200..VX201201-201202

VX(SPECIAL) PACKAGE

9011906941

main90119-06941

90119C0091

main90119-C0091

15 parts on this diagram · 1 diagram in section
