AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33010200712-201601

main72277-33021200712-201601

89170ACOMPUTER ASSY, AIRBAG

main89170-60350200712-201202

main89170-60390200712-201202

main89170-60790201202-201601

main89170-60B90201601-201612

main89170-60C10201601-201612

main89170-60D20201601-201612

89173ASENSOR, AIRBAG, FRONT RH

main89173-09830201102-201202

main89173-69205200712-201102

main89173-69225201601

main89173-79055201202-201601

89174ASENSOR, AIRBAG, FRONT LH

main89173-09830201102-201202

main89173-69205200712-201102

main89173-69225201601

main89173-79055201202-201601

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33040200712-201601

main89178-33050200712-201601

89833SENSOR, AIRBAG, REAR RH

main89833-60040200712-201202

main89833-60060201202-201601

main89833-60071201601

89834SENSOR, AIRBAG, REAR LH

main89831-60020200712-201202

main89831-60060201202-201601

main89831-60070201601

89837ASENSOR, REAR FLOOR SIDE AIRBAG

main89837-60010200712-201202

main89837-60030201202-201601

89839ACOVER, REAR FLOOR SIDE AIRBAG SENSOR

main89839-60010200712-201601

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0G030201307-201601

main89831-0G050201102-201202

main89831-60010200712-201101

main89831-60040201202-201306

main89831-60050201601

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0G030201307-201601

main89831-0G050201102-201202

main89831-60010200712-201101

main89831-60040201202-201306

main89831-60050201601

90105C0107

main90105-C0107

90105C0211

main90105-C0211

9011906978

main90119-06978

90119C0184

main90119-C0184

90178C0059

main90178-C0059

9046709077

main90467-09077

9155380618

main91553-80618

9155380622

main91553-80622

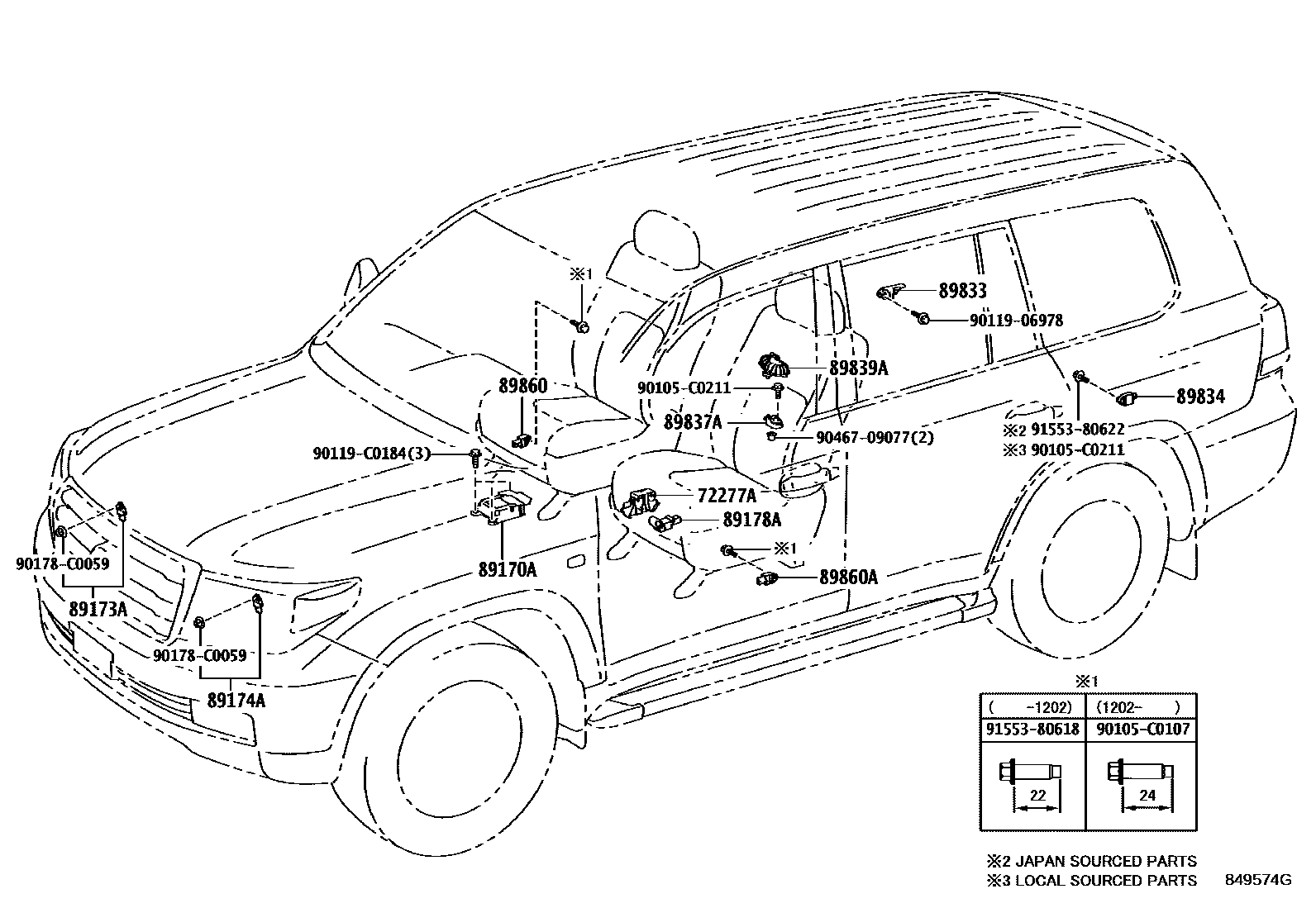

19 parts on this diagram · 1 diagram in section
