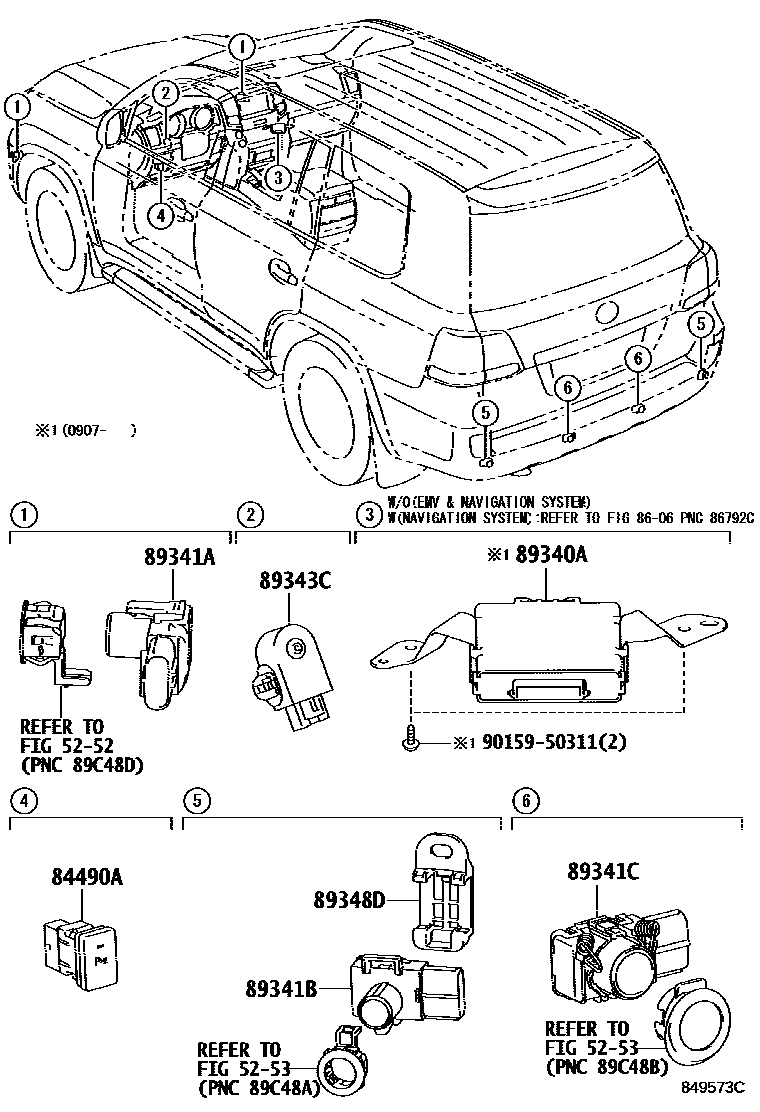

CLEARANCE & BACK SONAR

0001 1 0002 1 0003 1

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-60010200712-201202

main84490-60020201202-201501

main84490-60021201502-201601

main84490-60040201601

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-60070201202-201601

main89340-60130201601-201612

main89340-60170201601-201612

89341ASENSOR, ULTRASONIC, NO.1

main89341-12100-A2201601-201610

main89341-12100-C3201601-201610

main89341-12100-G0201601-201610

main89341-33160-A4200712-201202

main89341-33160-C0200712-201202

main89341-33160-G4200712-201202

main89341-33190-A4201202-201601

main89341-33190-C2201202-201601

main89341-33190-G2201202-201601

main89341-42060-A1201611-201612

main89341-42060-C5201611-201612

main89341-42060-G0201611-201612

89341BSENSOR, ULTRASONIC, NO.2

main89341-33140-A4200712-201202

main89341-33140-C0200712-201202

main89341-33140-G4200712-201202

main89341-60050-A1201601-201610

main89341-60050-C0201601-201610

main89341-60050-G0201601-201610

main89341-60051-A1201611-201612

main89341-60051-C0201611-201612

main89341-60051-G0201611-201612

89341CSENSOR, ULTRASONIC, NO.3

main89341-28450-A3200712-201101

main89341-28450-C0200712-201101

main89341-28450-G1200712-201101

main89341-28451-A3201102-201202

main89341-28451-C0201102-201202

main89341-28451-G1201102-201202

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-02010201601-201612

main89343-0G010201504-201601

main89343-30010200712-201202

main89343-72010201202-201503

89348DCLIP, ULTRASONIC SENSOR

main89348-33090200712-201601

9015950311

main90159-50311

10 parts on this diagram · 3 diagrams in section
