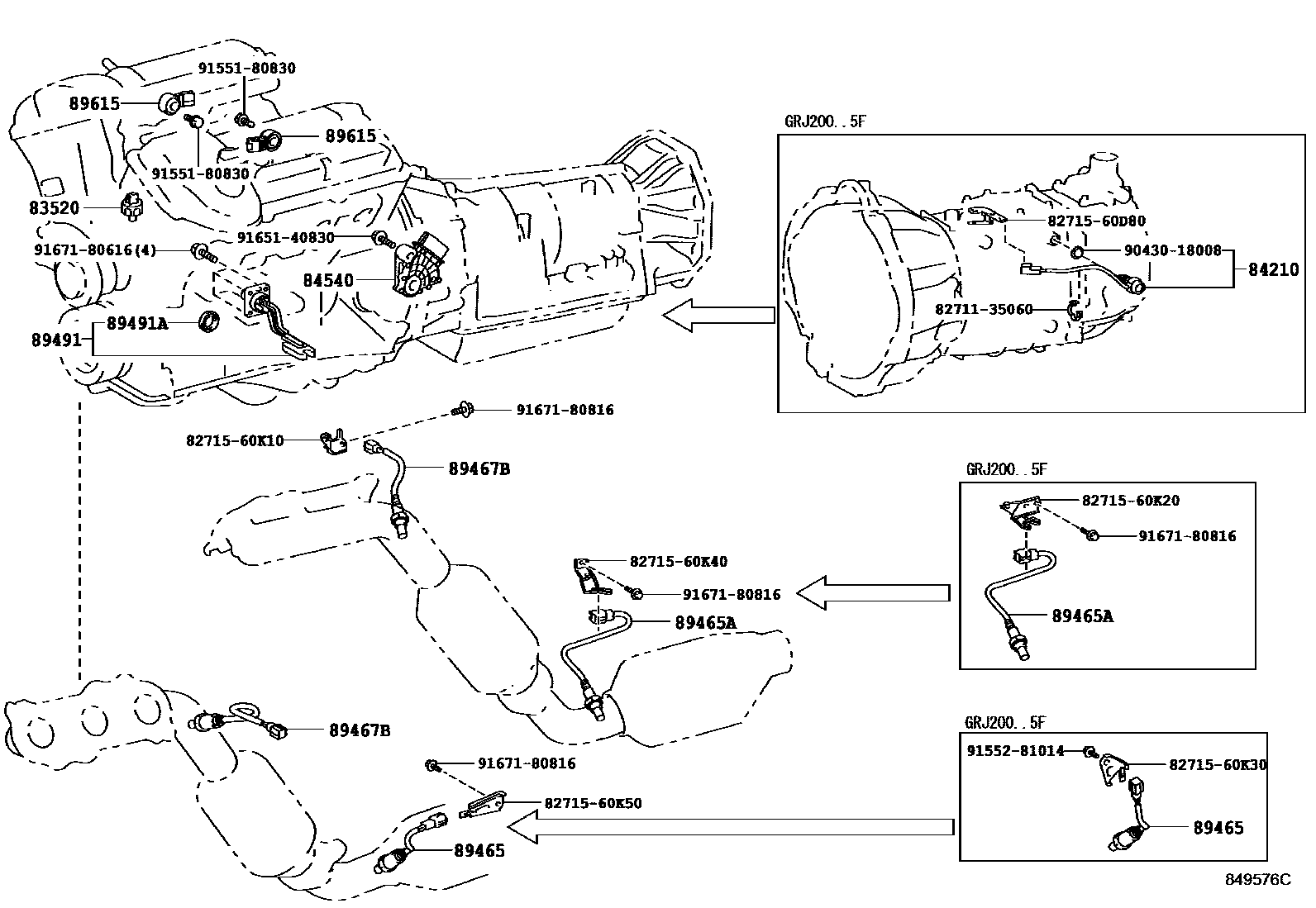

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM RELAY BLOCK 0007 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK 0009 1COWL 0010 1COWL 0011 1COWL 0012 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0014 1INSTRUMENT PANEL 1/2 0015 1INSTRUMENT PANEL 2/2 0016 1STEERING 0017 1STEERING 0018 1SEAT 0019 1DOOR & ROOF 0020 1DOOR & ROOF 0021 1FLOOR & BACK DOOR 0022 1FLOOR & BACK DOOR

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60050iUZJ200200712-201202

main83520-60051iGRJ200,URJ202201508-201601

main83520-60060iGRJ200..5FC200712-201202

84210SWITCH ASSY, BACK-UP LAMP

main84210-60030iGRJ200..5F200712-200811

84540SWITCH ASSY, NEUTRAL START

main84540-04010iGRJ200201310-201601

(L)

main84540-60050iURJ202201601-201612

main84540-71010iGRJ200201601-201612

(J)

89465SENSOR, OXYGEN

main89465-60330iGRJ200..5F200712-200811

main89465-60370iUZJ200200712-201202

main89465-60450iGRJ200201601

89465ASENSOR, OXYGEN NO.2

main89465-36040iURJ202201202-201601

main89465-60350iGRJ200..5FC200712-201202

main89465-60390iGRJ200201202-201601

89467BSENSOR, AIR FUEL RATIO

main89467-0G010×2iGRJ200201601

main89467-0G020×2iURJ202201202-201601

main89467-35110×2iGRJ200..5F200712-200811

89491SENSOR, ENGINE OIL LEVEL

main89491-60090iGRJ200..5F200712-200811

main89491-60110iUZJ200200712-201202

main89491-60140iGRJ200201601

main89491-60160iURJ202201601

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGRJ200..5F200712-200811

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGRJ200..5F200712-200811

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

8271560D80BRACKET,WIRING HARNESS CLAMP

main82715-60D80

8271560K10BRACKET,WIRING HARNESS CLAMP

main82715-60K10

8271560K20BRACKET,WIRING HARNESS CLAMP

main82715-60K20

8271560K30BRACKET,WIRING HARNESS CLAMP

main82715-60K30

8271560K40BRACKET,WIRING HARNESS CLAMP

main82715-60K40

8271560K50BRACKET,WIRING HARNESS CLAMP

main82715-60K50

9043018008

main90430-18008

9155180830

main91551-80830

9155281014

main91552-81014

9165140830

main91651-40830

9167180616

main91671-80616

9167180816

main91671-80816

22 parts on this diagram · 22 diagrams in section
