WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE 0005 1ENGINE 0006 1ENGINE 0007 1ENGINE 0008 1INSTRUMENT PANEL & CONSOLE BO0009 1INSTRUMENT PANEL & CONSOLE BO0010 1INSTRUMENT PANEL & CONSOLE BO0011 1DOOR 0012 1FLOOR & ROOF 0013 1SEAT 0014 1CLAMP & BRACKET 0015 1CLAMP & BRACKET 0016 1CABLE BOND 0017 1CABLE BOND 0018 1CONNECTOR 1/4 0019 1CONNECTOR 2/4 0020 1CONNECTOR 3/4 0021 1CONNECTOR 4/4

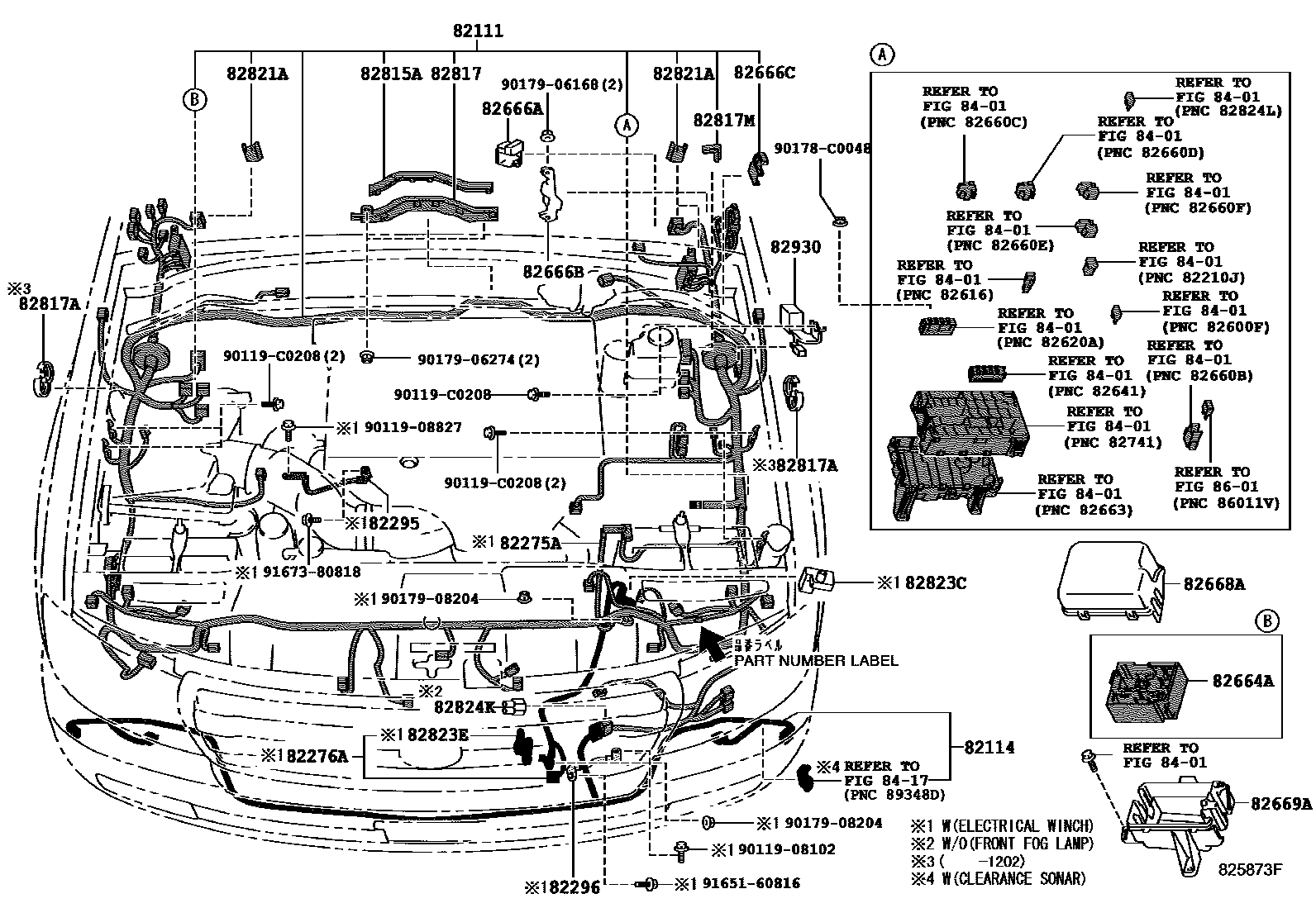

82111WIRE, ENGINE ROOM MAIN

main82111-0G050iGRJ200..5F200712-200811

main82111-0G051iGRJ200200911-201202

main82111-0G060iUZJ200200712-200911

main82111-0G061iUZJ200200911-201202

main82111-0G100iGRJ200201202-201302

main82111-0G101iGRJ200201302-201601

main82111-0G110iURJ202201202-201302

main82111-0G111iURJ202201302-201601

main82111-0G240iURJ202201601

main82111-0G250iGRJ200201601

82114WIRE, ENGINE ROOM, NO.4

main82114-0G030iUZJ200..VX200712-201202

main82114-0G050iURJ202201202-201601

main82114-0G060iGRJ200..GXR; GRJ200..VX,VXR201601

FRONT FOG LAMP-WITH(LED)

main82114-0G070iURJ202201601

main82114-0G020iGRJ200200911-201202

VX(SPECIAL) PACKAGE

main82114-0G040iGRJ200201202-201601

VX PACKAGE

82275ACABLE, BATTERY TO MAGNET SWITCH

main82275-60150iGRJ200,UZJ200..5FC..GX200712-201202

82276ACABLE, MAGNET SWITCH TO WINCH

main82276-60120iGRJ200..5F200712-200811

82295WIRE, WINCH EARTH

main82295-60070iGRJ200..5F200712-200811

main82295-60080iUZJ200..GX200712-201202

82296WIRE, WINCH EARTH, NO.2

main82296-60030iGRJ200..5F200712-200811

82664ABLOCK, CONNECTOR HOLDER

main82664-60020iGRJ200..5F200712-200811

82666AHOLDER, CONNECTOR NO.2

main82666-60680iGRJ200..5F200712-200811

82666BHOLDER, CONNECTOR NO.3

main82666-60690iGRJ200..5F200712-200811

82666CHOLDER, CONNECTOR NO.4

main82666-60600iGRJ200..5F200712-200811

82668ACOVER, CONNECTOR HOLDER BLOCK, UPPER

main82668-0C010iGRJ200..5F200712-200811

82669ACOVER, CONNECTOR HOLDER BLOCK, LOWER

main82669-60020iGRJ200,UZJ200..5FC200712-201202

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-60410iGRJ200..5F200712-200811

main82815-60490iGRJ200,URJ202201302-201601

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-60F70iGRJ200..5F200712-200811

main82817-60T10iGRJ200,URJ202201601

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-32840×2iGRJ200..5F200712-200811

main82817-60T30iGRJ200,URJ202201601

82817MPROTECTOR, WIRING HARNESS, NO.12

main82817-12860iGRJ200,URJ202201202-201601

82821ACOVER, CONNECTOR

main82821-60210×3iGRJ200..5F200712-200811

82823CCAP, TERMINAL, NO.4

main82823-60020iGRJ200..5F200712-200811

82823ECAP, TERMINAL, NO.5

main82823-30080iGRJ200,UZJ200..5FC..GX; GRJ200..5FC200712-201202

VX(SPECIAL) PACKAGE

82824KCONNECTOR, WIRING HARNESS

main82824-60760iGRJ200..5F200712-200811

WITH(ELECTRICAL WINCH)

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-60010iGRJ200..5F200712-200811

main82930-60020iGRJ200,URJ202201310-201601

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

9011908102

main90119-08102

9011908827

main90119-08827

90119C0208

main90119-C0208

90178C0048

main90178-C0048

9017906168

main90179-06168

9017906274

main90179-06274

9017908204

main90179-08204

9165160816

main91651-60816

9167380818

main91673-80818

33 parts on this diagram · 21 diagrams in section
