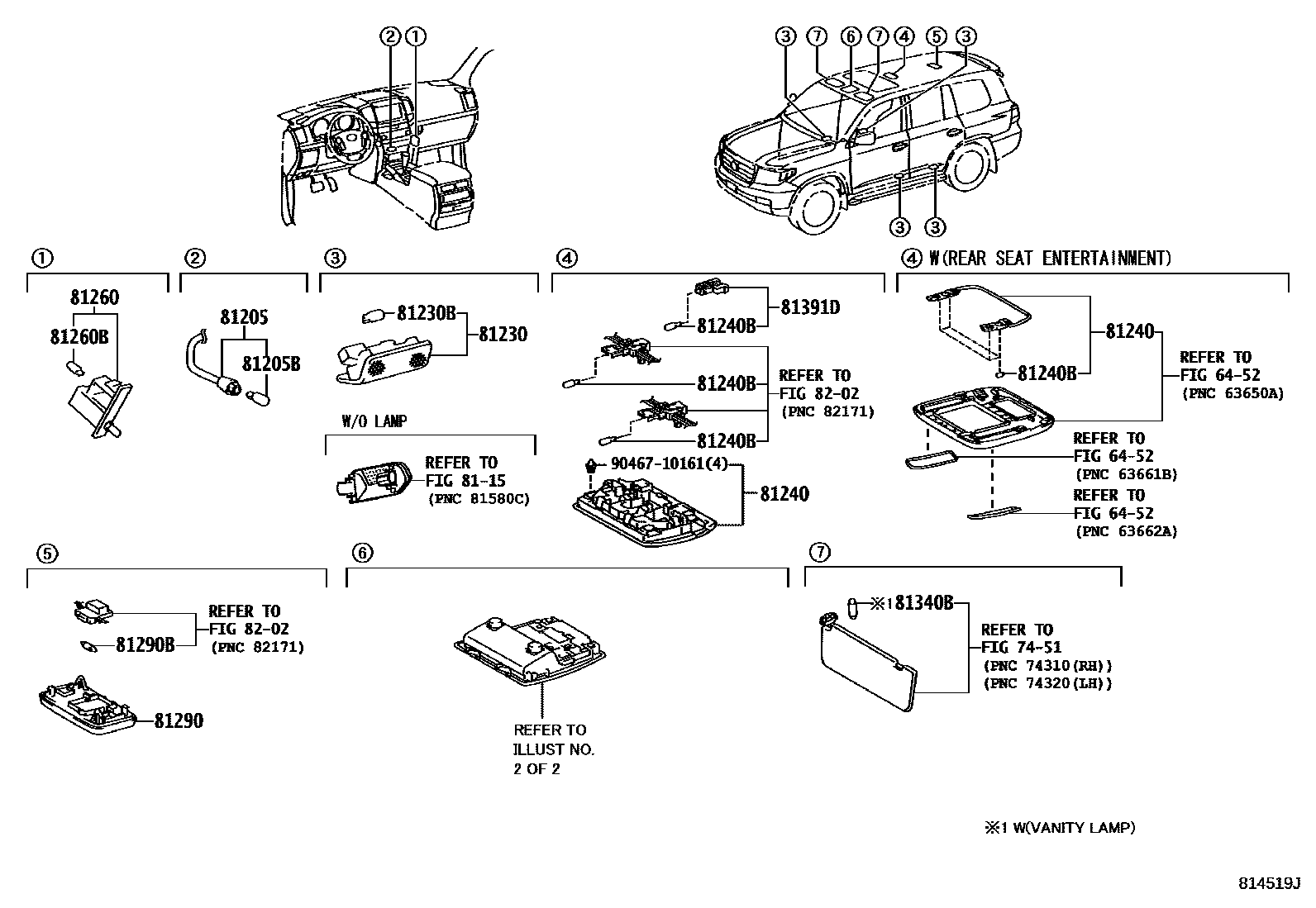

INTERIOR LAMP

0001 1 0002 1 0003 1 0004 1

6452ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-52

7451ARMREST & VISOR

→ Go to FIG 74-51

8115REFLEX REFLECTOR

→ Go to FIG 81-15

81205LAMP SUB-ASSY, ASH RECEPTACLE

main81850-60570iGRJ200..5F200712-200811

81205BBULB, ASH RECEPTACLE LAMP

main90981-11018iGRJ200..5F200712-200811

12V 1.2W W/O SOCKET

81230LAMP ASSY, COURTESY

main81230-48020×4iUZJ200..VX200712-201202

main81230-50070×4iURJ202..VXR201601

main81230-30200×4iURJ202201308-201601

VX(SPECIAL) PACKAGE

81230BBULB(FOR COURTESY LAMP)

main90981-12010×4iUZJ200..VX200712-201202

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81360-60020-A0iGRJ200,URJ202201202-201601

SHELL,TRIM0#

main81360-60020-A1iGRJ200;URJ202..VX201601-201612

FLAXEN,TRIM0#

main81360-60020-E0supersedes 81206-60060-E0iGRJ200,UZJ200..5FC..GX200712-201202

SAND BEIGE,TRIM4#

main81360-60090-A0iURJ202..VXR201601-201612

FLAXEN,TRIM0#

main81206-60060-A0iURJ202201202-201601

VX(SPECIAL) PACKAGE,SHELL,TRIM0#

81240BBULB, ROOM LAMP, NO.1

main90981-11062×3iGRJ200..5F200712-200811

12V 8W

81260LAMP ASSY, GLOVE BOX

main81080-58100iGRJ200,URJ202201601

main81260-33030iGRJ200,URJ202201202-201511

81260BBULB(FOR GLOVE BOX)

main90981-11018iGRJ200..5F200712-200811

12V 1.2W W/O SOCKET

81290LAMP ASSY, ROOM, NO.3

main81240-60060-A4iGRJ200,URJ202201202-201601

SHELL,TRIM0#

main81240-60060-A5iGRJ200;URJ202..VX201601-201612

FLAXEN,TRIM0#

main81240-60060-E0iGRJ200..5F200712-200811

SAND BEIGE,TRIM4#

main81360-60080-A0iURJ202..VXR201601-201612

FLAXEN,TRIM0#

81290BBULB, ROOM LAMP, NO.3

main90981-14011iGRJ200..5F200712-200811

12V 8W

81340BBULB (FOR VANITY LAMP)

main90981-14014×2iGRJ200..5F200712-200811

12V 2W

81391DHOLDER, LAMP BULB

main81391-30010iGRJ200..5F200712-200811

8202WIRING & CLAMP

→ Go to FIG 82-02

9046710161

main90467-10161

17 parts on this diagram · 4 diagrams in section
