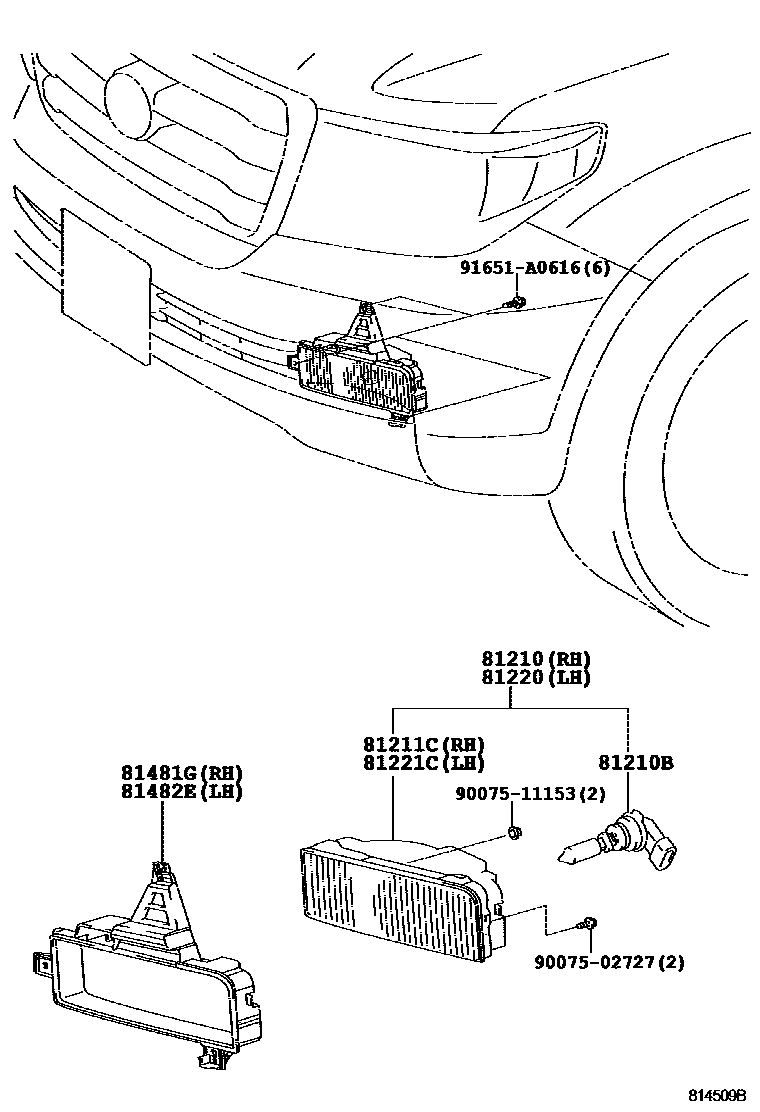

FOG LAMP

0001 1 0002 1 0003 1

81210LAMP ASSY, FOG

main81210-60220iUZJ200..VX200712-200807

main81210-60221iUZJ200..VX200808-201202

81210BBULB, FOG LAMP

main90981-13047iUZJ200..VX200712-201202

12V 51W,HALOGEN

main90981-13090iURJ202201202-201601

12V 19W

main90981-13090iURJ202201202-201601

12V 19W,VX PACKAGE

81211CLAMP UNIT, FOG LAMP, RH

main81211-60220iUZJ200..VX200712-200808

main81211-60221iUZJ200..VX200808-201202

81220LAMP ASSY, FOG, LH

main81220-48050iGRJ200..GXR201601-201608

FRONT FOG LAMP-WITH(LED)

main81220-48051iGRJ200,URJ202..VX,VXR201609-201612

FRONT FOG LAMP-WITH(LED)

main81220-60100iURJ202201202-201410

VX PACKAGE

main81220-60120iURJ202201411-201601

VX PACKAGE

main81220-60140iUZJ200..VX200712-200807

main81220-60141iUZJ200..VX200808-201202

81221CLAMP UNIT, FOG LAMP, LH

main81221-60140iUZJ200..VX200712-200808

main81221-60141iUZJ200..VX200808-201202

81481GBRACKET, FOG LAMP, RH

main81481-60070iUZJ200..VX200712-200807

main81481-60071iUZJ200..VX200808-200909

main81481-60072iUZJ200..VX200909-201202

81482EBRACKET, FOG LAMP, LH

main81482-60060iUZJ200..VX200712-200807

main81482-60061iUZJ200..VX200808-200909

main81482-60062iUZJ200..VX200909-201202

9007502727

main90075-02727

9007511153

main90075-11153

91651A0616

main91651-A0616

10 parts on this diagram · 3 diagrams in section
