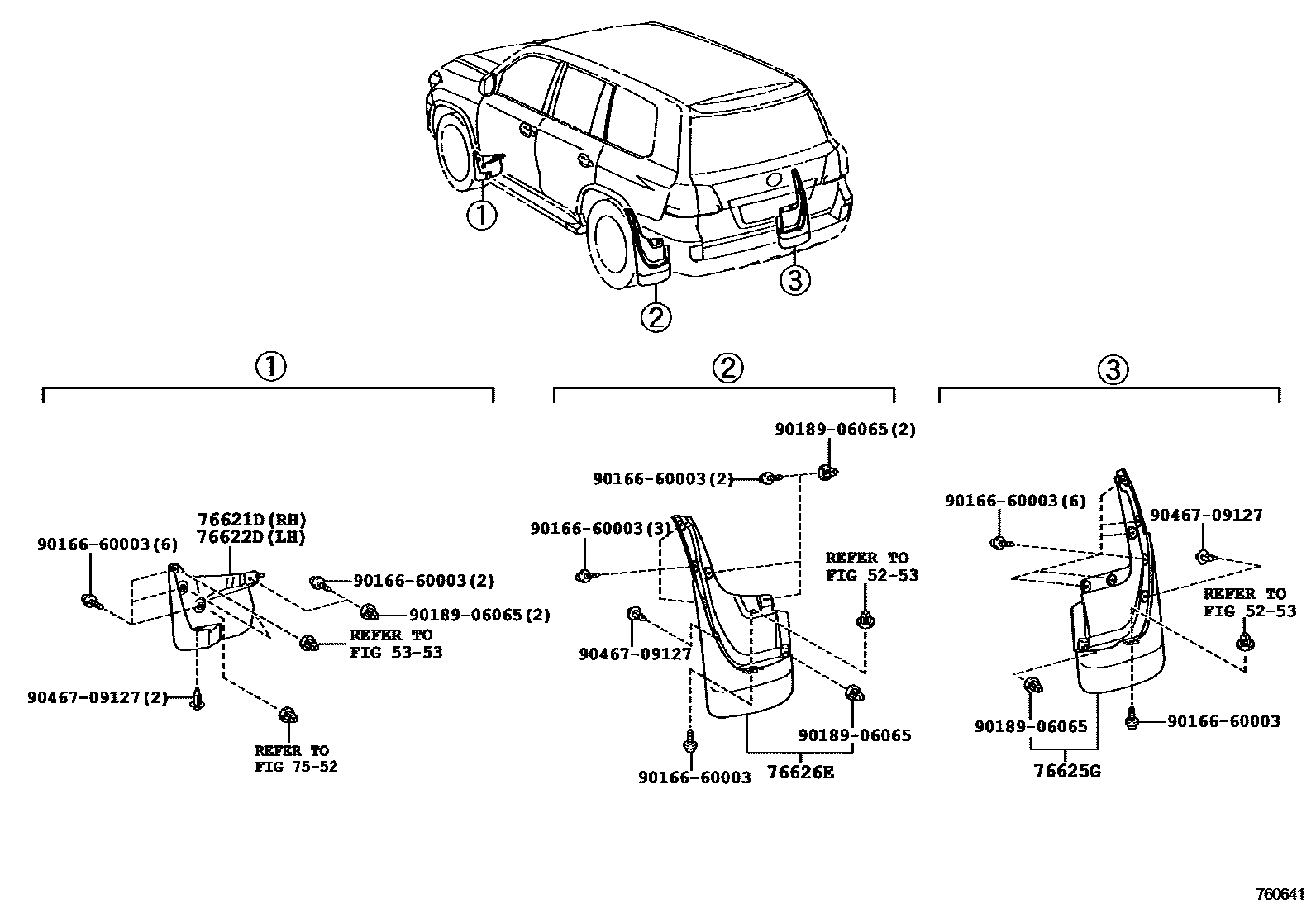

SPOILER & SIDE MUDGUARD

0001 1MUD GUARD 0002 1MUD GUARD 0003 1REAR SPOILER

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

7552MOULDING

→ Go to FIG 75-52

76621DMUDGUARD, FRONT FENDER, RH

main76621-60150iGRJ200..5F200712-200811

76622DMUDGUARD, FRONT FENDER, LH

main76622-60120iGRJ200..5F200712-200811

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-60240iGRJ200..5F200712-200811

main76625-60350iGRJ200,URJ202201601

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-60240iGRJ200..5F200712-200811

main76626-60350iGRJ200,URJ202201601

9016660003

main90166-60003

9018906065

main90189-06065

9046709127

main90467-09127

10 parts on this diagram · 3 diagrams in section
