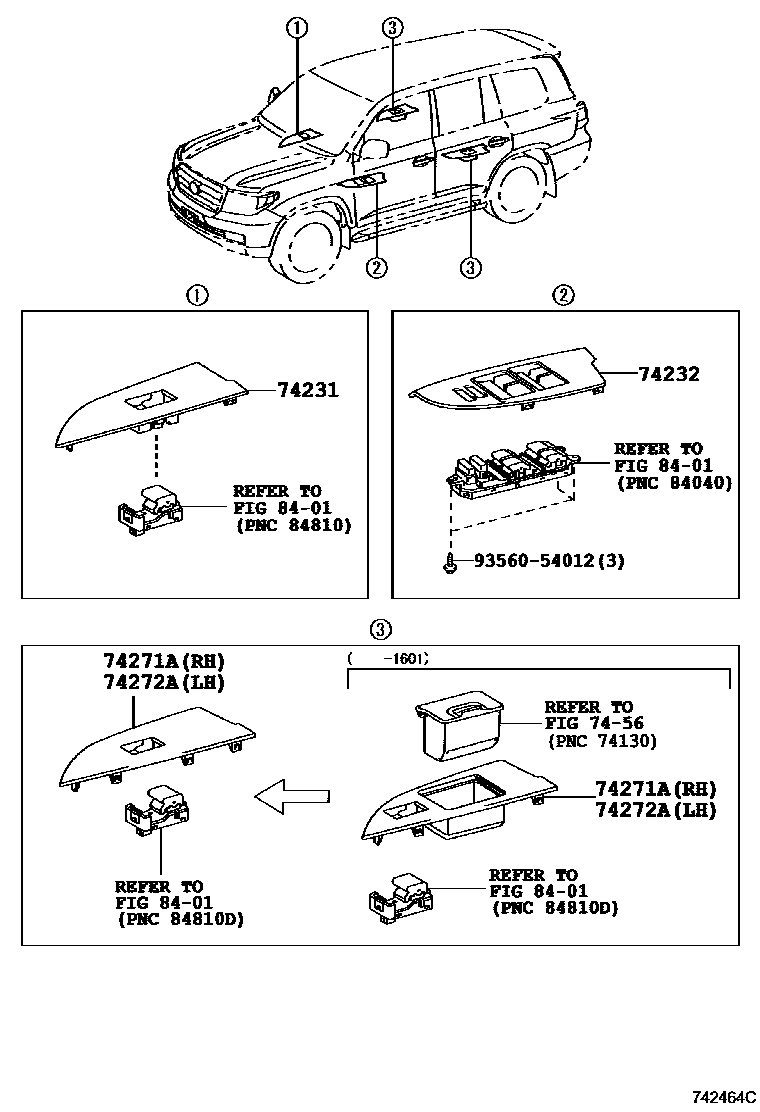

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP 0003 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-60530-C0iGRJ200201202-201601

BLACK,TRIM0#

main74231-60550iUZJ200..VX200712-201202

SILVER

main74231-60720iGRJ200; URJ202201202-201601

SILVER; VX PACKAGE,SILVER

main74231-60A30iGRJ200,URJ202201601

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-60510-C0iGRJ200..5F200712-200811

BLACK,TRIM4#

main74232-60530iUZJ200..VX200712-201202

SILVER

main74232-60690iGRJ200; URJ202201202-201601

SILVER; VX PACKAGE,SILVER

main74232-60820iGRJ200,URJ202201601

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-60180-C0iGRJ200201202-201601

BLACK,TRIM0#

main74271-60190iUZJ200..VX200712-201202

SILVER

main74271-60290iGRJ200; URJ202201202-201601

SILVER; VX PACKAGE,SILVER

main74271-60420iGRJ200,URJ202201601

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-60180-C0iGRJ200..5F200712-200811

BLACK,TRIM4#

main74272-60190iUZJ200..VX200712-201202

SILVER

main74272-60290iGRJ200; URJ202201202-201601

SILVER; VX PACKAGE,SILVER

main74272-60420iGRJ200,URJ202201601

7456ASH RECEPTACLE

→ Go to FIG 74-56

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9356054012

main93560-54012

7 parts on this diagram · 3 diagrams in section
